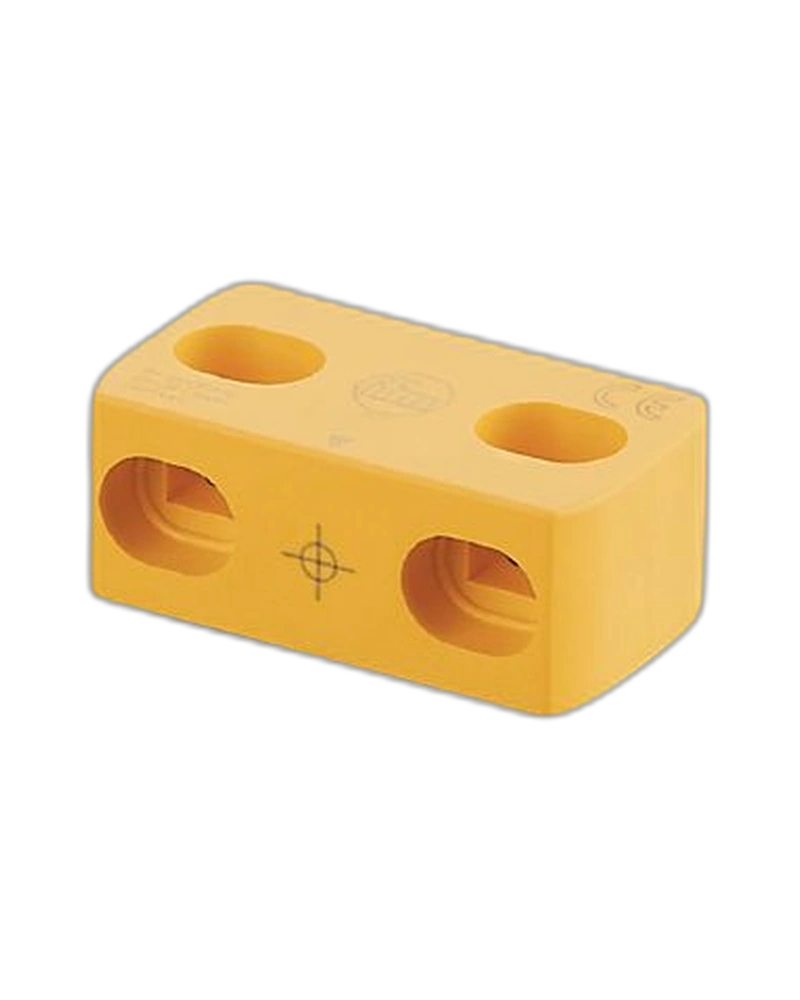

The IFM E1102S is an RFID-coded target designed for compatible MN7 RFID safety sensors. It provides a high coding level for controlled actuator recognition. The target can be actuated from different directions, improving installation flexibility. Its design can be concealed behind stainless steel for enhanced tamper prevention. The component is suitable for machine safety and access monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E1102S uses RFID-based coding for compatible MN7 safety sensor systems. Its high coding level helps distinguish the intended actuator from other objects. Multi-direction actuation provides additional flexibility during machine guard design. The target can be positioned behind stainless steel where required. This design supports applications requiring controlled and reliable safety sensor recognition.
The target uses PA construction for a lightweight mechanical design. It measures approximately 45 × 18 × 25 mm and weighs around 40.5 g. The recommended tightening torque is 0.8–2 Nm. Its compact shape allows installation on safety guards and access doors. The target is supplied as one unit per pack.
The E1102S is intended for compatible MN7 RFID-coded safety sensor systems. It can be used for monitoring protective doors and machine guards. The coded actuator arrangement helps provide controlled sensor recognition. Its installation flexibility makes it suitable for different machine layouts. Correct positioning with the compatible sensor is essential for safe operation.
RFID-coded target
Designed for MN7 safety sensors
High coding level
Multi-direction actuation
PA material
45 × 18 × 25 mm dimensions
40.5 g weight
0.8–2 Nm tightening torque
Tamper prevention capability
Can be concealed behind stainless steel
Compact construction
Safety technology accessory
One-piece pack
Defined target
Industrial machine safety
Safety doors
Machine guards
Access protection
Industrial machinery
Safety interlocks
Production equipment
Automation systems
Protective enclosure monitoring
Machine access monitoring
Safety sensor systems
The high coding level provides controlled actuator identification for compatible safety sensors. Multi-direction actuation allows more flexible mechanical installation. The compact PA body is easy to integrate with machine guarding. Concealment behind stainless steel can help improve tamper resistance. The E1102S is designed for reliable safety-related actuator applications.
Install the target according to the MN7 sensor system requirements. Maintain the recommended tightening torque. Ensure the target remains correctly aligned with the sensor. Inspect the target and mounting points during scheduled machine maintenance. Do not use damaged safety components.
| Specification | E1102S Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E1102S |
| Product type | RFID-coded target |
| Product name | DEFINED TARGET MN7xxS - CODED |
| Technology | RFID coding |
| Compatible sensor | MN7 |
| Application | RFID-coded safety sensor |
| Coding level | High |
| Actuation direction | Different directions |
| Material | PA |
| Weight | 40.5 g |
| Dimensions | 45 × 18 × 25 mm |
| Tightening torque | 0.8–2 Nm |
| Pack quantity | 1 |
| Target type | Coded actuator |
| Safety application | Machine guarding |
| Tamper prevention | Concealable behind stainless steel |
| Sensor technology | RFID |
| Mounting purpose | Safety sensor actuation |
| Mechanical design | Compact target |
| Installation | Safety guard |
| Access monitoring | Supported |
| Door monitoring | Supported |
| Industrial use | Machine safety |
| Material type | Polyamide |
| Product family | Safety accessories |
| Component function | Sensor actuator |
| Application category | Safety technology |
| Recognition method | RFID |
