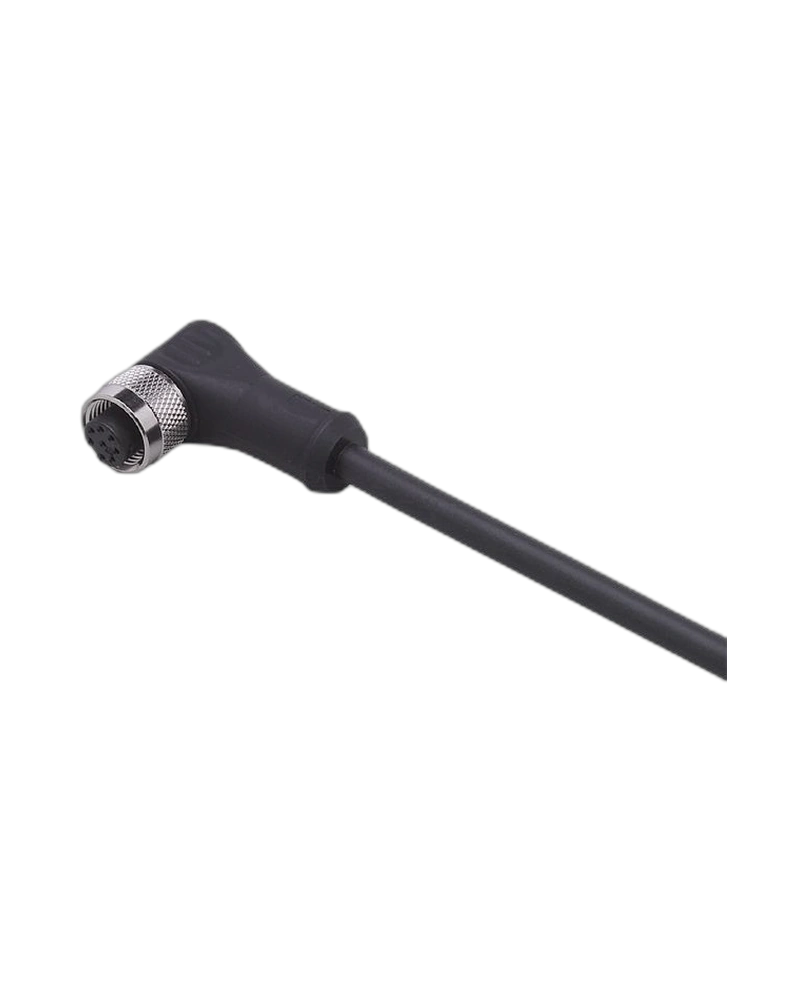

The IFM E10980 is an angled M12 connecting cable designed for industrial sensor connections. It features a 10 m black PUR cable with a durable TPU moulded connector body. The angled connector helps simplify cable routing where straight connectors have limited space. It supports operation below 60 V AC/DC and is protected to IP68. This model is suitable for reliable sensor connections in industrial automation and machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The angled M12 configuration is useful for installations where cable clearance is limited. It allows the cable to leave the connector at an angle rather than directly forward. The TPU moulded body protects the connection area against normal mechanical stress. The nickel-plated die-cast zinc locking nut provides secure coupling. The design is suitable for compact machine layouts and restricted installation spaces.
The E10980 uses a 10 m PUR cable with six 0.34 mm² conductors. The cable is black and designed for industrial sensor wiring. The connector supports AC/DC operation below 60 V. IP68 protection helps protect the connection from water and environmental contamination. The cable construction supports dependable signal transmission in automation systems.
The cable can connect compatible M12 sensors to control and automation equipment. Its 10 m length supports installations with extended distances between sensors and controllers. The angled connector helps improve cable routing around machine structures. It is suitable for factory automation and industrial production equipment. Correct connector engagement is important for maintaining reliable operation and protection.
Angled M12 socket
10 m PUR cable
AC/DC electrical design
Operating voltage below 60 V AC/DC
IP68 protection
6 × 0.34 mm² cable
TPU connector body
Nickel-plated die-cast zinc nut
Black cable sheath
Industrial sensor connection
Extended cable length
Compact angled configuration
Reliable cable routing
Suitable for automation systems
Secure connector interface
Factory automation
Industrial sensor connections
Machine control
Packaging equipment
Material handling
Process automation
Machine monitoring
Production equipment
Control panels
Sensor networks
Industrial machinery
Automation cabinets
The angled connector can improve cable routing in confined machine installations. The 10 m cable provides extended reach without requiring immediate cable extension. PUR insulation supports industrial use and repeated routing. IP68 protection helps maintain connection reliability in wet or contaminated environments. The robust connector construction supports long-term industrial installation.
Keep the cable properly supported during installation. Avoid sharp bends immediately behind the angled connector. Check the coupling nut for secure engagement. Inspect the PUR sheath periodically for cuts or abrasion. Keep the connector interface clean during maintenance.
| Specification | E10980 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E10980 |
| Product type | Connecting cable with socket |
| Product code | ADOAH080MSS0010A06 |
| Connector | M12 |
| Connector orientation | Angled |
| Coding | A-coded |
| Electrical design | AC/DC |
| Operating voltage | <60 V AC/DC |
| Cable length | 10 m |
| Cable material | PUR |
| Cable colour | Black |
| Number of cores | 6 |
| Conductor size | 0.34 mm² |
| Conductor construction | 42 × Ø0.1 mm |
| Connector body | TPU |
| Coupling nut | Die-cast zinc, nickel-plated |
| Protection | IP68 |
| Ambient temperature | -25 to +85 °C |
| Dimensions | 38.5 × 14.5 × 27.5 mm |
| Weight | Approx. 479 g |
| Pack quantity | 1 |
| Sensor interface | M12 |
| Cable connection | PUR cable |
| Cable application | Sensor connection |
| Sheath colour | Black |
| Connector body material | TPU |
| Locking material | Nickel-plated die-cast zinc |
| Industrial use | Automation and sensor systems |
