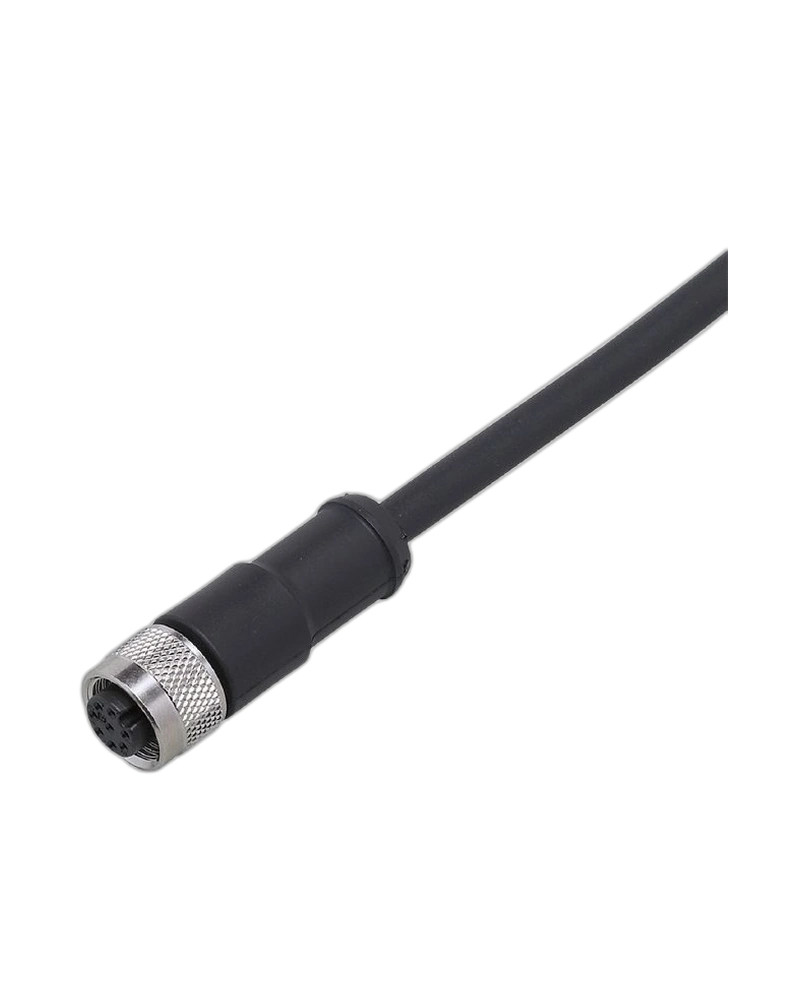

The IFM E10977 is a straight M12 connecting cable designed for industrial sensor connections. It provides a 10 m PUR cable for installations requiring extended cable reach. The connector supports AC/DC operation at up to 60 V with a 2 A current rating. Its IP68 protection supports reliable use in demanding industrial environments. The robust TPU connector and nickel-plated coupling nut provide secure mechanical connection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10977 features a straight M12 socket configuration for compatible IFM sensors. Its 10 m PUR cable provides extended installation flexibility for machines and production systems. The TPU moulded connector body offers mechanical protection around the connection area. The die-cast zinc, nickel-plated nut provides secure locking. The black cable sheath provides a professional and durable industrial installation solution.
The cable supports AC/DC operation up to 60 V. A 2 A current rating makes it suitable for compatible sensor and automation circuits. Six 0.34 mm² conductors are provided within the PUR cable. The cable is designed for dependable signal and power connection between industrial sensors and control equipment. IP68 protection provides additional resistance against water and environmental contamination.
The 10 m cable length is suitable where sensors are installed at considerable distances from controllers. The straight connector arrangement supports conventional cable routing. It can be used in automated machinery, sensor networks and industrial control systems. Proper cable support should be used to prevent unnecessary mechanical stress. The M12 connector should be tightened correctly to maintain environmental protection.
10 m cable length
Straight M12 socket
AC/DC electrical design
60 V AC/DC operating voltage
2 A current rating
IP68 protection
PUR cable
TPU connector body
Nickel-plated die-cast zinc nut
6 × 0.34 mm² conductors
Black sheath
Industrial sensor connection
Secure connector locking
Extended cable reach
Suitable for automation applications
Industrial automation
Sensor wiring
Machine automation
Position sensing systems
Process equipment
Control cabinet connections
Packaging machines
Material handling equipment
Production lines
Machine monitoring
Factory control systems
Sensor networks
The extended 10 m cable length reduces the need for additional cable extensions in many installations. Its PUR construction provides a practical balance between flexibility and industrial durability. The M12 connection supports straightforward integration with compatible sensor equipment. IP68 protection improves reliability in moisture-prone industrial environments. The rugged connector construction supports repeated installation and normal machine operation.
Route the cable away from moving components and sharp mechanical edges. Avoid excessive pulling force on the connector. Inspect the cable sheath periodically for damage or abrasion. Ensure the M12 coupling nut is properly secured. Replace damaged cables rather than operating with exposed conductors.
| Specification | E10977 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E10977 |
| Product type | Connecting cable with socket |
| Product code | ADOGH080MSS0010A06 |
| Connector | M12 socket |
| Connector design | Straight |
| Electrical design | AC/DC |
| Operating voltage | 60 V AC/DC |
| Current rating | 2 A |
| Cable length | 10 m |
| Cable type | PUR |
| Cable colour | Black |
| Number of cores | 6 |
| Conductor size | 0.34 mm² |
| Conductor construction | 42 × Ø0.1 mm |
| Cable diameter | Ø6 mm |
| Connector body | TPU |
| Coupling nut | Die-cast zinc, nickel-plated |
| Protection | IP68 |
| Ambient temperature | -25 to +85 °C |
| Sensor connection | M12 |
| Connector orientation | Straight |
| Weight | 0.468 kg |
| Pack quantity | 1 |
| Core colour | Brown |
| Core colour | Blue |
| Core colour | Green |
| Core colour | Grey |
| Application | Industrial sensor connection |
