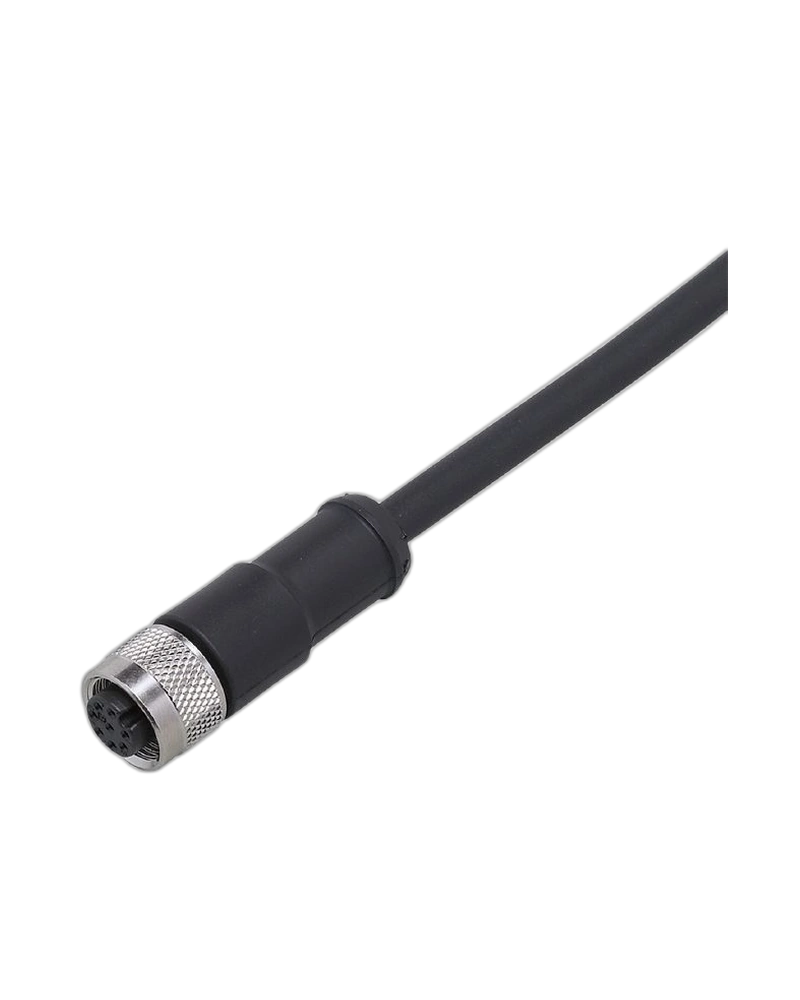

The IFM E10976 is a straight connecting cable with an M12 socket designed for reliable sensor connections. It uses a 5 m PUR cable with a robust TPU moulded body. The connector supports AC/DC operation up to 60 V with a current rating of 2 A. Its IP68 protection makes it suitable for demanding industrial environments. The cable provides a secure and durable connection between sensors and control equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10976 uses a straight M12 connector arrangement for convenient sensor wiring. The moulded body is manufactured from TPU for mechanical durability and reliable insulation. A nickel-plated die-cast zinc nut provides secure connector locking during operation. The 5 m PUR cable offers flexibility for industrial routing and installation. The cable construction is designed for dependable use around machinery and automation equipment.
The cable is designed for sensors using an M12 connector. It supports AC/DC operating voltages up to 60 V and a current rating of 2 A. The six-core cable uses 0.34 mm² conductors for sensor signal transmission. The black PUR sheath provides suitable protection for industrial cable routing. IP68 protection helps prevent moisture and contamination from affecting the connection.
The E10976 can be installed between compatible M12 sensors and automation equipment. Its 5 m cable length provides additional flexibility where sensors are positioned away from control cabinets. The straight connector design is useful where cable routing is direct and unobstructed. Its rugged construction supports installation in industrial machinery and production systems. Proper connector tightening should be used to maintain the specified protection level.
Straight M12 socket design
5 m PUR connecting cable
AC/DC electrical design
Operating voltage up to 60 V AC/DC
Current rating 2 A
IP68 protection
TPU moulded connector body
Nickel-plated die-cast zinc coupling nut
6 × 0.34 mm² cable construction
Black cable sheath
Reliable industrial sensor connection
Suitable for automation equipment
Compact connector construction
Secure mechanical locking
Suitable for demanding industrial environments
Industrial sensor wiring
Factory automation systems
Machine control panels
Position sensor connections
Process automation equipment
Production machinery
Industrial control cabinets
Sensor-to-controller connections
Machine monitoring systems
Automated production lines
Packaging machinery
Material handling equipment
The E10976 provides a practical connection solution for industrial sensors where cable durability and environmental protection are important. Its PUR cable construction supports repeated routing and normal industrial handling. The IP68-rated connection helps maintain reliable operation in environments where moisture and contamination may be present. The M12 interface simplifies integration with compatible IFM sensors. Its 5 m length gives installers additional freedom when positioning equipment.
Inspect the connector and cable before installation for physical damage. Make sure the M12 connection is correctly aligned before tightening. Avoid excessive bending close to the connector body. Keep the cable away from sharp edges, excessive heat and moving mechanical components. Periodically check the connector and cable routing as part of normal machine maintenance.
| Specification | E10976 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E10976 |
| Product type | Connecting cable with socket |
| Product code | ADOGH080MSS0005A06 |
| Connector type | M12 socket |
| Connector orientation | Straight |
| Sensor connection | M12 |
| Electrical design | AC/DC |
| Operating voltage | 60 V AC/DC |
| Current rating | 2 A |
| Cable length | 5 m |
| Cable material | PUR |
| Cable colour | Black |
| Cable cores | 6 |
| Conductor size | 0.34 mm² |
| Conductor construction | 42 × Ø0.1 mm |
| Cable diameter | Ø6 mm |
| Connector body | TPU |
| Coupling nut | Die-cast zinc, nickel-plated |
| Protection rating | IP68 |
| Ambient temperature | -25 to +85 °C |
| Design | Straight |
| Weight | 0.243 kg |
| Pack quantity | 1 piece |
| Core colour | Brown |
| Core colour | Blue |
| Core colour | Green |
| Core colour | Grey |
| Core colour | White / Yellow |
| Application | Industrial sensor connection |
