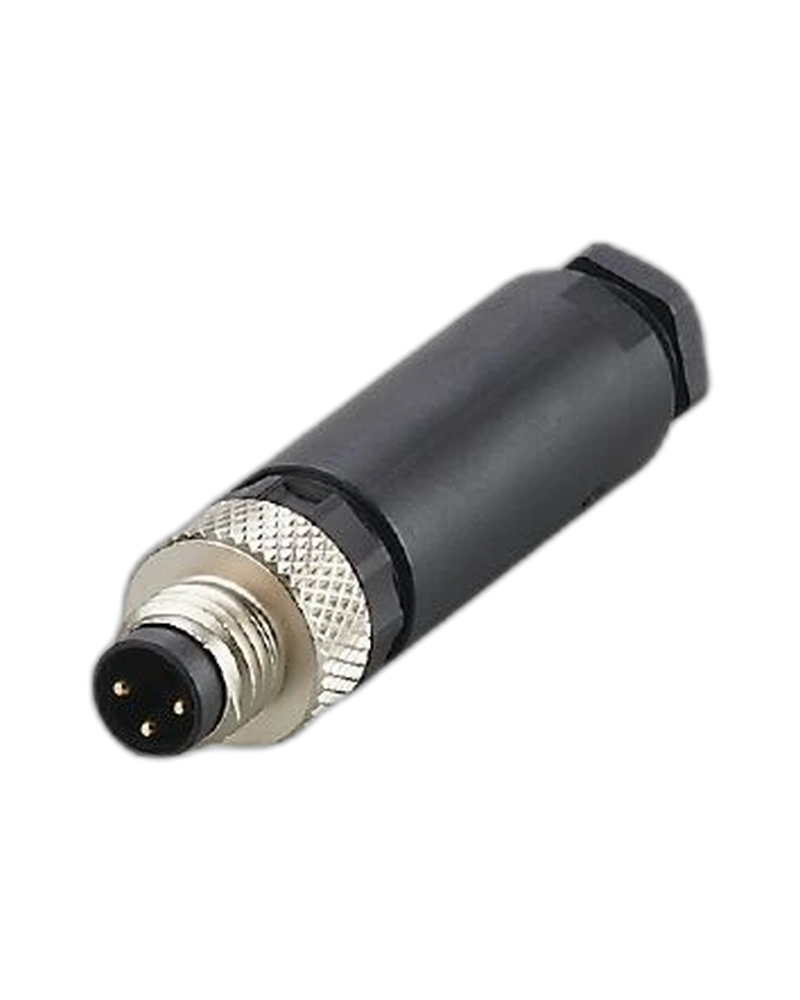

The E10919 is a wirable M8 plug designed for industrial automation and factory applications. It uses a straight M8 connector with A coding and three gold-plated contacts. The connector uses screw terminals supporting conductor sizes from 0.14 to 0.5 mm². Its PA moulded body and nickel-plated brass nut provide a compact industrial construction. The plug is rated for less than 60 V DC, with a maximum total current load of 4 A and IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The SSTGF030MSSFKPG uses one straight M8 connector with A coding. It has three gold-plated contacts for reliable electrical connection. The compact 12 × 12 × 50 mm form factor is suitable for space-constrained installations. The moulded body uses PA material. The locking component uses nickel-plated brass.
The plug uses screw terminals for field wiring. Compatible conductors from 0.14 to 0.5 mm² can be terminated. The product uses a PNP electrical design and is rated for less than 60 V DC. Maximum total current load is 4 A. Correct wiring and terminal assignment are required for dependable operation.
E10919 provides IP67 protection and an ambient temperature range of -25 to 85 °C. The compact PA body is suitable for industrial installations. Gold-plated contacts help support reliable electrical connection. The nickel-plated brass locking component provides mechanical retention. The connector is intended for industrial applications and factory automation.
Wirable plug
SSTGF030MSSFKPG
M8 connector
Straight design
A coding
3 gold-plated contacts
Screw terminals
0.14–0.5 mm² conductor range
PA moulded body
Nickel-plated brass nut
<60 V DC
4 A maximum total current
IP67 protection
-25 to 85 °C
Factory automation
Industrial sensors
Sensor wiring
Machine automation
Control equipment
Field wiring
Automation panels
Machine building
Maintenance
Replacement
Industrial equipment
Compact sensor installations
Prepare conductors within the supported terminal range. Connect each conductor to the correct screw terminal. Secure the connector housing and locking component. Check the M8 mating interface. Test the connection before commissioning.
Inspect screw terminals for looseness. Check gold-plated contacts and mating surfaces for contamination. Inspect the PA housing for damage. Check the locking nut for mechanical wear. Replace the plug if damage affects reliable connection.
| Specification | Details |
|---|---|
| Product Code | E10919 |
| Product Type | Wirable Plug |
| Product Name | SSTGF030MSSFKPG |
| Brand | IFM |
| Category | Sensor Accessories |
| Connector Type | M8 |
| Connector Quantity | 1 |
| Connector Design | Straight |
| Coding | A-coded |
| Number of Contacts | 3 |
| Contact Material | Gold-plated |
| Housing Material | PA |
| Locking Material | Brass |
| Locking Finish | Nickel-plated |
| Terminal Type | Screw terminals |
| Conductor Range | 0.14–0.5 mm² |
| Electrical Design | PNP |
| Operating Voltage | <60 V DC |
| Maximum Current | 4 A total |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to 85 °C |
| Dimensions | 12 × 12 × 50 mm |
| Application | Industrial/factory automation |
| Sensor Integration | Yes |
| Machine Integration | Yes |
| Field Wiring | Yes |
| Product Form | Wirable plug |
| Mechanical Retention | Locking nut |
| Pack Quantity | 1 piece |
