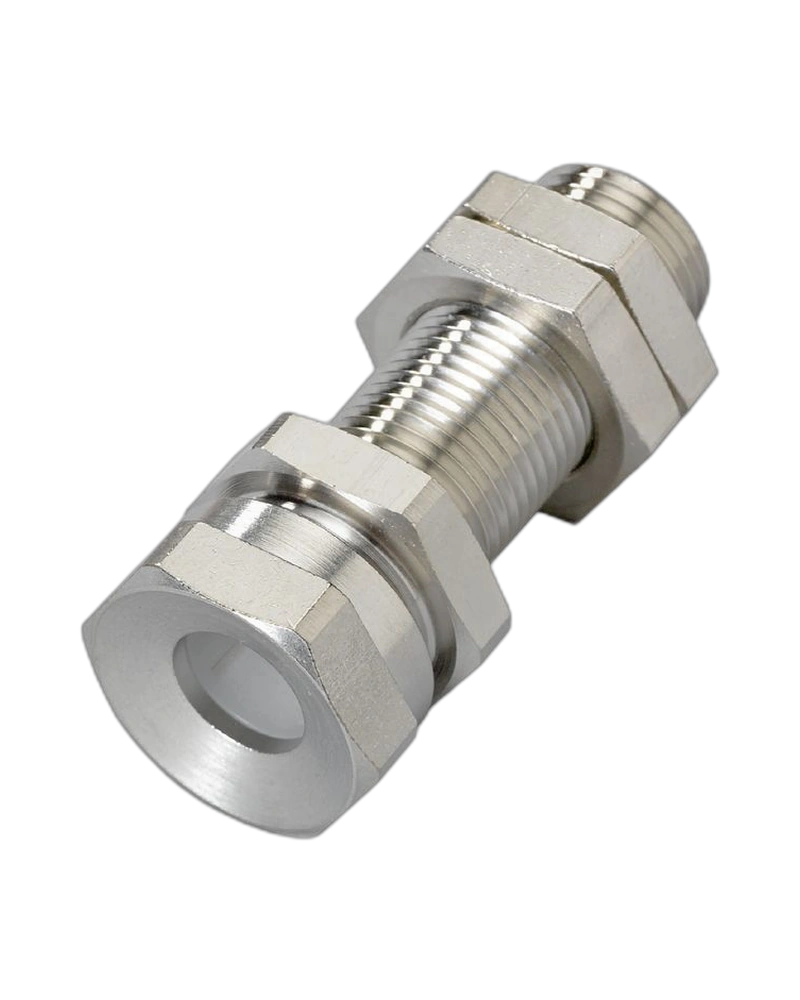

The IFM E10849 is a mounting sleeve with end stop designed for M8 cylindrical sensors. It features an M12 × 1 thread and an 8 mm internal diameter. The sleeve has a 42 mm overall length and provides a defined sensor installation reference. Its brass white-bronze-coated construction offers a durable mounting solution for industrial machinery. Two supplied nuts allow secure positioning and repeatable sensor replacement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The integrated end stop provides a defined installation position for the sensor. The sensing face is intended to be aligned to the right according to the installation instruction. This fixed reference helps maintain consistent sensor positioning. It can also simplify sensor replacement without repeated readjustment. The design is useful for production machines requiring stable sensor geometry.
The sleeve is made from brass with a white-bronze coating. Its M12 × 1 thread provides the external mounting interface. The 8 mm internal diameter is designed for M8 cylindrical sensors. Two brass white-bronze-coated nuts are supplied with the sleeve. The tightening torque is 5 Nm, with 10 Nm specified for the lock nuts.
The E10849 is designed for robust industrial mounting applications. Its 36.3 g weight keeps the mounting component compact. The 42 mm length provides a longer sleeve configuration than the E10848. The threaded construction allows secure mechanical positioning. It is suitable for sensor installation where repeatability and mechanical protection are important.
M8 sensor mounting sleeve
Integrated end stop
M12 × 1 thread
8 mm internal diameter
42 mm length
Brass construction
White-bronze-coated finish
Two supplied nuts
5 Nm tightening torque
10 Nm lock-nut torque
36.3 g weight
Defined sensor position
Right-side sensing-face alignment
Quick replacement
No repeated readjustment
M8 cylindrical sensors
Industrial automation
Machine monitoring
Factory automation
Position sensing
Production machinery
Machine fixtures
Sensor replacement
Industrial retrofits
Automation equipment
The 42 mm sleeve length provides additional mechanical positioning space. This can be useful where the mounting structure requires a longer holder. The integrated end stop maintains the sensor reference position. The threaded design supports secure mechanical installation. The sleeve can therefore provide repeatable sensor placement in industrial equipment.
The defined end stop reduces the need for manual sensor alignment after replacement. This can shorten maintenance activities on machines with frequently serviced sensors. The supplied nuts provide secure mechanical fixation. The coated brass construction supports repeated industrial use. The E10849 provides a practical balance between mounting stability and serviceability.
| Specification | E10849 Details |
|---|---|
| Order number | E10849 |
| Product | Mounting sleeve with end stop |
| Product designation | FIXING/M8/BASIC/MS/END STOP |
| Product category | Mounting sleeve |
| Sensor type | Cylindrical sensor |
| Sensor size | M8 |
| End stop | Yes |
| Thread designation | M12 × 1 |
| Internal diameter | 8 mm |
| Overall length | 42 mm |
| Body material | Brass |
| Surface coating | White bronze |
| Nut material | Brass |
| Nut coating | White bronze |
| Supplied nuts | 2 |
| Tightening torque | 5 Nm |
| Lock-nut torque | 10 Nm |
| Weight | 36.3 g |
| Installation instruction | Sensing face to right |
| Mounting method | Threaded |
| Installation design | With end stop |
| Position reference | Mechanical stop |
| Sensor replacement | Without readjustment |
| Construction | Cylindrical |
| Mechanical fixation | Thread and nuts |
| Application | Industrial automation |
| Maintenance function | Repeatable positioning |
| Pack quantity | 1 piece |
| Manufacturer | IFM electronic |
