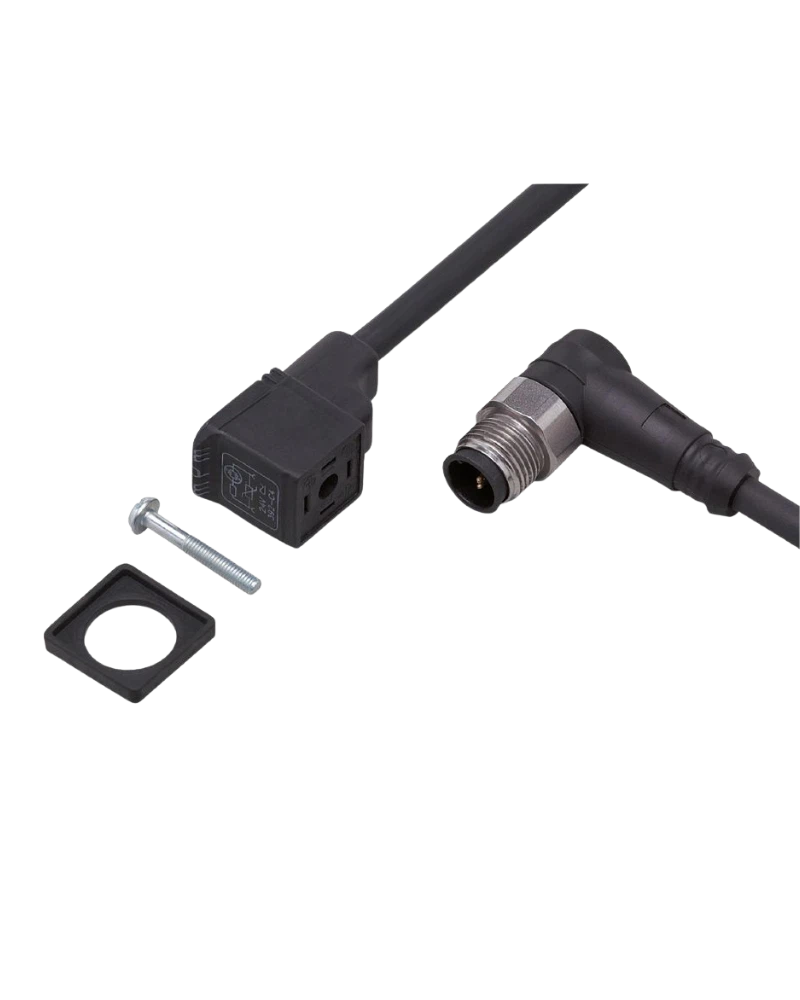

The IFM E10845 is a 0.6 m jumper cable designed for connection between an angled M12 plug and Type C valve plug. It uses a black halogen-free PUR cable with three 0.5 mm² conductors. The cable operates at 24 V AC/DC and includes VDR protective circuitry. TPU connector bodies and stainless-steel 316L locking components provide robust industrial construction. IP67 protection and a yellow LED support reliable operation and convenient visual inspection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10845 provides an angled M12-to-Type C valve connection. Its 0.6 m cable provides useful additional reach for machine installations. The cable uses three 0.5 mm² conductors and has a 4.8 mm diameter. The black PUR sheath is halogen-free. This makes the assembly suitable for compatible industrial valve and automation equipment.
The assembly supports 24 V AC/DC operation. VDR protection provides overvoltage protection for the electrical connection. The yellow LED provides a visible operating indication. The connector assembly has an IP67 protection rating. Together these features provide a practical connection solution for industrial valve automation.
TPU connector bodies provide moulded mechanical protection. Stainless-steel 316L locking hardware provides secure connection retention. The cable operates from -25 to 90°C. Its 0.6 m length provides greater routing flexibility while maintaining a compact installation. The assembly weighs approximately 59 g.
0.6 m jumper cable
M12 angled plug
Type C valve plug
24 V AC/DC
VDR protection
Yellow LED
IP67 protection
-25…90°C
Halogen-free PUR cable
Black sheath
3 × 0.5 mm² conductors
Ø4.8 mm cable
TPU connector body
316L stainless-steel nut
Angled/angled design
0.5 Nm knurled nut torque
59 g weight
Supplied screw
Supplied labelling panel
Industrial connection assembly
Type C valve systems
Industrial automation
Factory automation
Process control
Machine control
Pneumatic equipment
Valve actuators
Sensor connections
Control cabinets
Machine maintenance
The 0.6 m cable provides useful routing flexibility between the M12 and valve interfaces. This can simplify wiring where connection points are separated within a machine. The PUR sheath provides suitable mechanical durability for industrial installations. Angled connectors help manage cable direction. The ready-made assembly reduces connector termination work.
The yellow LED provides an immediate visual status indication. VDR protection helps protect the connection against overvoltage events. IP67 protection provides environmental protection around the connection assembly. Stainless-steel locking hardware supports secure installation. These features help simplify commissioning and maintenance.
| Specification | E10845 Details |
|---|---|
| Order number | E10845 |
| Product | Jumper cable with valve plug |
| Product designation | VVDAC041MSS00,6A03STAH030VAS |
| Product category | Jumper cable |
| M12 plug | Yes |
| M12 design | Angled |
| Valve plug | Type C |
| Valve design | Angled |
| Valve standard | DIN EN 175301-803 |
| Electrical design | AC/DC |
| Operating voltage | 24 V AC/DC |
| Overvoltage protection | VDR |
| LED | Yellow |
| Protection rating | IP67 |
| Ambient temperature | -25…90°C |
| Cable length | 0.6 m |
| Cable material | PUR |
| Cable colour | Black |
| Halogen-free | Yes |
| Conductors | 3 |
| Conductor size | 0.5 mm² |
| Conductor construction | 16 × Ø0.2 mm |
| Cable diameter | Ø4.8 mm |
| Body material | TPU |
| Nut material | Stainless steel 316L |
| Knurled nut torque | 0.5 Nm |
| Weight | 59 g |
| Pack quantity | 1 piece |
