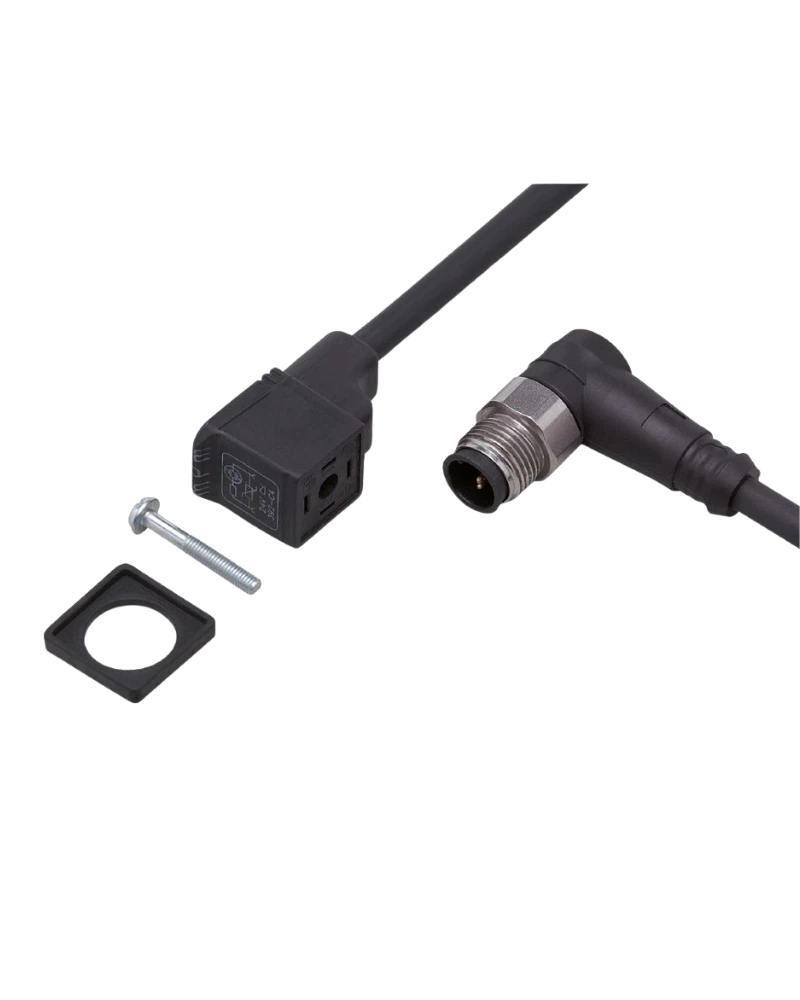

The IFM E10844 is a 0.3 m jumper cable with an angled M12 plug and Type C valve plug. It uses a halogen-free PUR cable with three 0.5 mm² conductors and a 4.8 mm diameter. The cable operates below 24 V AC/DC and incorporates VDR overvoltage protection. TPU connector bodies and stainless-steel 316L locking hardware provide durable industrial construction. IP67 protection and a yellow LED provide practical electrical and environmental protection for automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10844 is designed around a Type C valve plug connection. The M12 and valve connections are both angled to support compact machine wiring. The 0.3 m PUR cable provides a short connection path between the two interfaces. The cable is black, halogen-free and contains three 0.5 mm² conductors. This makes the assembly suitable for compatible industrial valve-control applications.
The cable supports operating voltage below 24 V AC/DC. VDR overvoltage protection helps protect the connection against voltage transients. A yellow LED provides visible power indication. IP67 protection supports the assembly in suitable industrial environments. These characteristics make it practical for machine and process automation connections.
The connector bodies use TPU and the locking hardware uses stainless steel 316L. The 0.3 m cable provides a compact connection arrangement. The 45.7 g weight keeps the assembly lightweight for machine integration. The included screw and labelling panel simplify installation and identification. The cable is designed for reliable repeated use in industrial automation environments.
0.3 m jumper cable
M12 angled plug
Type C valve plug
DIN EN 175301-803 interface
AC/DC electrical design
<24 V AC/DC operation
VDR protection
Yellow LED
IP67 protection
-25…90°C range
Halogen-free cable
PUR cable
Black cable
3 × 0.5 mm² conductors
Ø4.8 mm cable diameter
TPU body
316L stainless-steel locking hardware
0.5 Nm knurled nut torque
Supplied screw
Supplied labelling panel
Type C valve connections
Industrial automation
Factory automation
Machine control
Process equipment
Pneumatic systems
Sensor wiring
Valve actuators
Control panels
Industrial maintenance
The 0.3 m length is suitable for short connection distances. Angled connectors help maintain a compact routing path around machine components. The PUR cable provides a durable industrial cable construction. The Type C valve connection supports compatible valve interfaces. The assembly is supplied ready for installation.
The yellow LED provides quick visual indication of operating status. VDR protection helps reduce the impact of voltage transients. IP67 protection provides environmental sealing for the connector assembly. The stainless-steel locking components support secure mechanical retention. These features support dependable machine operation and maintenance.
| Specification | E10844 Details |
|---|---|
| Order number | E10844 |
| Product | Jumper cable with valve plug |
| Product designation | VVDAC041MSS00,3A03STAH030VAS |
| Product category | Jumper cable |
| M12 plug | Yes |
| M12 design | Angled |
| Valve plug | Type C |
| Valve design | Angled |
| Valve standard | DIN EN 175301-803 |
| Electrical design | AC/DC |
| Operating voltage | <24 V AC/DC |
| Overvoltage protection | VDR |
| LED | Yellow |
| Protection rating | IP67 |
| Ambient temperature | -25…90°C |
| Cable length | 0.3 m |
| Cable material | PUR |
| Cable colour | Black |
| Halogen-free | Yes |
| Conductors | 3 |
| Conductor size | 0.5 mm² |
| Conductor construction | 16 × Ø0.2 mm |
| Cable diameter | Ø4.8 mm |
| Body material | TPU |
| Nut material | Stainless steel 316L |
| Knurled nut torque | 0.5 Nm |
| Weight | 45.7 g |
| Pack quantity | 1 piece |
