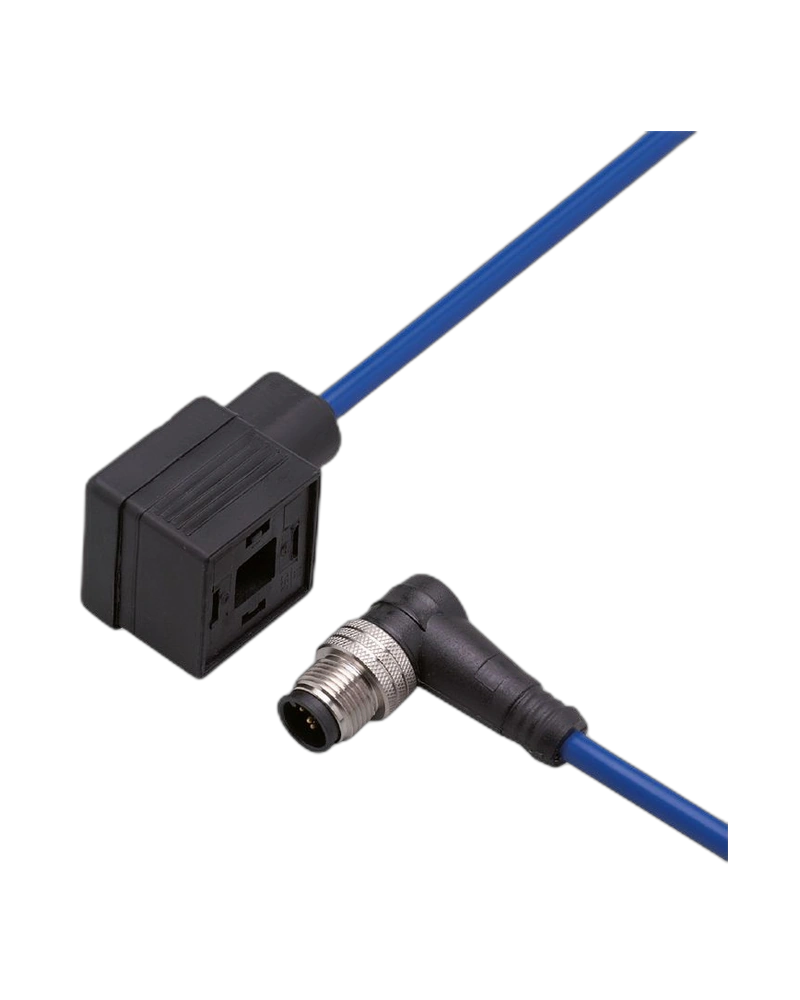

The IFM E10822 is a NAMUR jumper cable with an angled M12 connector and angled Type A valve connector. It uses a 0.6 m blue PVC cable with two 0.5 mm² conductors and a 5.1 mm cable diameter. The cable operates at below 15 V DC and provides IP67 protection. TPU/PUR connector bodies and stainless-steel 316L locking hardware provide durable industrial construction. The assembly is supplied with a screw and labelling panel for practical installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10822 is intended for NAMUR connection applications. Its angled M12 connector and angled Type A valve connector provide a compact connection arrangement. The 0.6 m cable provides additional routing length for machine installations. The blue PVC cable contains two 0.5 mm² conductors. This makes the jumper suitable for compatible low-voltage NAMUR wiring systems.
The E10822 uses a DC electrical design with an operating voltage below 15 V DC. Its two-conductor cable is designed around the intended NAMUR connection. IP67 protection supports use in suitable industrial environments. The connector arrangement provides a direct interface between compatible M12 and valve connections. This supports compact machine wiring and valve-control installations.
The TPU/PUR connector bodies provide moulded protection around the electrical interfaces. Stainless-steel 316L locking components provide secure mechanical retention. The cable measures 5.1 mm in diameter and is supplied in blue. The 0.6 m length provides greater routing flexibility than the shorter E10821. The 65 g assembly is suitable for compact industrial installation.
NAMUR jumper cable
0.6 m cable
M12 angled connector
Type A valve plug
DIN EN 175301-803 valve interface
DC electrical design
<15 V DC operating voltage
IP67 protection
Blue PVC cable
2 × 0.5 mm² conductors
Ø5.1 mm cable
TPU/PUR body
316L stainless-steel locking hardware
Angled/angled design
65 g weight
Compact construction
Supplied screw
Supplied labelling panel
Industrial connection accessory
NAMUR systems
Valve automation
Industrial machinery
Process control
Factory automation
Machine control
Pneumatic equipment
Sensor connections
Low-voltage automation
Industrial maintenance
The 0.6 m cable provides additional routing flexibility around machinery. This can help accommodate greater spacing between the M12 connection and valve interface. The PVC cable provides a practical industrial cable construction. The angled connector arrangement helps keep routing compact. The preassembled design reduces wiring assembly work.
The E10822 is intended for compatible NAMUR equipment and low-voltage circuits. The screw and labelling panel support installation and circuit identification. IP67 protection helps protect the connection from dust and water exposure. Stainless-steel locking hardware supports secure mechanical retention. This makes the jumper suitable for serviceable industrial automation systems.
| Specification | E10822 Details |
|---|---|
| Order number | E10822 |
| Product | Jumper cable with valve plug |
| Product designation | VVDAA040--N00,6E02STAH020VAN |
| Product category | Jumper cable |
| Application | NAMUR |
| M12 connector | Yes |
| M12 design | Angled |
| Valve plug | Type A |
| Valve design | Angled |
| Electrical design | DC |
| Operating voltage | <15 V DC |
| Cable length | 0.6 m |
| Cable material | PVC |
| Cable colour | Blue |
| Cable diameter | Ø5.1 mm |
| Conductors | 2 |
| Conductor size | 0.5 mm² |
| Protection rating | IP67 |
| Ambient temperature | -25…90°C |
| Body material | TPU/PUR |
| Locking material | Stainless steel 316L |
| Weight | 65 g |
| Connector arrangement | Angled/angled |
| Valve standard | DIN Type A |
| Included screw | Yes |
| Included labelling panel | Yes |
| Cable construction | Two-core |
| Pack quantity | 1 piece |
| Intended system | NAMUR |
