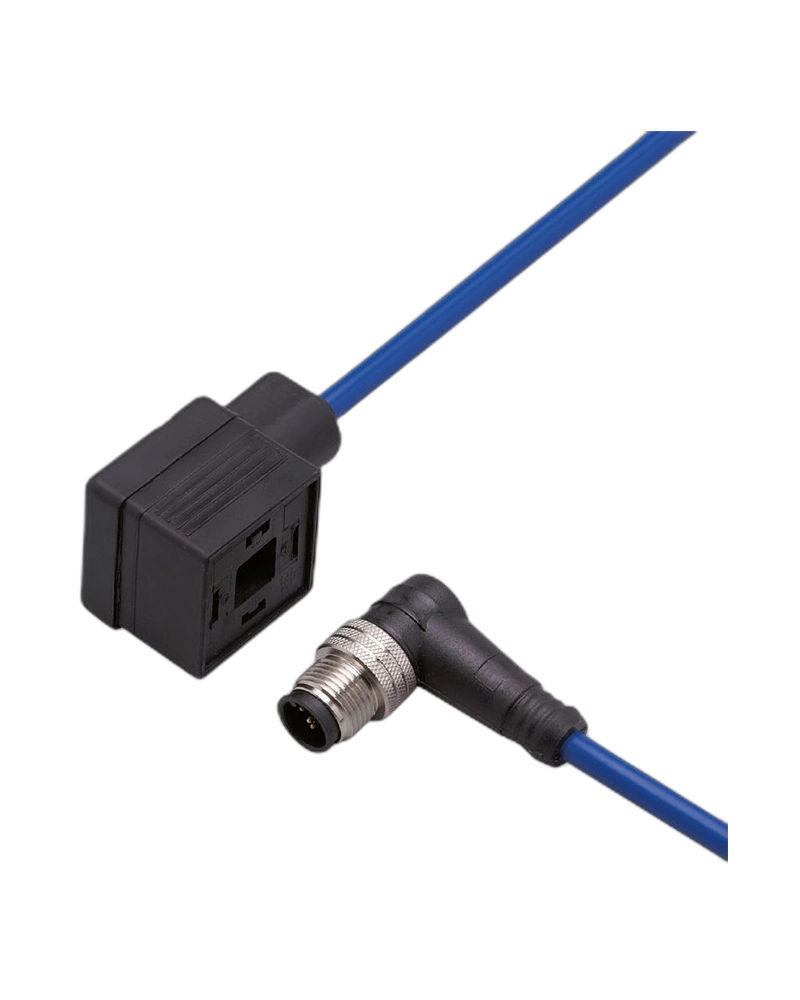

The IFM E10821 is a NAMUR jumper cable with an angled M12 connector and angled Type A valve connector. It uses a 0.3 m blue PVC cable with two 0.5 mm² conductors. The cable is designed for DC operation below 30 V and provides IP67 protection. TPU/PUR connector construction and stainless-steel 316L locking hardware provide industrial mechanical durability. It is supplied with a screw and labelling panel for straightforward installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10821 is specifically identified for NAMUR applications. Its M12 connection and Type A valve connector provide a compact connection path for compatible NAMUR equipment. The 0.3 m cable length supports short-distance machine wiring. The blue PVC cable contains two 0.5 mm² conductors. The connector arrangement is angled on both sides for compact routing.
The cable is designed for DC operation below 30 V according to the newer IFM technical documentation. Its two-conductor configuration is suitable for the intended NAMUR connection. The assembly is protected to IP67. The cable is intended for compatible low-voltage industrial circuits. Proper system-level electrical compatibility should be confirmed before installation.
The E10821 uses TPU/PUR moulded connector bodies and stainless-steel 316L locking components. The assembly measures approximately 31 × 14.5 × 38 mm. Its 51.9 g weight provides a compact connection assembly. The cable is blue PVC with a 5.1 mm diameter. The supplied screw and labelling panel support practical field installation.
NAMUR jumper cable
0.3 m cable length
M12 angled connector
Type A valve connector
DIN valve interface
DC electrical design
<30 V DC operating voltage
IP67 protection
Blue PVC cable
2 × 0.5 mm² conductors
Ø5.1 mm cable
TPU/PUR connector construction
316L stainless-steel locking hardware
Angled connector arrangement
51.9 g weight
31 × 14.5 × 38 mm dimensions
Supplied screw
Supplied labelling panel
Industrial NAMUR connection
NAMUR sensor systems
Industrial automation
Valve monitoring
Machine control
Process automation
Pneumatic equipment
Factory automation
Low-voltage control systems
Sensor wiring
Industrial maintenance
The E10821 provides a dedicated connection solution for NAMUR applications. Its two-conductor cable matches the electrical arrangement used by compatible NAMUR equipment. The compact angled design supports neat routing around machine components. The 0.3 m cable is suitable for short connection distances. This helps simplify wiring between sensor and valve interfaces.
The TPU/PUR moulded bodies provide mechanical protection around the connector interfaces. Stainless-steel 316L locking components support secure connections. IP67 protection provides additional environmental protection. The blue cable is easy to identify during wiring and maintenance. The supplied labelling panel supports circuit identification.
| Specification | E10821 Details |
|---|---|
| Order number | E10821 |
| Product | Jumper cable with valve plug |
| Product designation | VVDAA040--N00,3E02STAH050VAN |
| Product category | Jumper cable |
| Application | NAMUR |
| M12 connector | Yes |
| M12 design | Angled |
| Valve connector | Type A |
| Valve design | Angled |
| Electrical design | DC |
| Operating voltage | <30 V DC |
| Cable length | 0.3 m |
| Cable material | PVC |
| Cable colour | Blue |
| Cable diameter | Ø5.1 mm |
| Conductors | 2 |
| Conductor size | 0.5 mm² |
| Protection rating | IP67 |
| Ambient temperature | -25…90°C |
| Connector body | TPU/PUR |
| Nut material | Stainless steel 316L |
| Dimensions | 31 × 14.5 × 38 mm |
| Weight | 51.9 g |
| Valve standard | DIN Type A |
| Cable construction | Two-core |
| Included accessory | Screw |
| Identification accessory | Labelling panel |
| Pack quantity | 1 piece |
| Installation | Angled/angled |
