The IFM E10820 is a 0.6 m jumper cable for connecting an M12 plug to a Type B valve plug interface. It uses a black halogen-free PUR cable with three 0.5 mm² conductors. The cable supports 24 V AC/DC operation and includes VDR overvoltage protection. TPU connector bodies and stainless-steel 316L locking hardware provide durable industrial construction. IP67 protection and a yellow LED provide additional suitability for industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

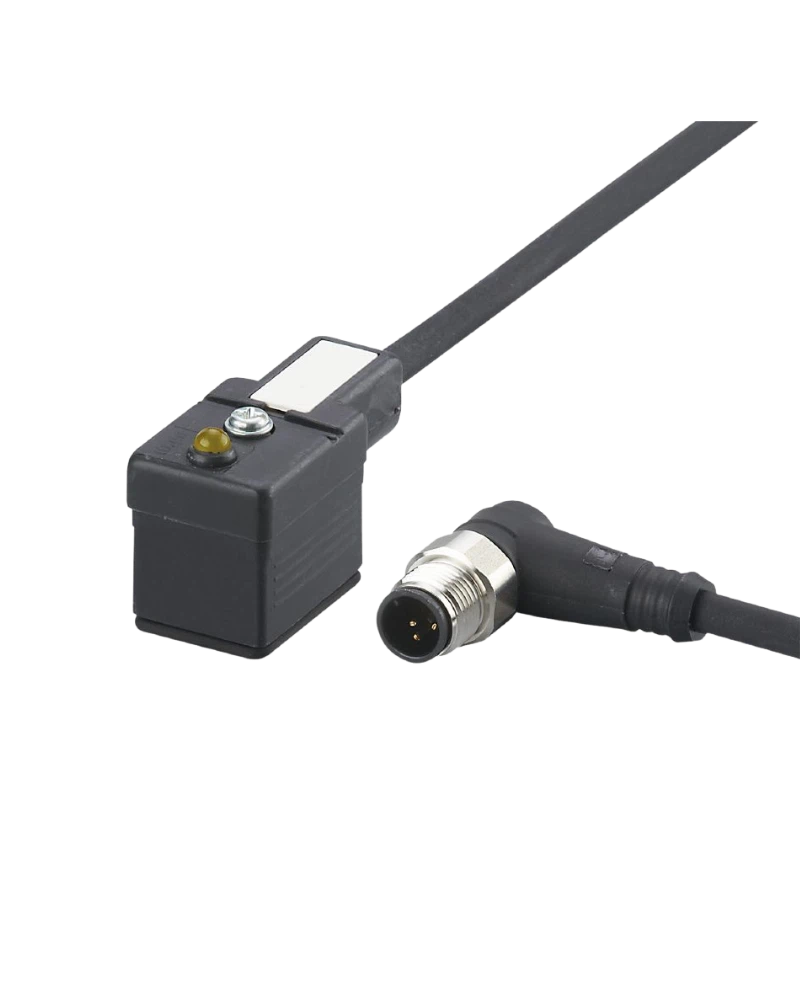

The E10820 uses an angled M12 plug and an angled Type B valve plug. The 0.6 m cable length provides useful routing flexibility around machine components. The cable is constructed from PUR and has a 4.8 mm outside diameter. Three 0.5 mm² conductors provide the electrical connection. The assembly is supplied ready for direct installation.
The cable is designed for 24 V AC/DC applications. A VDR protective circuit helps protect against electrical overvoltage events. The yellow LED provides visible operating indication. The connector arrangement is intended for compatible Type B valve systems. These features make the cable suitable for industrial automation wiring.
The connector bodies are made from TPU for robust moulded construction. Stainless-steel 316L locking components provide secure mechanical retention. IP67 protection supports industrial installations exposed to dust and water. The cable is halogen-free and rated from -25 to 90°C. The 0.6 m assembly provides a practical balance between reach and compact installation.
0.6 m cable
M12 angled plug
Type B valve plug
24 V AC/DC operation
VDR protection
Yellow LED
IP67 protection
-25…90°C range
Halogen-free PUR cable
Black cable sheath
3 × 0.5 mm² conductors
Ø4.8 mm cable diameter
TPU connector body
316L stainless-steel locking nut
Angled/angled construction
Protective circuitry
Supplied screw
Supplied labelling panel
Industrial connection technology
Valve automation
Industrial machinery
Factory automation
Pneumatic valve systems
Machine control
Process automation
Sensor-to-valve connections
Control panels
Automation equipment
Industrial maintenance
The 0.6 m cable provides additional reach between connection points. This helps accommodate equipment where the valve and sensor connection are not immediately adjacent. The PUR sheath provides a durable cable construction. Angled connectors can reduce the required routing space. The assembly is suitable for organised machine wiring.
The yellow LED allows quick visual inspection during commissioning. VDR protection helps protect the electrical connection against voltage spikes. Stainless-steel locking components support repeated connection and disconnection. IP67 protection helps maintain connection integrity in industrial environments. These features make the cable suitable for service-intensive automation systems.
| Specification | E10820 Details |
|---|---|
| Order number | E10820 |
| Product | Jumper cable with valve plug |
| Product designation | VVSAB041--S00,6A03STAH030VAS |
| Product category | Jumper cable |
| M12 connector | Yes |
| M12 design | Angled |
| Valve plug | Type B |
| Valve connector design | Angled |
| Electrical design | AC/DC |
| Operating voltage | 24 V AC/DC |
| Overvoltage protection | VDR |
| LED | Yellow |
| Protection rating | IP67 |
| Ambient temperature | -25…90°C |
| Cable length | 0.6 m |
| Cable material | PUR |
| Cable colour | Black |
| Halogen-free | Yes |
| Conductors | 3 |
| Conductor size | 0.5 mm² |
| Conductor construction | 16 × Ø0.2 mm |
| Cable diameter | Ø4.8 mm |
| Body material | TPU |
| Nut material | Stainless steel 316L |
| Connector arrangement | Angled/angled |
| Weight | 55 g |
| Included screw | Yes |
| Included labelling panel | Yes |
| Pack quantity | 1 piece |
