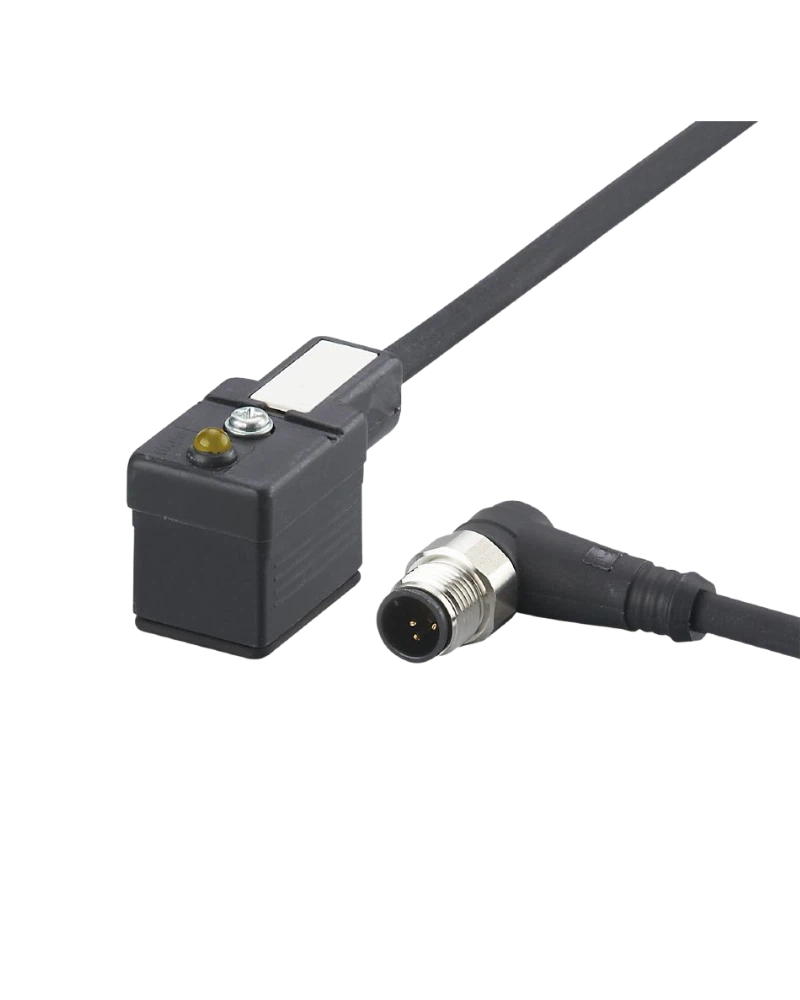

The IFM E10819 is a compact 0.3 m jumper cable with an M12 plug and Type B valve plug arrangement. It uses a halogen-free PUR cable with three 0.5 mm² conductors and a 4.8 mm diameter. The cable operates below 24 V AC/DC and includes VDR overvoltage protection. TPU connector bodies and stainless-steel 316L locking components provide robust industrial construction. IP67 protection and a yellow operating LED support dependable use in automation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10819 combines an angled M12 connection with an angled valve connection. Its 0.3 m cable length is intended for compact machine installations. The black PUR cable is halogen-free and contains three 0.5 mm² conductors. TPU connector bodies provide a durable moulded connection. Stainless-steel 316L locking hardware provides secure connector retention.
The cable is rated for operation below 24 V AC/DC. VDR overvoltage protection is incorporated into the assembly. A yellow LED provides an operating indication for quick visual inspection. The electrical configuration is intended for compatible valve and M12 interfaces. This makes the cable suitable for industrial valve-control wiring.
The E10819 has an IP67 protection rating for industrial environments. Its specified ambient temperature range is -25 to 90°C. The halogen-free PUR cable is suitable for modern industrial wiring requirements. Stainless-steel locking components help maintain mechanical integrity at the connection points. The 59.2 g assembly provides a compact connection solution.
0.3 m jumper cable
M12 plug
Valve plug connection
Angled connector arrangement
AC/DC electrical design
<24 V AC/DC operating voltage
VDR overvoltage protection
Yellow LED
IP67 protection
-25…90°C temperature range
PUR cable
Halogen-free cable
Black sheath
3 × 0.5 mm² conductors
Ø4.8 mm cable
TPU body
316L stainless-steel nut
Compact design
Supplied screw
Supplied labelling panel
Valve automation
Industrial automation
Factory equipment
Machine control
Pneumatic systems
Process automation
Control cabinets
Sensor wiring
Valve actuator connections
Industrial machinery
The 0.3 m cable length is suited to short-distance connections. This reduces excess cable around compact machine assemblies. The angled connector design can help maintain a cleaner cable route. The PUR cable provides suitable mechanical durability for industrial applications. The integrated connector assembly reduces installation effort.
The yellow LED provides a convenient visual indication during operation. This can help technicians identify connection status during commissioning and maintenance. VDR protection adds electrical protection against voltage transients. IP67 protection supports use in appropriate industrial environments. The result is a practical connection assembly for valve automation.
| Specification | E10819 Details |
|---|---|
| Order number | E10819 |
| Product | Jumper cable with valve plug |
| Product designation | VVSAB041--S00,3A03STAH030VAS |
| Product category | Jumper cable |
| M12 connection | Yes |
| M12 design | Angled |
| Valve connector | Valve plug |
| Valve design | Angled |
| Electrical design | AC/DC |
| Operating voltage | <24 V AC/DC |
| Overvoltage protection | VDR |
| LED | Yellow |
| Protection rating | IP67 |
| Ambient temperature | -25…90°C |
| Cable length | 0.3 m |
| Cable material | PUR |
| Cable colour | Black |
| Halogen-free | Yes |
| Conductors | 3 |
| Conductor size | 0.5 mm² |
| Conductor construction | 16 × Ø0.2 mm |
| Cable diameter | Ø4.8 mm |
| Body material | TPU |
| Nut material | Stainless steel 316L |
| Connector arrangement | Angled/angled |
| Weight | 59.2 g |
| Included hardware | Screw |
| Included identification | Labelling panel |
| Pack quantity | 1 piece |
