The IFM E10818 is a 0.6 m jumper cable designed to connect an angled M12 plug with an angled Type A valve plug. It uses a halogen-free PUR cable with three 0.5 mm² conductors and a 4.8 mm cable diameter. The assembly supports AC/DC operation below 24 V and incorporates VDR overvoltage protection. TPU connector bodies and stainless-steel 316L locking components provide a robust industrial connection. IP67 protection and a yellow operating LED make the cable suitable for demanding automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

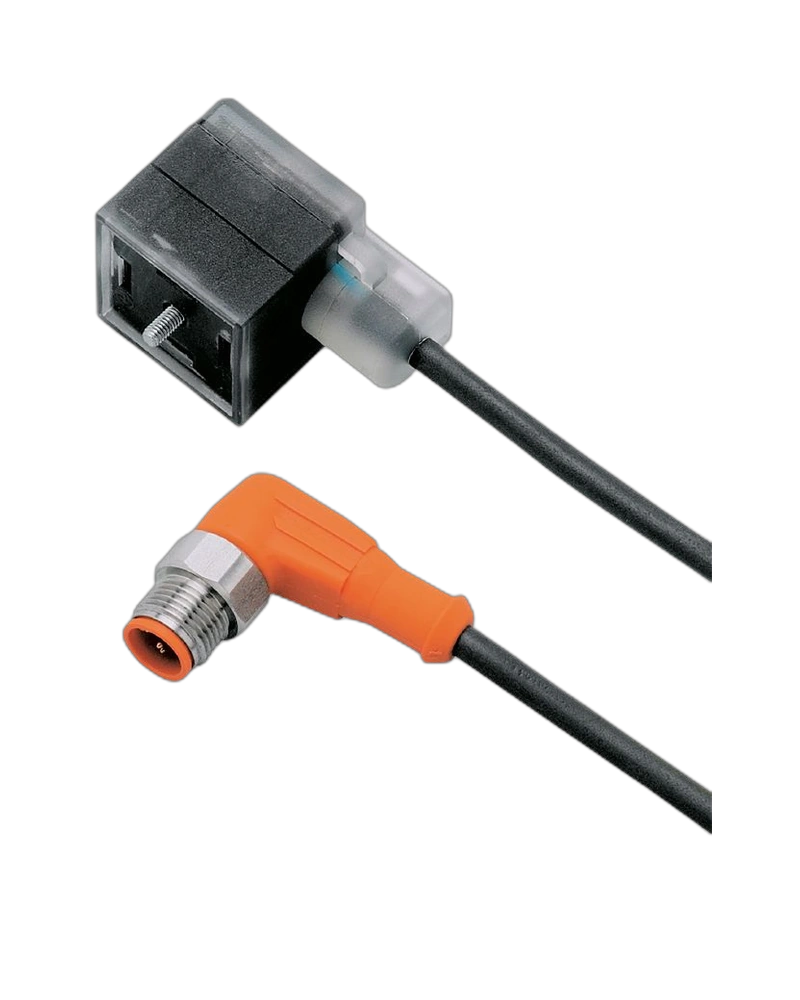

The E10818 uses an angled M12 plug on one side and an angled Type A valve connector on the other. Both connection bodies use TPU construction for industrial mechanical durability. The 0.6 m cable provides additional routing distance compared with shorter jumper variants. The PUR cable is black, halogen-free and contains three 0.5 mm² conductors. This configuration provides a compact connection between valve equipment and control wiring.
The jumper cable is intended for AC/DC operation below 24 V. A VDR protective circuit provides overvoltage protection for the connection assembly. The yellow LED provides a visible operating indication. The electrical design is intended for compatible Type A valve connection systems. This makes the E10818 suitable for controlled industrial valve wiring.
The connector bodies are made from TPU and the locking components use stainless steel 316L. The IP67 rating provides protection against dust and temporary water exposure. The cable operates across -25 to 90°C ambient temperature. The angled connector arrangement helps reduce installation space around the valve. The 76 g assembly provides a solid yet compact industrial connection solution.
0.6 m cable length
M12 angled plug
Type A valve plug
DIN EN 175301-803 interface
AC/DC electrical design
Operating voltage below 24 V AC/DC
VDR protection
Yellow LED
IP67 protection
-25…90°C ambient range
PUR cable
Halogen-free construction
Black cable
3 × 0.5 mm² conductors
Ø4.8 mm cable
TPU connector bodies
316L stainless-steel locking hardware
Angled/angled design
Supplied screw
Supplied labelling panel
Valve automation
Industrial control systems
Factory automation
Pneumatic valve wiring
Machine automation
Sensor and valve connections
Process equipment
Control panels
Industrial machinery
Automation retrofit work
The 0.6 m cable provides more routing flexibility than the shorter 0.3 m version. This can simplify connection between closely spaced valve and control components. The PUR cable provides a durable industrial cable construction. The angled connectors help manage cable routing around equipment. The assembly is supplied ready for installation.
IP67 protection supports use in suitably protected industrial environments. The stainless-steel locking components provide durable connector retention. The yellow LED gives operators a visible indication of operating status. The VDR circuit helps protect the connection against voltage transients. These features support practical maintenance and reliable machine operation.
| Specification | E10818 Details |
|---|---|
| Order number | E10818 |
| Product | Jumper cable with valve plug |
| Product designation | VVSAB041MSS00,6A03STAH030VAS |
| Product category | Jumper cable |
| Connector 1 | M12 plug |
| Connector 1 design | Angled |
| Connector 2 | Type A valve plug |
| Valve standard | DIN EN 175301-803 |
| Valve design | Angled |
| Electrical design | AC/DC |
| Operating voltage | <24 V AC/DC |
| Overvoltage protection | VDR |
| LED | Yellow |
| Protection rating | IP67 |
| Ambient temperature | -25…90°C |
| Cable length | 0.6 m |
| Cable material | PUR |
| Cable colour | Black |
| Halogen-free | Yes |
| Conductor count | 3 |
| Conductor cross-section | 0.5 mm² |
| Conductor construction | 16 × Ø0.2 mm |
| Cable diameter | Ø4.8 mm |
| Body material | TPU |
| Locking material | Stainless steel 316L |
| Connector arrangement | Angled/angled |
| Dimensions | 30 × 15 × 39 mm |
| Weight | 76 g |
| Pack quantity | 1 piece |
