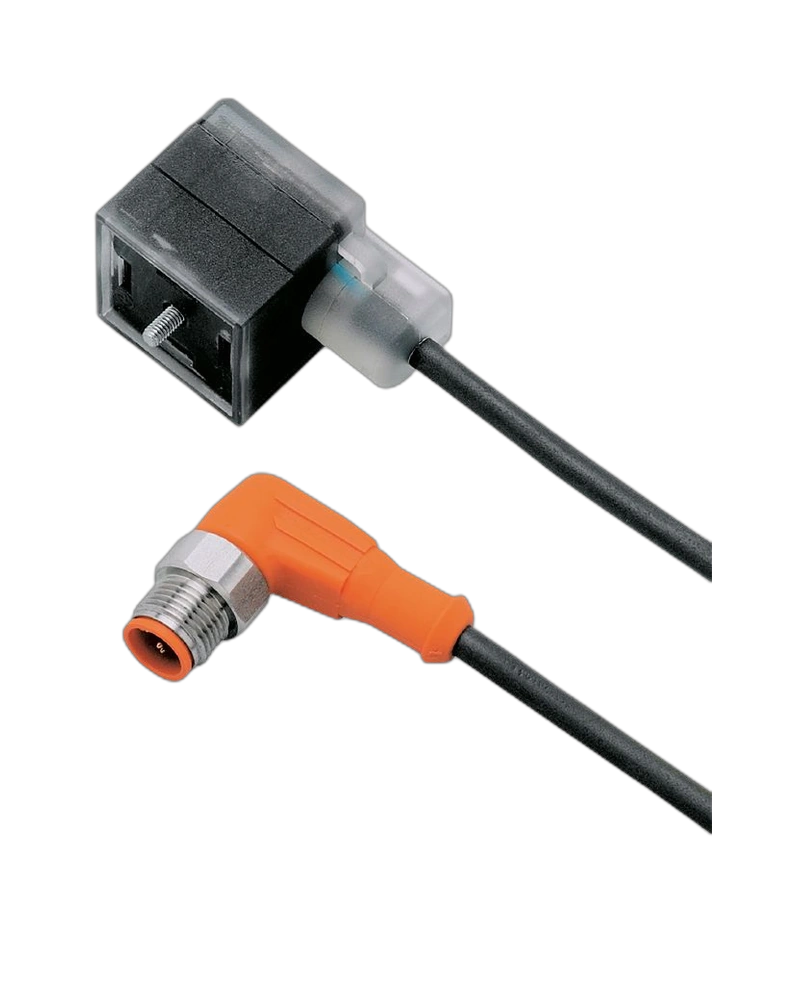

The IFM E10817 is a jumper cable with an angled M12 plug and angled Type A valve plug for industrial connection applications. It uses a 0.3 m halogen-free PUR cable with three 0.5 mm² conductors. The cable assembly operates at 24 V AC/DC and includes VDR overvoltage protection. Its TPU connector bodies, stainless-steel 316L locking hardware and IP67 protection provide reliable industrial performance. A yellow LED provides operating indication, while the supplied screw and labelling panel simplify installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10817 combines an angled M12 connector with an angled Type A valve connector. The valve connector follows DIN EN 175301-803 requirements for Type A valve connections. The 0.3 m PUR cable contains three 0.5 mm² conductors and has a 4.8 mm outer diameter. The cable is black and halogen-free for industrial wiring environments. The compact angled construction helps route the cable neatly around valves and sensors.
The cable is designed for 24 V AC/DC operation and includes VDR overvoltage protection. This protective circuit helps reduce the effect of electrical voltage transients. The yellow LED provides a visible indication of operating status. The connector arrangement is intended for compatible valve and sensor interfaces. This combination supports dependable electrical connection in automation equipment.
The connector bodies are manufactured from TPU for robust industrial use. Stainless-steel 316L locking components provide corrosion-resistant mechanical connection hardware. The assembly is rated IP67 for protection against dust and temporary water immersion. The angled design helps reduce cable routing space around the connection points. The supplied screw and labelling panel make installation and identification easier.
0.3 m jumper cable
M12 angled plug
Type A valve plug
DIN EN 175301-803 valve interface
24 V AC/DC operation
VDR overvoltage protection
Yellow power LED
IP67 protection
Halogen-free cable
PUR cable sheath
3 × 0.5 mm² conductors
4.8 mm cable diameter
Black cable
TPU connector bodies
Stainless-steel 316L locking hardware
Angled connector configuration
Supplied screw
Supplied labelling panel
Single-piece pack
Industrial automation connection
Valve connection systems
Industrial automation
Factory automation
Machine control systems
Pneumatic valve assemblies
Sensor-to-valve connections
Control cabinets
Process automation
Machine wiring
Compact automation equipment
The E10817 provides a ready-made connection between an M12 interface and a Type A valve interface. Its integrated cable reduces the need for separate connector assembly. The VDR circuit helps protect the connection from voltage transients. The yellow LED gives operators a quick visual status indication. This makes the jumper cable practical for serviceable industrial valve wiring.
The angled connectors help keep cable routing compact around equipment. The 0.3 m cable length is suitable for short-distance connection requirements. The supplied screw and labelling panel support straightforward installation and identification. IP67 protection allows the cable to be used in appropriately protected industrial environments. The halogen-free PUR cable also supports modern industrial wiring requirements.
| Specification | E10817 Details |
|---|---|
| Order number | E10817 |
| Product | Jumper cable with valve plug |
| Product designation | VVDAA041--S00,3A03STAH030VAS |
| Product category | Jumper cable |
| Connector 1 | M12 plug |
| Connector 1 design | Angled |
| Connector 1 coding | A-coded |
| Connector 2 | Valve plug |
| Valve plug type | Type A |
| Valve standard | DIN EN 175301-803 |
| Valve connector design | Angled |
| Electrical design | AC/DC |
| Operating voltage | 24 V AC/DC |
| Overvoltage protection | VDR |
| LED | Yellow |
| Protection rating | IP67 |
| Ambient temperature | -25…90°C |
| Cable length | 0.3 m |
| Cable material | PUR |
| Cable colour | Black |
| Cable type | Halogen-free |
| Conductor count | 3 |
| Conductor size | 0.5 mm² |
| Conductor construction | 16 × Ø0.2 mm |
| Cable diameter | Ø4.8 mm |
| Connector body material | TPU |
| Locking material | Stainless steel 316L / 1.4404 |
| Weight | 61 g |
| Supplied accessories | Screw and labelling panel |
| Pack quantity | 1 piece |
