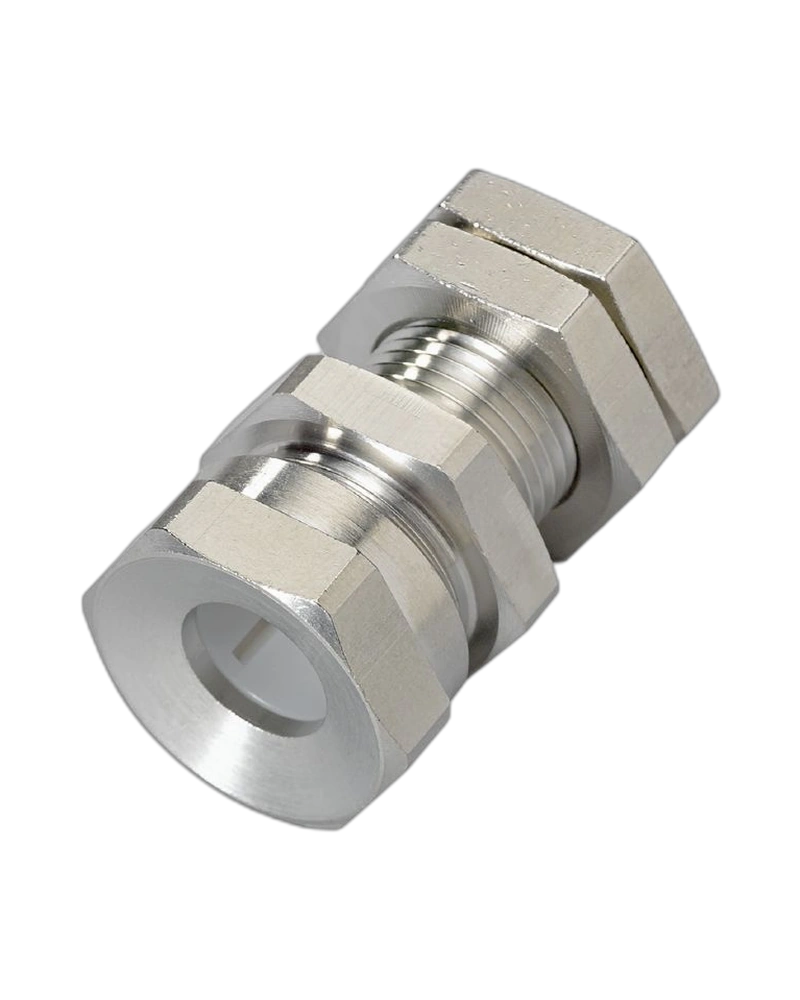

The IFM E10808 is a mounting sleeve with end stop for M30 cylindrical sensors. It uses an M36 × 1.5 mounting thread and a 30 mm internal diameter. The sleeve provides a defined mechanical reference for repeatable sensor installation. Its brass body with white-bronze coating provides a durable industrial mounting interface. Two supplied nuts support secure mechanical fixation of the assembly.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10808 is designed around M30 cylindrical sensor installations. Its 30 mm internal diameter provides the required sensor accommodation. The M36 × 1.5 external thread allows the sleeve to be fixed into a compatible mounting structure. The integrated end stop defines the sensor's installation position. This arrangement supports repeatable sensor placement in industrial machinery.
The mounting sleeve uses brass with a white-bronze-coated surface. It has a 36 mm sleeve dimension in the catalogue description. The mechanical assembly includes two supplied nuts. The M36 × 1.5 thread provides secure threaded mounting. The product listing gives a weight of approximately 140.2 g for E10808.
The end stop allows the sensor to be positioned against a repeatable mechanical reference. This can simplify sensor replacement and maintenance operations. The fixed position reduces the need for repeated manual alignment. The sleeve is suitable for machine installations where sensor geometry must remain consistent. It provides a straightforward mechanical solution for M30 sensor mounting.
M30 sensor mounting sleeve
Integrated end stop
M36 × 1.5 external thread
30 mm internal diameter
36 mm sleeve dimension
Brass construction
White-bronze-coated surface
Two supplied nuts
Defined installation position
Repeatable sensor replacement
Approximately 140.2 g weight
Industrial mechanical construction
Threaded mounting
Sensor face positioning reference
Single-piece pack
M30 cylindrical sensors
Industrial automation
Machine position detection
Factory machinery
Sensor mounting fixtures
Production equipment
Machine monitoring
Maintenance applications
Mechanical sensing systems
Industrial retrofits
The integrated end stop provides a defined mechanical reference for the M30 sensor. This helps maintain consistent sensing geometry during installation and replacement. The fixed reference can reduce setup time during maintenance. It is useful where sensor position affects machine detection performance. The E10808 therefore supports controlled sensor installation.
The coated brass construction provides a durable mounting interface. The M36 × 1.5 thread provides a secure mechanical connection to compatible mounting structures. Two supplied nuts allow the sleeve to be fixed after adjustment. The 30 mm internal diameter accommodates the intended M30 sensor class. The design is suitable for industrial automation equipment.
| Specification | E10808 Details |
|---|---|
| Product | Mounting sleeve with end stop |
| Order number | E10808 |
| Product designation | FIXING/M30/BASIC/MS/END STOP |
| Product category | Mounting sleeve |
| Sensor type | Cylindrical sensor |
| Sensor size | M30 |
| End stop | Yes |
| External thread | M36 × 1.5 |
| Internal diameter | 30 mm |
| Sleeve dimension | 36 mm |
| Housing material | Brass |
| Surface finish | White-bronze coated |
| Nut material | Brass |
| Nut finish | White-bronze coated |
| Supplied nuts | 2 |
| Weight | 140.2 g |
| Mounting method | Threaded |
| Position reference | Integrated end stop |
| Sensor alignment | Defined mechanical position |
| Sensor replacement | Repeatable |
| Application | Industrial automation |
| Mechanical construction | Cylindrical sleeve |
| Fixing interface | M36 × 1.5 |
| Sensor accommodation | Ø30 mm class |
| Maintenance feature | Reduced readjustment |
| Pack quantity | 1 piece |
| Industrial use | Yes |
| Mounting accessory type | Clamp holder |
| Manufacturer | IFM electronic |
