Sensor Positioning

The integrated end stop establishes a repeatable mounting position for M18 sensors. This helps maintain consistent sensing geometry during installation and replacement. The installation instruction specifies aligning the sensing face to the right. A fixed mechanical reference can reduce manual alignment work during maintenance. This makes the E10807 useful for machine installations requiring repeatable sensor positioning.

Mechanical Construction

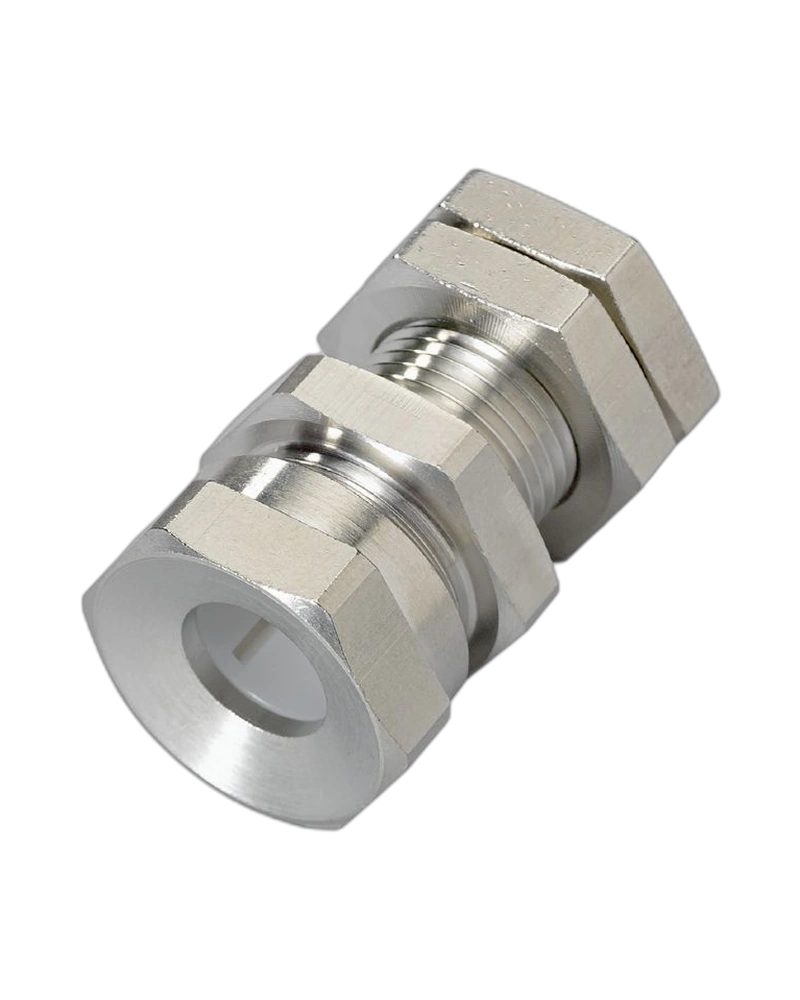

The E10807 is manufactured with a nickel-plated brass housing. The M24 × 1.5 mounting thread provides the external mechanical interface. Its internal diameter is 18 mm and the sleeve length is 36 mm. Two nickel-plated brass nuts are included. The component weighs approximately 97 g according to IFM-related technical documentation.

Maintenance and Replacement

The end-stop design supports straightforward sensor replacement. Once the sleeve is correctly positioned, the sensor can be returned to the established reference. This helps minimise readjustment during service operations. The threaded construction provides secure mechanical retention. The E10807 is suited to industrial machinery where sensor positioning must remain stable.

Key Features

M18 sensor mounting sleeve

Integrated end stop

M24 × 1.5 external thread

18 mm internal diameter

36 mm sleeve length

Nickel-plated brass housing

Two supplied nuts

Nickel-plated brass nuts

Defined sensor position

Sensing-face alignment reference

Approximately 97 g weight

Repeatable sensor replacement

Industrial mounting construction

Threaded fixation

Single-piece pack

Applications

M18 cylindrical sensors

Industrial automation

Machine monitoring

Factory automation

Position detection

Sensor mounting fixtures

Production equipment

Machine maintenance

Mechanical sensor assemblies

Industrial retrofits

Repeatable Sensor Installation

The end stop provides a defined reference for the sensor body. This helps maintain consistent sensing-face placement across multiple installations. The feature can reduce setup time when sensors are replaced. It also helps maintain machine configuration after maintenance. The result is a more controlled sensor mounting process.

Mechanical Stability

The nickel-plated brass construction provides a durable threaded mounting interface. The supplied nuts allow the sleeve to be secured after positioning. The 18 mm internal diameter matches the intended M18 sensor class. Its 36 mm length provides a compact mounting arrangement. This makes the E10807 suitable for industrial sensor fixtures.
