Defined Sensor Position

The integrated end stop provides a fixed reference for M12 sensor installation. This helps maintain consistent sensing-face positioning during installation and replacement. IFM specifies alignment of the sensor sensing face to the right according to the scale drawing. The mechanical stop reduces the need for repeated manual adjustment. This makes the sleeve useful for repeatable machine sensor installation.

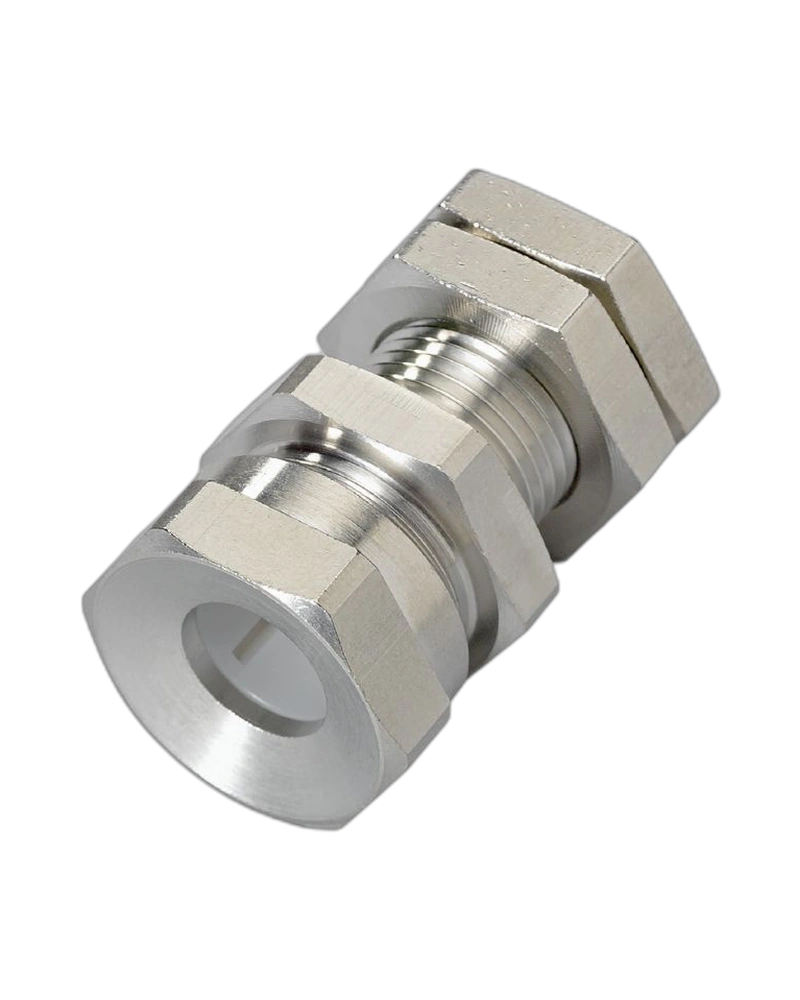

Mechanical Construction

The E10806 uses a brass body with white-bronze coating. Its M16 × 1 thread provides the mounting interface, while the internal diameter is 12 mm. The sleeve has a 34 mm installation dimension. Two brass nuts are supplied for securing the mounting position. The specified tightening torque is 7 Nm, with 20 Nm for the lock nuts.

Maintenance Advantage

The end-stop design allows sensors to be removed and replaced using a defined mechanical reference. This can reduce alignment work during machine maintenance. The threaded mounting arrangement also allows secure installation into compatible mounting structures. The compact design is suitable for industrial automation equipment. It is particularly useful where sensor position must remain repeatable after replacement.

Key Features

M12 sensor mounting sleeve

Integrated end stop

M16 × 1 thread

12 mm internal diameter

34 mm sleeve dimension

Brass construction

White-bronze coated finish

Two supplied nuts

7 Nm tightening torque

20 Nm lock-nut torque

Defined sensor position

Sensor face alignment reference

Repeatable replacement

Industrial mounting design

Single-piece pack

Applications

M12 cylindrical sensors

Industrial automation

Factory machinery

Sensor positioning

Machine monitoring

Position detection

Sensor replacement systems

Production equipment

Mechanical fixtures

Industrial retrofits

Installation Repeatability

The integrated end stop establishes a fixed mechanical reference for the sensor. This helps maintain consistent sensor positioning between installation and replacement. Reduced adjustment requirements can improve maintenance efficiency. The sleeve is especially useful where sensor position directly affects detection reliability. It provides a straightforward mechanical solution for repeatable sensor mounting.

Durable Mounting Interface

The coated brass body provides a robust threaded mounting interface. The supplied nuts allow the sleeve to be locked securely after positioning. The 12 mm internal diameter is designed around the intended M12 sensor size. The compact 34 mm dimension allows integration into machine structures. The E10806 is suitable for demanding industrial sensor installations.
