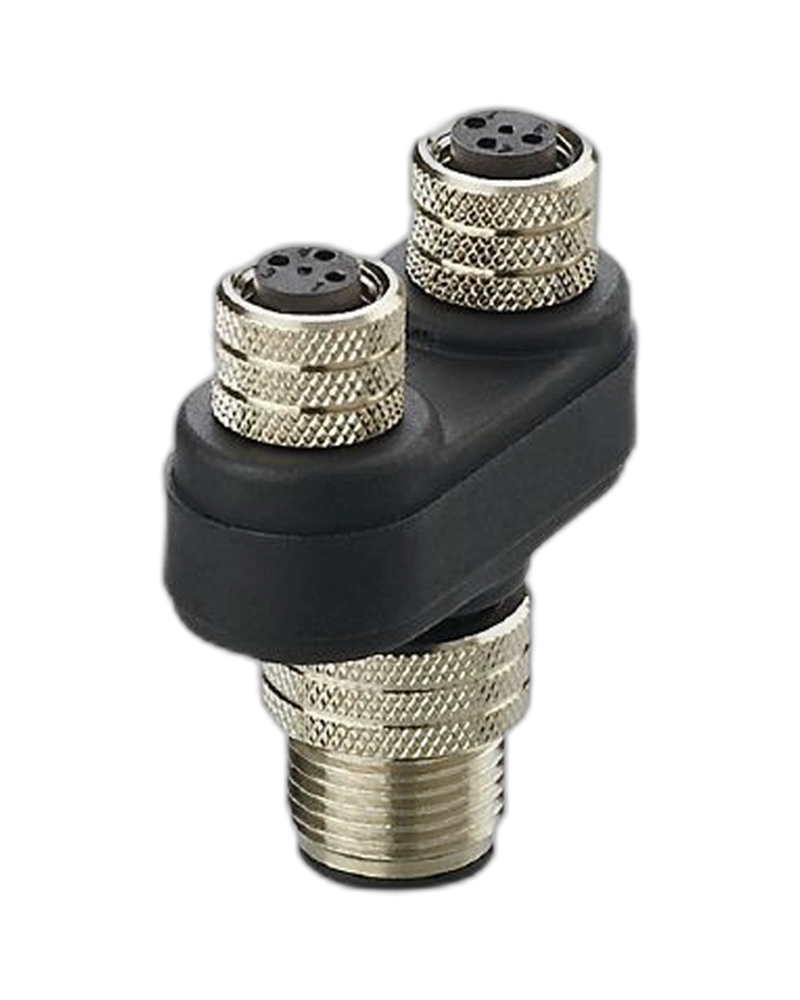

The IFM E10802 is a compact Y-splitter designed for industrial automation and factory automation connections. It uses M8 connector technology with gold-plated contacts. The splitter supports operating voltages below 60 V DC and a maximum current load of 3 A. Its PUR body, nickel-plated brass nut and IP67 protection provide a robust connection solution. The unit is silicone-free and supplied as one piece.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10802 provides a compact branching connection arrangement for industrial sensor wiring. Its gold-plated contacts support reliable electrical contact performance. The specified maximum current is 3 A per module/slot and 3 A total. The unit operates below 60 V DC with protection class III. Its M8 connector construction makes it suitable for compact sensor installations.
The splitter uses a PUR moulded body for industrial mechanical protection. Its locking nut is made from nickel-plated brass. The overall dimensions are 15.4 × 35.4 × 39.1 mm. The 21.8 g weight keeps the component compact for machine integration. The IP67 rating provides protection against dust and temporary water exposure under specified conditions.
The E10802 is designed for industrial applications and factory automation. Its silicone-free construction can be useful in installations with material restrictions. Gold-plated contacts provide a durable electrical interface. The compact Y-splitter configuration can help simplify sensor wiring layouts. Its IP67 enclosure protection supports use in demanding machine environments.
Y-splitter connection
Product code E10802
ZDO2F030MSS0000-00STGH040MSS
M8 connector technology
Gold-plated contacts
Silicone-free construction
Operating voltage <60 V DC
3 A current per module/slot
3 A total current
Protection class III
IP67 protection
PUR body
Nickel-plated brass nut
21.8 g weight
Compact dimensions
Industrial automation
Factory automation
Sensor wiring
Compact machine wiring
M8 connection branching
Control cabinet wiring
Machine sensor networks
Industrial equipment
Automation panels
Sensor distribution
The Y-splitter provides a practical way to branch sensor connections within compact automation equipment. Its M8 interface helps maintain a small installation footprint. Gold-plated contacts support reliable electrical connections. The 3 A current rating is suitable for compatible low-voltage sensor circuits. This can reduce wiring complexity around closely positioned sensors.
The PUR body provides a durable moulded construction for industrial environments. The nickel-plated brass locking hardware provides a secure connector interface. IP67 protection supports installations where dust and water exposure are possible. The silicone-free construction adds compatibility with industrial material requirements. The compact 21.8 g body is easy to integrate into machine layouts.
| Specification | E10802 Details |
|---|---|
| Product | Y-splitter |
| Order number | E10802 |
| Product designation | ZDO2F030MSS0000-00STGH040MSS |
| Product category | Y-splitter |
| Application | Industrial automation |
| Connector type | M8 |
| Connector configuration | Y-splitter |
| Operating voltage | <60 V DC |
| Protection class | III |
| Current per module/slot | 3 A |
| Total current | 3 A |
| Ambient temperature minimum | -25°C |
| Ambient temperature maximum | 90°C |
| Temperature range | -25…90°C |
| Protection rating | IP67 |
| Body material | PUR |
| Moulded body | PUR |
| Nut material | Brass |
| Nut surface | Nickel-plated |
| Contacts | Gold-plated |
| Silicone-free | Yes |
| Weight | 21.8 g |
| Dimensions | 15.4 × 35.4 × 39.1 mm |
| Connector coding | A-coded |
| Contact count | 4 |
| Electrical interface | M12 plug connection |
| Pack quantity | 1 piece |
| Protection design | Sealed moulded connection |
| Manufacturer | IFM electronic |
