Magnetic Performance

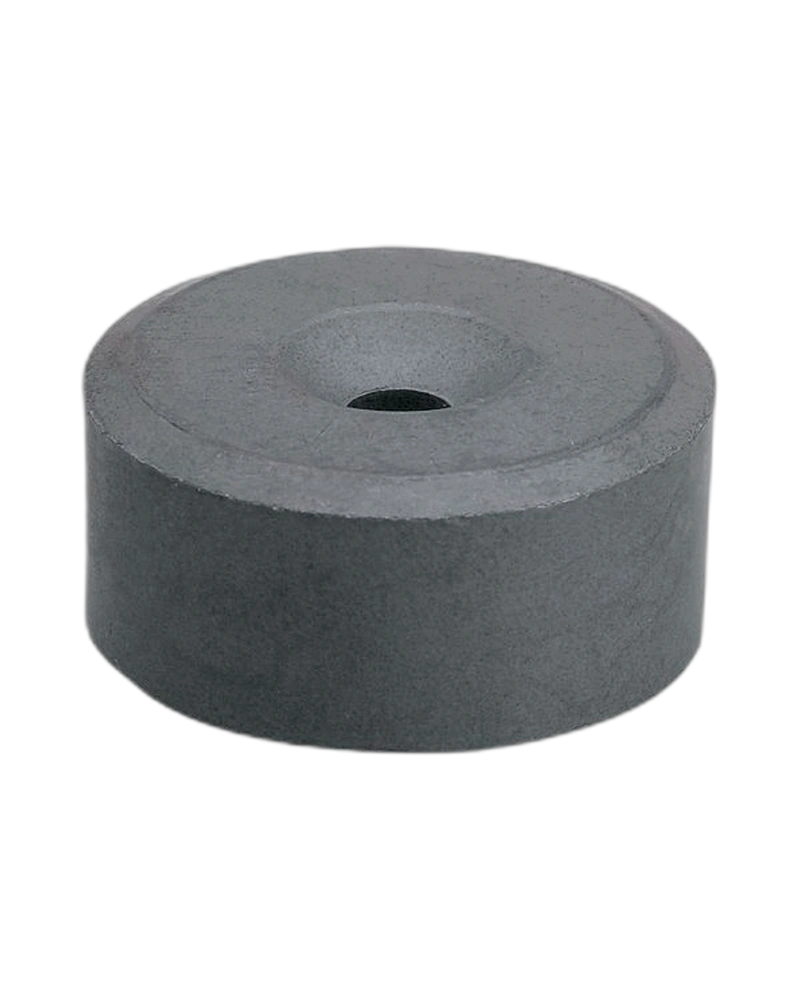

The E10753 generates a 120 mT magnetic field for compatible magnetic sensors. Its hard ferrite HF 26/22 material provides the magnetic target required for sensor switching. The 31 mm diameter gives the component a substantial sensing surface. This configuration is intended to support long sensing ranges. It can be used where a larger magnetic target is beneficial.

Robust Construction

The magnet uses hard ferrite HF 26/22 material. This provides a durable permanent magnetic target for industrial applications. Its 53.37 g weight gives the component a stable mechanical presence. The 31 × 15 mm form factor is suitable for larger sensor mechanisms. The component is supplied as a single piece for direct installation.

Thermal Capability

The E10753 is rated from -25 to 250°C ambient temperature. This allows it to operate in a wide range of industrial thermal environments. The material and construction support repeated magnetic sensing applications. Its operating range makes it suitable for equipment exposed to elevated temperatures. The magnet should be paired with a compatible sensor rated for the same installation conditions.

Key Features

Hard-ferrite damping magnet

HF 26/22 material

31 mm diameter

15 mm length

120 mT magnetic field

53.37 g weight

-25…250°C ambient range

Long sensing range capability

Magnetic sensor compatible

Permanent magnetic target

Robust industrial construction

Large target diameter

Single-piece pack

Compact axial length

Position sensing accessory

Applications

Magnetic position detection

Cylinder position sensing

Industrial automation

Machine movement monitoring

Factory equipment

Mechanical position detection

High-temperature machinery

Sensor target assemblies

Industrial control systems

Moving machine components

Reliable Magnetic Targeting

The 120 mT magnetic field provides a defined target for compatible magnetic sensors. The 31 mm diameter gives the magnet a substantial physical presence. This can simplify mechanical alignment in larger sensing arrangements. The hard-ferrite construction is suited to repeated industrial operation. The E10753 provides a practical target for reliable position sensing.

Heavy-Duty Sensor Applications

The larger 53.37 g construction is appropriate for industrial mechanisms requiring a robust magnetic target. Its -25…250°C temperature range supports demanding operating environments. The 31 × 15 mm geometry provides a practical combination of target area and mechanical thickness. The component can be installed as part of a fixed or moving machine assembly. It is particularly useful for larger magnetic sensor installations.
