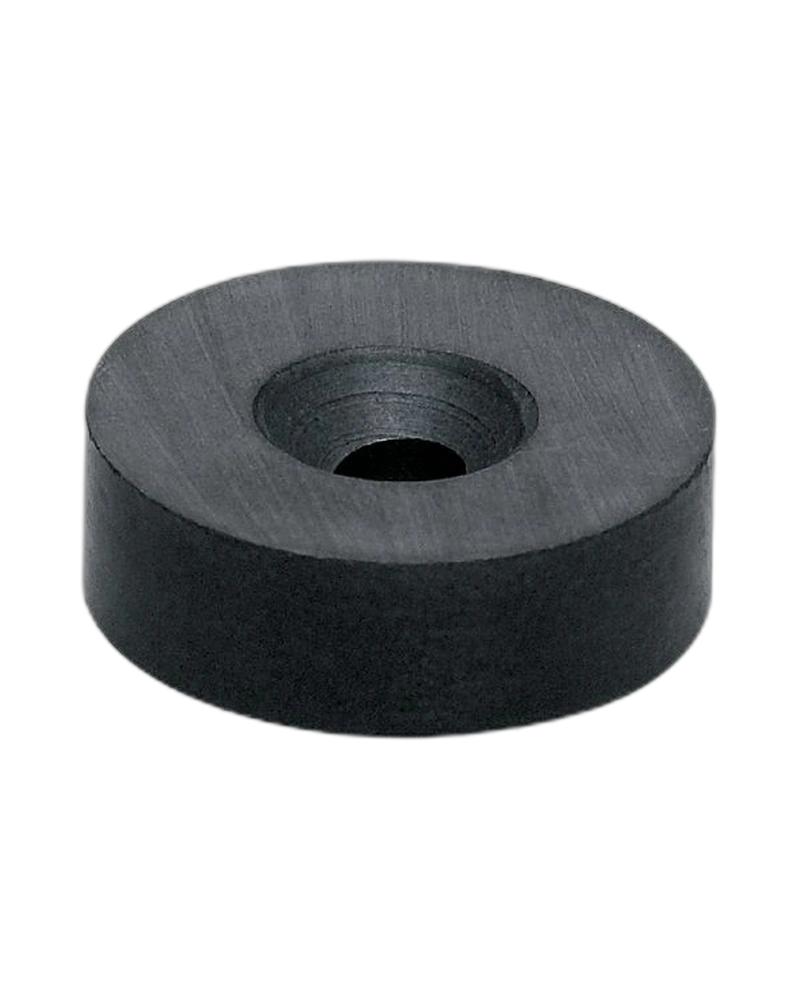

The IFM E10751 is a hard-ferrite damping magnet for magnetic sensor applications. It has a 20 mm outside diameter and 6.5 mm thickness. The magnet provides a magnetic field strength of 110 mT. It operates from -25 to 250°C and is designed for long sensing range applications. Its ring-style construction provides a practical mounting format for industrial position sensing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10751 uses hard ferrite HF 24/23 as its magnetic material. The material provides a magnetic field strength of 110 mT. The ring-style geometry includes a central opening that supports mechanical mounting. This configuration can simplify integration into moving assemblies. It is intended for reliable magnetic sensor actuation in industrial environments.
The E10751 is specified for an ambient temperature range of -25 to 250°C. This broad operating range supports use in machinery with elevated operating temperatures. The hard-ferrite material provides a durable magnetic target for compatible sensors. The component can also be used in concealed installation arrangements according to the IFM damping-magnet family. This gives designers flexibility when positioning the magnetic target.
The magnet measures 20 mm in diameter and 6.5 mm in length. Its central opening is approximately 9.5 mm, with a 4.3 mm hole feature shown in the technical drawing. The geometry is suited to mechanical mounting around a fixing point. Its 10.33 g weight keeps the magnetic target relatively lightweight. The E10751 provides a compact and practical solution for magnetic position sensing.
Hard-ferrite damping magnet
HF 24/23 magnetic material
20 mm outside diameter
6.5 mm thickness
110 mT magnetic field
-25…250°C operating range
Ring-style construction
Central mounting opening
Designed for magnetic sensors
Long sensing range capability
Compact mechanical design
Industrial construction
Single-piece pack
Permanent magnetic target
Position sensing accessory
Magnetic sensor actuation
Cylinder position sensing
Industrial automation
Machine position detection
Moving mechanism sensing
Factory automation
Mechanical limit detection
Compact sensor assemblies
High-temperature machinery
Concealed magnetic sensing
The ring-style geometry allows the E10751 to be integrated around a suitable mounting point. Its central opening helps provide a defined mechanical installation location. The 20 mm diameter offers a larger magnetic target than smaller damping magnets. Its 6.5 mm thickness keeps the assembly relatively compact. This design is useful for industrial position-detection mechanisms.
The 110 mT field strength is intended to provide effective magnetic actuation. The E10751 can support long sensing range applications when matched with an appropriate magnetic sensor. Its hard-ferrite construction provides a durable target for repeated machine movements. This can help maintain consistent sensor switching over the operating life. Proper sensor and magnet alignment remains essential.
| Specification | E10751 Details |
|---|---|
| Product | Damping magnet |
| Order number | E10751 |
| Product designation | MAGNET M3.0 HARD FERRITE |
| Product category | Damping magnet |
| Magnet material | Hard ferrite HF 24/23 |
| Magnetic field strength | 110 mT |
| Outside diameter | 20 mm |
| Thickness/length | 6.5 mm |
| Inner diameter shown | 9.5 mm |
| Hole diameter shown | 4.3 mm |
| Weight | 10.33 g |
| Minimum temperature | -25°C |
| Maximum temperature | 250°C |
| Temperature range | -25…250°C |
| Sensor type | Magnetic sensor |
| Sensing function | Magnetic actuation |
| Magnet type | Permanent magnet |
| Construction | Ring-style |
| Mounting opening | Yes |
| Long sensing range | Supported |
| Concealed installation | Supported by family design |
| Application | Industrial automation |
| Pack quantity | 1 piece |
| Mechanical footprint | Compact |
| Target function | Sensor switching |
| Field source | Permanent magnet |
| Installation | Mechanical mounting |
| Manufacturer | IFM electronic |
| Accessory group | Damping magnets |
