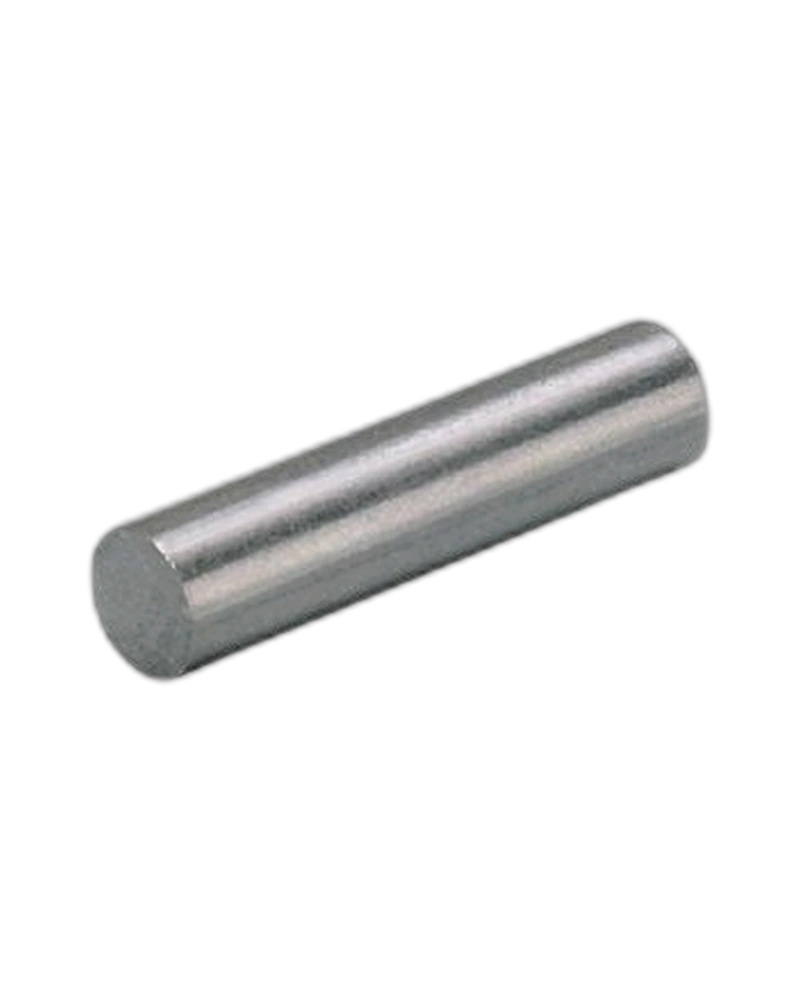

The IFM E10750 is an AlNiCo damping magnet designed for use with magnetic sensors. It has a compact 6 mm diameter and 25 mm length. The magnet provides a magnetic field strength of 110 mT for sensor actuation. Its ambient operating range extends from -100 to 500°C. The elongated geometry is suitable for mounting arrangements where a narrow magnetic target is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10750 uses AlNiCo as its magnetic material. This material provides a 110 mT magnetic field strength for compatible magnetic sensors. The magnet is designed to support long sensing ranges. Its cylindrical 6 × 25 mm form factor can be integrated into narrow mechanical assemblies. It provides a practical magnetic target for industrial position detection.
The E10750 operates from -100 to 500°C ambient temperature. This is an exceptionally broad temperature range for an industrial damping magnet. It allows the component to be considered for applications with substantial thermal exposure. The AlNiCo construction complements the temperature-oriented design of the product. Proper sensor compatibility and installation geometry should still be maintained.
The 6 mm diameter provides a relatively narrow mounting profile. Its 25 mm length allows the magnet to extend into suitable mechanical mounting features. The cylindrical geometry is useful for controlled positioning relative to a magnetic sensor. The 110 mT field strength provides a defined magnetic target. The E10750 is therefore suitable for compact industrial sensing assemblies.
AlNiCo damping magnet
6 mm diameter
25 mm length
110 mT magnetic field strength
-100 to 500°C ambient range
Cylindrical design
Magnetic sensor compatible
Long sensing range capability
Compact diameter
High-temperature operation
Industrial sensor accessory
Permanent magnetic target
Single-piece pack
Narrow mechanical profile
Suitable for demanding environments
Magnetic sensor actuation
Position detection
Industrial automation
Machine movement detection
Cylinder sensing
Compact sensor mechanisms
High-temperature equipment
Mechanical position monitoring
Factory automation
Concealed magnetic sensing
The 6 mm diameter gives the E10750 a narrow mechanical profile. This can help integrate the magnet into compact fixtures and moving assemblies. The 25 mm length provides useful magnetic target geometry without requiring a large diameter. Its cylindrical form supports straightforward mechanical integration. This makes it suitable for industrial equipment where mounting space is restricted.
The -100 to 500°C operating range makes the E10750 particularly suitable for high-temperature applications. The AlNiCo magnet provides stable magnetic functionality across a broad thermal range. This makes it useful in specialised industrial sensing environments. Its compact form allows it to be positioned close to the sensing location. Correct sensor spacing remains important for achieving the intended sensing response.
| Specification | E10750 Details |
|---|---|
| Product | Damping magnet |
| Order number | E10750 |
| Product designation | MAGNET M2.0/ALNICO |
| Product category | Damping magnet |
| Magnet material | AlNiCo |
| Magnetic field strength | 110 mT |
| Diameter | 6 mm |
| Length | 25 mm |
| Dimensions | Ø6 × 25 mm |
| Weight | 6.9 g |
| Minimum ambient temperature | -100°C |
| Maximum ambient temperature | 500°C |
| Temperature range | -100…500°C |
| Sensor compatibility | Magnetic sensors |
| Sensing function | Magnetic actuation |
| Long sensing range | Supported |
| Magnet construction | Cylindrical |
| Mechanical profile | Narrow |
| Mounting style | Magnetic target |
| Permanent magnet | Yes |
| Application class | Industrial |
| Pack quantity | 1 piece |
| Accessory type | Damping magnet |
| Field type | Permanent magnetic field |
| Target function | Sensor switching |
| Installation | Mechanical integration |
| Manufacturer | IFM electronic |
| Intended use | Magnetic position sensing |
| Air freight | Not suitable |
