The IFM E10749 is a compact samarium-cobalt damping magnet designed for magnetic sensors. Its 10 mm diameter and 3 mm length provide a small mechanical footprint. The magnet generates a magnetic field strength of 200 mT for reliable sensor actuation. It operates across an exceptionally wide ambient temperature range of -50 to 350°C. The magnet can also be installed behind aluminium or stainless steel for concealed sensing arrangements.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10749 is designed to provide a strong magnetic field for compatible magnetic sensors. Its samarium-cobalt material provides a 200 mT magnetic field strength. The compact 10 mm diameter allows integration into space-constrained mechanisms. The magnet can support long sensing distances when correctly paired with the sensor. Its geometry makes it suitable for compact position-detection arrangements.
This damping magnet is rated for ambient temperatures from -50 to 350°C. Such a broad range makes it suitable for applications exposed to significant thermal variation. Samarium-cobalt construction is appropriate for demanding magnetic sensing environments. The compact metal magnet can be integrated into mechanisms without requiring a large mounting volume. This makes the E10749 useful for specialised industrial sensor installations.
The E10749 supports hidden installation behind aluminium or stainless steel according to IFM. This allows designers to keep the magnet protected or visually concealed. The arrangement can also provide a cleaner mechanical design around the sensing point. Proper sensor-to-magnet positioning should be maintained for dependable switching. The magnet is intended specifically for use with compatible magnetic sensors.

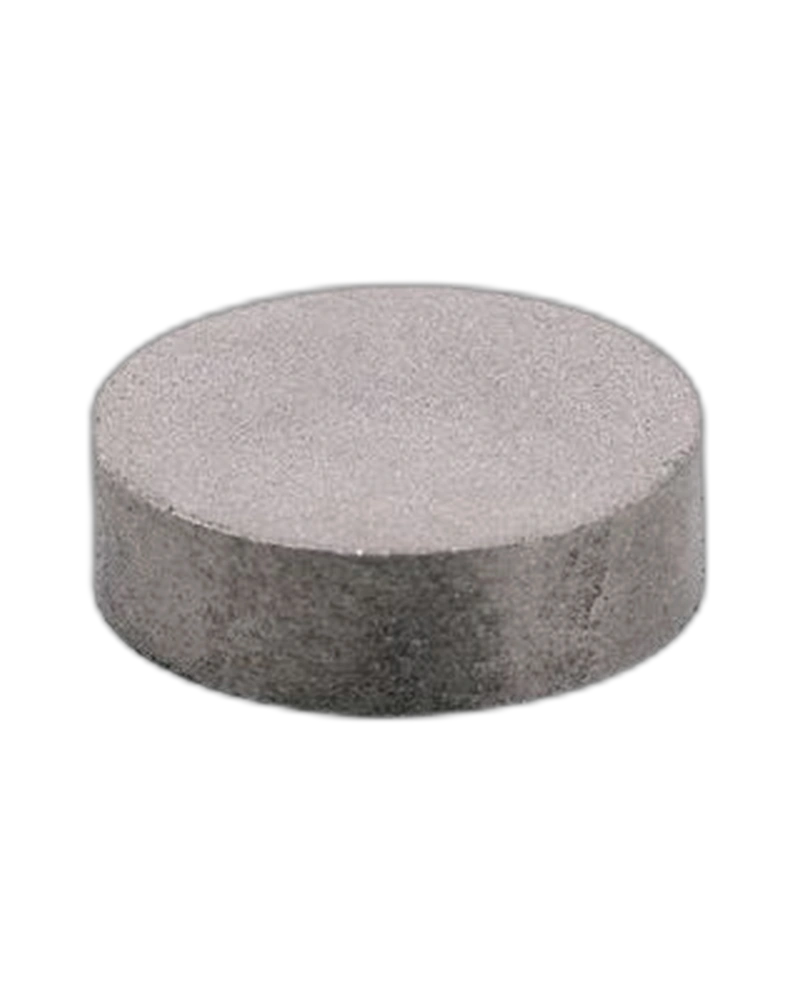

Samarium-cobalt damping magnet
10 mm diameter
3 mm length
200 mT magnetic field strength
-50 to 350°C ambient temperature
Compact construction
Designed for magnetic sensors
Supports long sensing range
Concealed installation capability
Suitable behind aluminium
Suitable behind stainless steel
Industrial sensing accessory
Single-piece pack
Compact sensing target
High-temperature capability
Magnetic sensor actuation
Cylinder position detection
Industrial automation
Machine position sensing
Compact sensing mechanisms
Concealed magnetic detection
High-temperature machinery
Metal enclosure sensing
Factory automation
Position monitoring
The small E10749 form factor allows designers to position the magnetic target close to the required sensing point. Its 200 mT field strength provides a strong magnetic target for compatible sensors. This can help simplify compact mechanical layouts. The 10 mm diameter is suitable where mounting space is limited. It provides a practical solution for precise magnetic switching arrangements.
The -50 to 350°C operating range gives the E10749 a particularly broad thermal capability. This makes it suitable for installations where conventional magnet materials may be less appropriate. Its samarium-cobalt construction is intended for demanding industrial sensing applications. The magnet can be integrated into mechanisms exposed to elevated temperatures. This expands the possible application range of magnetic sensor systems.
| Specification | E10749 Details |
|---|---|
| Product | Damping magnet |
| Order number | E10749 |
| Product designation | MAGNET M1.0 SAMARIUM COBALT |
| Product category | Damping magnet |
| Magnet material | Samarium cobalt |
| Magnetic field strength | 200 mT |
| Diameter | 10 mm |
| Length | 3 mm |
| Dimensions | Ø10 × 3 mm |
| Weight | 3.56 g |
| Ambient temperature minimum | -50°C |
| Ambient temperature maximum | 350°C |
| Temperature range | -50…350°C |
| Application | Magnetic sensor |
| Sensing function | Magnetic actuation |
| Concealed mounting | Supported |
| Aluminium installation | Supported |
| Stainless-steel installation | Supported |
| Long sensing range | Supported |
| Pack quantity | 1 piece |
| Magnet type | Damping magnet |
| Construction | Solid magnetic target |
| Installation style | Sensor target |
| Mechanical footprint | Compact |
| Field generation | Permanent magnet |
| Intended system | Magnetic sensor system |
| Air freight | Not suitable |
| Manufacturer | IFM electronic |
| Accessory class | Magnetic sensor accessory |
