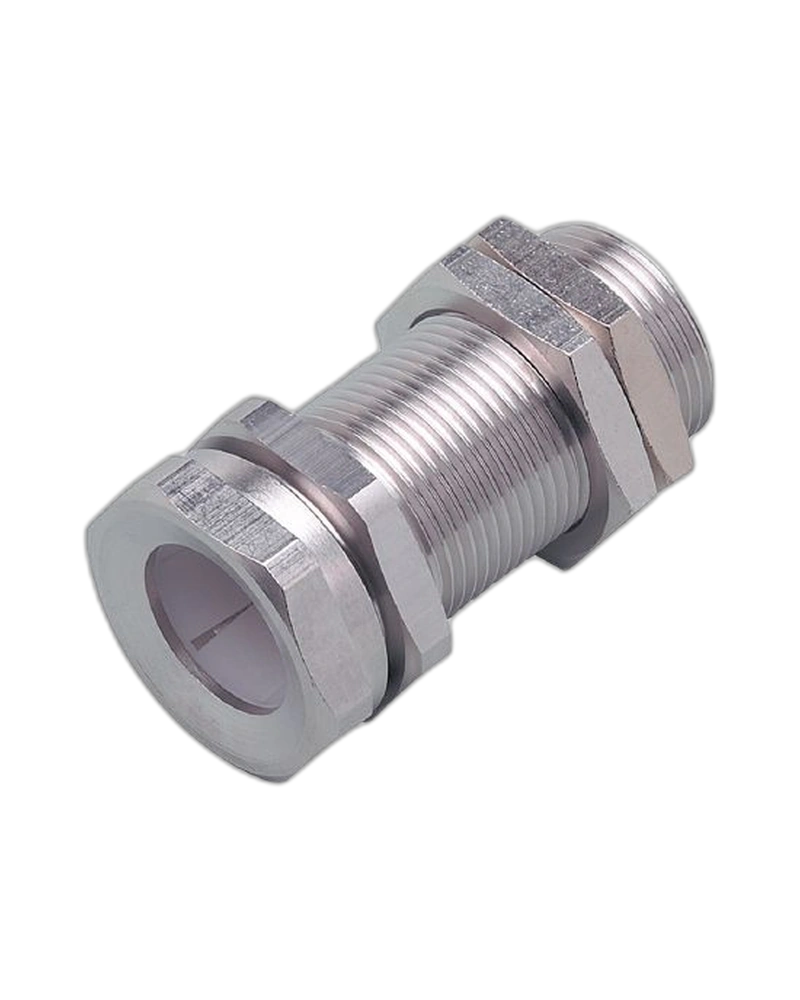

The IFM E10743 is a mounting sleeve with an integrated end stop for M30 cylindrical sensors. It provides a defined sensor installation position for consistent and repeatable mounting. The M36 × 1.5 external thread and 30 mm internal diameter are designed for compatible M30 sensor bodies. Its brass construction with white-bronze coating provides a robust solution for industrial mounting applications. Two supplied nuts simplify installation and secure the sensor assembly in position.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The integrated end stop establishes a fixed installation position for the sensor. This helps maintain consistent sensing geometry after installation or replacement. The sensing face is aligned to the right according to the IFM installation instruction. The sleeve supports repeatable positioning without requiring extensive adjustment after sensor replacement. This makes it useful where reliable sensor alignment is important.
The sleeve uses a brass body with white-bronze coating for industrial mechanical durability. Its M36 × 1.5 thread provides the mounting interface for compatible M30 sensors. The 30 mm internal diameter accommodates the intended sensor body size. The supplied nuts allow the sleeve to be fixed securely in the mounting position. The 192.7 g construction provides a substantial mounting component for industrial installations.
The E10743 is designed to simplify installation of cylindrical sensors in machinery. The defined end stop reduces the need for repeated manual positioning. Sensor replacement can therefore be performed while maintaining the established mounting reference. The specified tightening torque helps provide a secure mechanical installation. This design is suitable for production equipment where repeatable sensor positioning is required.
M30 cylindrical sensor mounting sleeve
Integrated mechanical end stop
M36 × 1.5 external thread
30 mm internal diameter
Brass construction with white-bronze coating
Two supplied mounting nuts
Defined sensor installation position
Sensor face alignment instruction
20 Nm tightening torque
40 Nm lock-nut tightening torque
192.7 g weight
Robust industrial construction
Easy sensor replacement
Repeatable sensor positioning
Pack quantity: 1 piece
Mounting M30 cylindrical sensors
Industrial automation machinery
Factory automation equipment
Sensor positioning assemblies
Machine monitoring systems
Production-line sensing
Mechanical sensor fixtures
Repeatable sensor replacement
Industrial equipment retrofits
The end-stop design helps preserve the established sensor position when a sensor is removed and replaced. This can reduce adjustment work during maintenance operations. The sleeve provides a repeatable mechanical reference for the sensing face. It is particularly useful on machines where sensor position directly affects detection reliability. The result is a more controlled installation and maintenance process.
The coated brass construction provides a durable mechanical interface for industrial sensor mounting. Threaded adjustment allows the sleeve to be positioned and secured accurately. The supplied nuts help lock the assembly after adjustment. Its compact cylindrical design integrates easily into sensor mounting arrangements. The E10743 is therefore suited to demanding industrial mounting environments.
| Specification | E10743 Details |
|---|---|
| Product | Mounting sleeve with end stop |
| Order number | E10743 |
| Product designation | FIXING/M30/BASIC/MS/END STOP |
| Product category | Mounting sleeve |
| Sensor type | Cylindrical sensor |
| Sensor size | M30 |
| End stop | Yes |
| Installation position | Defined |
| Sensor alignment | Sensing face to the right |
| External thread | M36 × 1.5 |
| Internal diameter | 30 mm |
| Overall sleeve length | 58 mm |
| Housing material | Brass |
| Surface finish | White-bronze coated |
| Nut material | Brass |
| Nut finish | White-bronze coated |
| Supplied nuts | 2 |
| Tightening torque | 20 Nm |
| Lock-nut torque | 40 Nm |
| Weight | 192.7 g |
| Pack quantity | 1 piece |
| Mounting method | Threaded mounting |
| Construction | Cylindrical sleeve |
| Mechanical stop | Integrated |
| Position repeatability | Defined by end stop |
| Maintenance feature | Easy sensor replacement |
| Installation reference | Mechanical end stop |
| Application environment | Industrial |
| Mounting function | Sensor fixation |
| Article status | Phase-out article |
