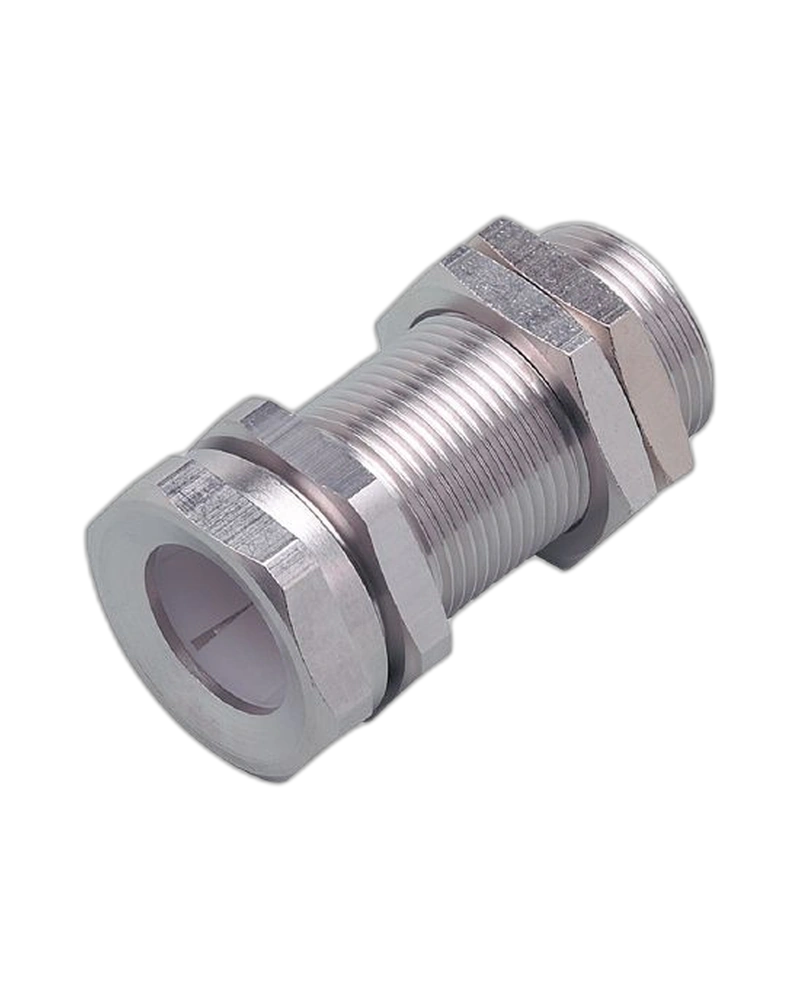

The IFM E10742 is a mounting sleeve with an integrated end stop for M18 cylindrical sensors. It uses an M24 × 1.5 external thread and an 18 mm internal diameter. The sleeve is manufactured from nickel-plated brass for robust mechanical support. Its overall length is approximately 58 mm and its weight is approximately 132–132 g. Two nickel-plated brass nuts are supplied for secure installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10742 is designed for cylindrical M18 sensors. Its 18 mm internal diameter provides the required sensor mounting interface. The integrated end stop establishes a repeatable sensor position. The M24 × 1.5 external thread provides the machine mounting interface. The sleeve supports stable sensor positioning during machine operation. It is suitable for industrial automation and position sensing.
The sleeve is manufactured from nickel-plated brass. Its external thread is M24 × 1.5. The internal diameter is 18 mm and the overall length is approximately 58 mm. Its weight is approximately 132 g. Two nickel-plated brass nuts are included. The construction provides a robust mechanical interface for M18 sensor installation.
The integrated end stop provides a consistent sensor installation depth. This helps maintain repeatable sensing geometry. The sleeve can be secured using the supplied nuts. Nickel-plated brass provides good mechanical durability. The mounting arrangement supports easy sensor replacement. It is suitable for industrial machine installations where repeatable sensor positioning is important.
E10742 order number
FIXING/M18/BASIC/MS/END STOP
For M18 sensors
18 mm internal diameter
M24 × 1.5 external thread
58 mm length
Nickel-plated brass
Approx. 132 g
Integrated end stop
2 supplied nuts
Defined sensor position
Mechanical fixation
Robust construction
Industrial mounting accessory
Threaded installation
M18 inductive sensors
Position sensors
Machine automation
Factory automation
Industrial machinery
Production systems
Sensor alignment
Assembly equipment
Conveyor machinery
Automation equipment
The end stop establishes repeatable sensor positioning. Nickel-plated brass provides robust mechanical construction. The M24 × 1.5 thread supports secure machine installation. Supplied nuts simplify assembly. The sleeve provides a stable M18 sensor mounting interface.
Install the sleeve into the correct M24 × 1.5 machine opening. Insert the M18 sensor until it contacts the end stop. Align the sensing face correctly. Secure the sleeve and nuts before operation. Inspect the threads and nuts during periodic maintenance.
| Specification | E10742 |
|---|---|
| Product type | Mounting sleeve |
| Order number | E10742 |
| Model | FIXING/M18/BASIC/MS/END STOP |
| Compatible sensor | M18 |
| Sensor diameter | 18 mm |
| Internal diameter | 18 mm |
| External thread | M24 × 1.5 |
| Length | 58 mm |
| Material | Brass |
| Surface finish | Nickel-plated |
| Weight | Approx. 132 g |
| End stop | Integrated |
| Lock nuts | 2 |
| Nut material | Nickel-plated brass |
| Mounting method | Threaded |
| Sensor positioning | End stop |
| Mechanical function | Sensor fixation |
| Installation | Threaded mounting |
| Application | Sensor mounting |
| Industrial use | Automation |
| Construction | Metal sleeve |
| Accessory category | Mounting accessory |
| Sensor interface | M18 |
| Mounting interface | M24 × 1.5 |
| Alignment | Defined |
| Mechanical retention | Threaded |
| Sensor replacement | Supported |
| Pack quantity | 1 |
| Primary function | M18 sensor positioning |
