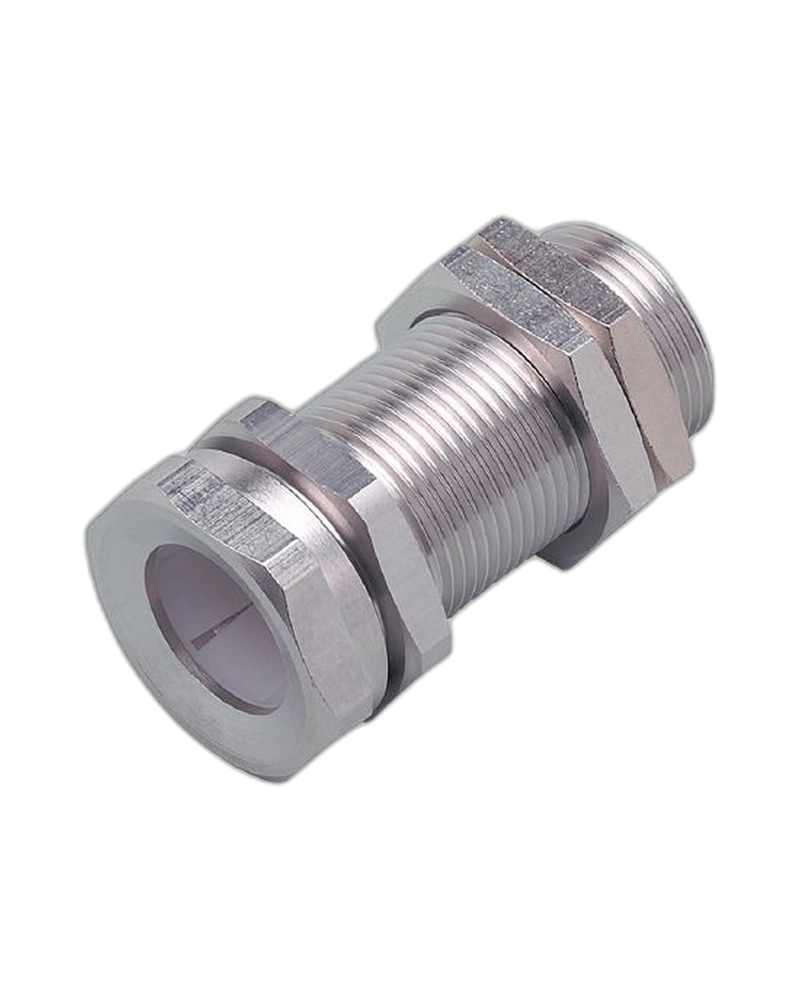

The IFM E10741 is a mounting sleeve with an end stop designed for M12 cylindrical sensors. It uses an M16 × 1 external thread and provides a 12 mm internal diameter for the sensor. The sleeve is manufactured from nickel-plated brass for robust mechanical construction. Its overall length is approximately 45 mm and its weight is about 55 g. Two nickel-plated brass nuts are supplied for secure installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10741 provides a defined mounting position for compatible M12 sensors. The internal diameter of 12 mm accommodates the specified sensor format. The integrated end stop establishes a repeatable sensor position. The M16 × 1 thread provides the external mounting interface. The sleeve helps simplify installation and sensor replacement. It is suitable for industrial position-sensing systems.
The mounting sleeve is manufactured from nickel-plated brass. It has an M16 × 1 thread and approximately 45 mm overall length. The internal diameter is 12 mm. The weight is approximately 55.1 g. Two nickel-plated brass nuts are supplied. The specified tightening torque is 7 Nm, with 20 Nm for the lock nuts.
The integrated end stop provides consistent sensor positioning. This can help maintain repeatable sensing geometry during installation. The mounting sleeve can be secured using the supplied nuts. The nickel-plated brass construction provides strong mechanical support. The design is useful for industrial machines where accurate sensor positioning is required. It provides a practical mechanical interface for M12 sensors.
E10741 order number
FIXING/M12/BASIC/MS/END STOP
For M12 sensors
M16 × 1 thread
12 mm internal diameter
45 mm length
Nickel-plated brass
Approx. 55.1 g
Integrated end stop
2 supplied nuts
7 Nm tightening torque
20 Nm lock-nut torque
Defined sensor positioning
Mechanical fixation
Industrial mounting accessory
M12 inductive sensors
Position sensors
Machine automation
Factory equipment
Sensor alignment
Industrial machinery
Production systems
Assembly equipment
Conveyor systems
Automation applications
The end stop provides repeatable sensor positioning. Nickel-plated brass provides robust mechanical construction. The M16 × 1 mounting thread provides secure installation. Supplied nuts simplify assembly. The sleeve supports accurate sensor alignment.
Install the sleeve into the compatible M16 × 1 mounting opening. Insert the M12 sensor until it reaches the end stop. Align the sensing face according to the required installation direction. Tighten the sleeve and lock nuts to the specified values. Inspect the threads and nuts during maintenance.
| Specification | E10741 |
|---|---|
| Product type | Mounting sleeve |
| Order number | E10741 |
| Model | FIXING/M12/BASIC/MS/END STOP |
| Compatible sensor | M12 |
| Sensor diameter | 12 mm |
| Internal diameter | 12 mm |
| External thread | M16 × 1 |
| Length | 45 mm |
| Material | Brass |
| Surface finish | Nickel-plated |
| Weight | 55.1 g |
| End stop | Integrated |
| Lock nuts | 2 |
| Nut material | Nickel-plated brass |
| Tightening torque | 7 Nm |
| Lock-nut torque | 20 Nm |
| Mounting method | Threaded |
| Sensor positioning | End stop |
| Mechanical function | Sensor fixation |
| Installation | Threaded mounting |
| Application | Sensor mounting |
| Industrial use | Automation |
| Construction | Metal sleeve |
| Accessory category | Mounting accessory |
| Sensor interface | M12 |
| Mounting interface | M16 × 1 |
| Alignment | Defined |
| Pack quantity | 1 |
| Primary function | M12 sensor positioning |
