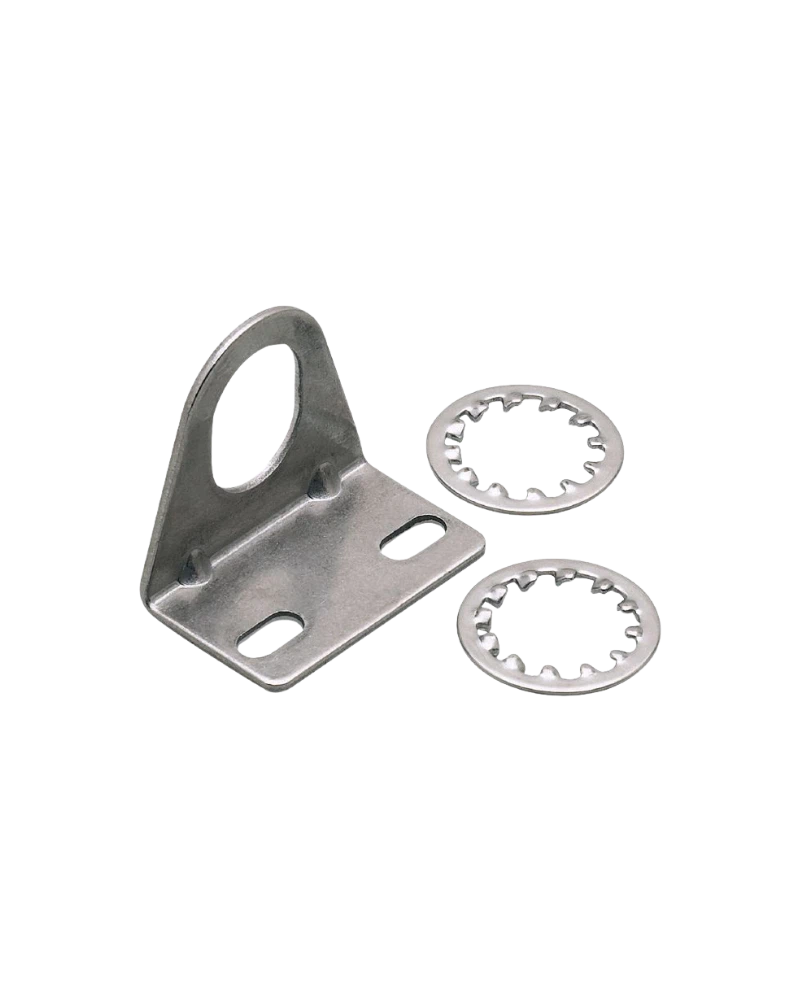

The IFM E10736 is a stainless-steel angle bracket designed for cylindrical M18 sensors. It provides robust surface mounting for industrial sensor installations. The bracket measures approximately 42 × 48 × 28 mm and weighs approximately 43 g. Its stainless steel 304/1.4301 construction supports demanding industrial environments. Two Ø18 mm lock washers for M18 sensors are included.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10736 is designed for cylindrical M18 sensor bodies. The angle configuration provides a stable surface-mounting platform. Its larger geometry supports the larger M18 sensor format. Stainless-steel construction provides high mechanical durability. The bracket supports consistent sensor alignment. It is suitable for factory and process automation equipment.
The bracket uses stainless steel 304/1.4301. Its dimensions are approximately 42 × 48 × 28 mm. The weight is approximately 43 g. Two Ø18 mm lock washers are supplied. The bracket provides a rigid mechanical mounting interface. One bracket is supplied per package.
The bracket is intended for surface mounting of M18 sensors. Its robust stainless-steel structure supports harsh industrial conditions. The lock washers help maintain sensor fixation. The angle design simplifies installation on machine surfaces. The compact bracket geometry helps maintain a defined sensing position. It is suitable for industrial automation and machine-building systems.
E10736 order number
ANGLE BRACKET M18
For cylindrical M18 sensors
Stainless steel 304/1.4301
42 × 48 × 28 mm
Approx. 43 g
Surface mounting
Angle design
2 × Ø18 mm lock washers
Robust construction
Mechanical sensor fixation
Defined sensor positioning
Industrial design
Compact mounting solution
One-piece pack
M18 proximity sensors
M18 position sensors
Factory automation
Machine building
Process machinery
Packaging equipment
Assembly systems
Conveyor systems
Industrial sensor mounting
Automation equipment
Stainless steel provides durable mechanical support. The angle configuration simplifies surface mounting. Supplied lock washers improve mechanical retention. The bracket provides repeatable M18 sensor positioning. Its robust structure is suitable for demanding industrial environments.
Install the bracket on a rigid machine surface. Position the M18 sensor through the mounting opening. Fit the supplied lock washer correctly. Align the sensing face before tightening. Inspect the bracket and locking hardware periodically.
| Specification | E10736 |
|---|---|
| Product type | Angle bracket |
| Order number | E10736 |
| Model | ANGLE BRACKET M18 |
| Compatible sensor | M18 |
| Sensor type | Cylindrical |
| Material | Stainless steel |
| Material grade | 304/1.4301 |
| Dimensions | 42 × 48 × 28 mm |
| Weight | 43 g |
| Mounting type | Surface mounting |
| Bracket design | Angle |
| Lock washers | 2 |
| Washer diameter | Ø18 mm |
| Mechanical function | Sensor fixation |
| Sensor positioning | Fixed |
| Installation | Surface |
| Construction | Stainless-steel bracket |
| Application | Sensor mounting |
| Industrial use | Automation |
| Environmental suitability | Harsh industrial environments |
| Accessory category | Mounting accessory |
| Mechanical retention | Lock washer |
| Sensor interface | M18 |
| Compact construction | Yes |
| Hardware included | Yes |
| Pack quantity | 1 |
| Primary function | M18 sensor mounting |
| Product family | IFM angle brackets |
| Supply format | Individual bracket |
