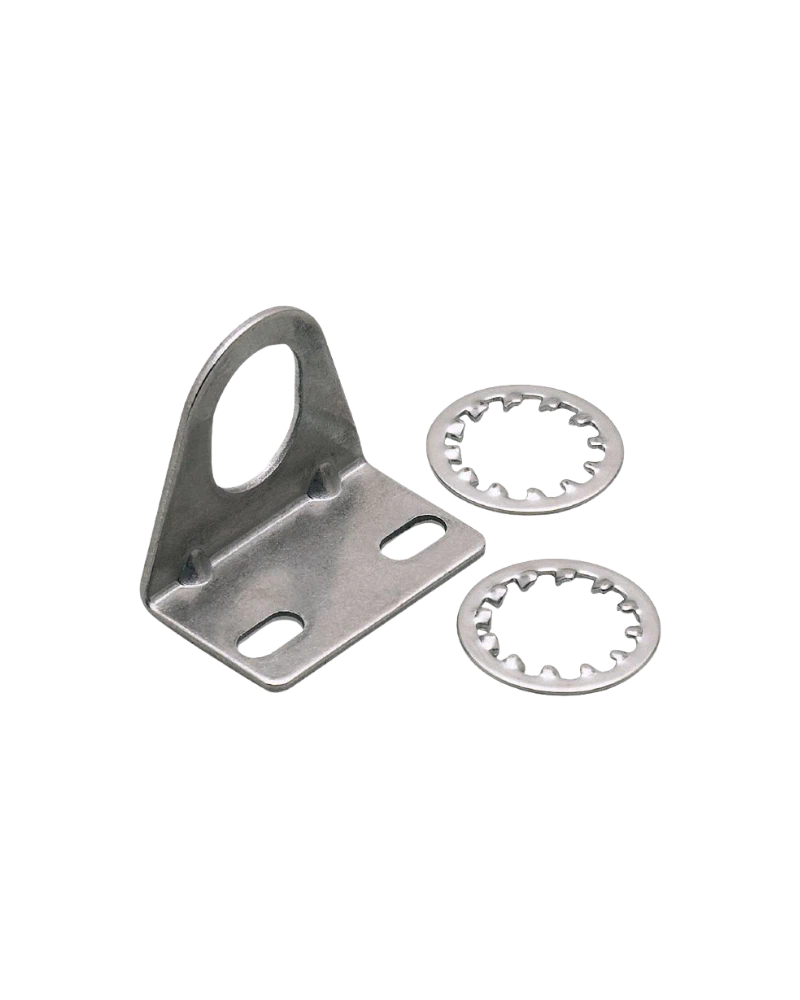

The IFM E10735 is a stainless-steel angle bracket designed for cylindrical M12 sensors. It provides a simple and reliable method of surface mounting compatible sensors. The bracket is manufactured from stainless steel 304/1.4301 for demanding industrial environments. Its dimensions are approximately 32 × 36 × 23 mm and its weight is approximately 18.4 g. Two Ø12 mm lock washers for M12 sensors are supplied with the bracket.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10735 is designed specifically for M12 cylindrical sensors. The angle configuration provides a convenient surface-mounting arrangement. Its compact structure allows practical installation on machine surfaces. Stainless-steel construction provides mechanical stability. The bracket supports consistent sensor positioning. It is suitable for industrial automation and machine-building applications.
The bracket is manufactured from stainless steel 304/1.4301. It measures approximately 32 × 36 × 23 mm. The weight is approximately 18.4 g. Two Ø12 mm lock washers are included. The stainless-steel body supports use in harsh industrial environments. The bracket is supplied individually.
The angle design provides convenient surface mounting. The supplied lock washers help maintain mechanical fixation. Stainless steel provides strong and durable construction. The compact dimensions help conserve machine space. The bracket simplifies installation of compatible M12 sensors. It is suitable for production and automation machinery.
E10735 order number
ANGLE BRACKET M12
For cylindrical M12 sensors
Stainless steel 304/1.4301
32 × 36 × 23 mm
Approx. 18.4 g
Surface mounting
Angle design
2 × Ø12 mm lock washers
Robust construction
Compact structure
Mechanical fixation
Sensor positioning
One-piece supply
Industrial accessory
M12 proximity sensors
M12 position sensors
Factory automation
Machine building
Packaging machinery
Assembly equipment
Conveyor systems
Industrial machines
Sensor mounting
Automation systems
The stainless-steel construction supports demanding environments. The angle design provides simple surface installation. Lock washers improve mechanical retention. The compact dimensions support space-efficient mounting. The bracket allows repeatable sensor positioning.
Position the bracket on a rigid surface. Insert the compatible M12 sensor. Install the supplied lock washer correctly. Align the sensor sensing face before tightening. Check the mounting hardware during scheduled maintenance.
| Specification | E10735 |
|---|---|
| Product type | Angle bracket |
| Order number | E10735 |
| Model | ANGLE BRACKET M12 |
| Compatible sensor | M12 |
| Sensor type | Cylindrical |
| Material | Stainless steel |
| Material grade | 304/1.4301 |
| Dimensions | 32 × 36 × 23 mm |
| Weight | 18.4 g |
| Mounting type | Surface mounting |
| Bracket design | Angle |
| Lock washers | 2 |
| Washer diameter | Ø12 mm |
| Mechanical function | Sensor fixation |
| Sensor positioning | Fixed |
| Installation | Surface |
| Construction | Stainless-steel bracket |
| Application | Sensor mounting |
| Industrial use | Automation |
| Environmental suitability | Harsh industrial environments |
| Accessory category | Mounting accessory |
| Mechanical retention | Lock washer |
| Sensor interface | M12 |
| Compact construction | Yes |
| Hardware included | Yes |
| Pack quantity | 1 |
| Primary function | M12 sensor mounting |
| Product family | IFM angle brackets |
| Supply format | Individual bracket |
