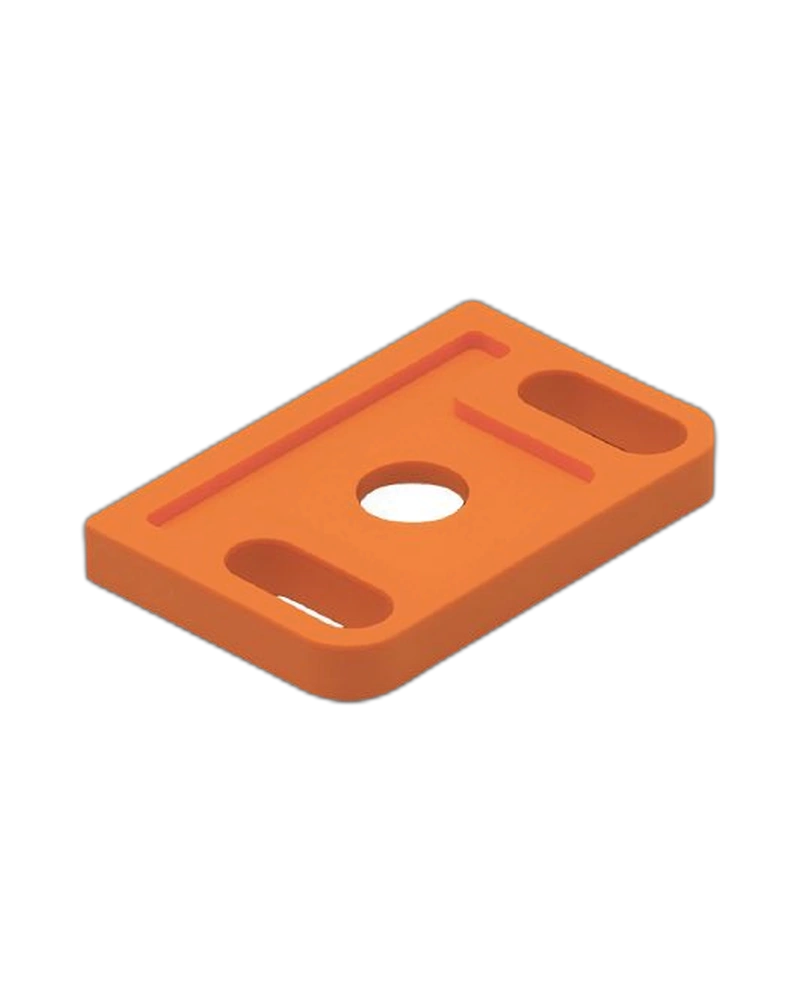

The IFM E10585 is a 5 mm spacer designed for height compensation between target pucks and IND dual sensors. It supports reliable mechanical positioning of sensor systems used on valve actuators. The spacer is manufactured from PBT and measures 40 × 26 × 5 mm. Its weight is approximately 5.7 g and it operates from -20 to 60 °C. The product is supplied individually for controlled sensor installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10585 provides a defined 5 mm mechanical offset. It is intended to compensate height differences between target pucks and IND dual sensors. Correct compensation helps maintain the intended sensor-to-target relationship. The spacer simplifies alignment during actuator assembly. Its compact form allows straightforward integration. It is designed for reliable industrial sensor installation.
The spacer uses PBT material. Its dimensions are approximately 40 × 26 × 5 mm. The weight is approximately 5.7 g. The 5 mm thickness provides the required height adjustment. The component is suitable for industrial actuator mounting systems. One piece is supplied per package.
The E10585 is intended for valve actuator sensor systems. It can compensate mechanical differences during installation. The spacer helps establish reliable sensor alignment. Its PBT construction provides a stable and lightweight mounting component. The defined 5 mm thickness simplifies installation planning. It is suitable for process and factory automation.
E10585 order number
MOUNTING BRACKET 5MM/IND
5 mm height compensation
For IND dual sensors
Target puck compatibility
PBT material
40 × 26 × 5 mm
Approx. 5.7 g
-20…60 °C
Sensor alignment support
Valve actuator accessory
Compact design
Defined spacer thickness
One-piece supply
Industrial mounting component
IND dual sensors
Valve actuators
Target puck systems
Rotary actuators
Process automation
Factory automation
Sensor alignment
Position monitoring
Industrial machinery
Automation equipment
The 5 mm offset provides precise installation compensation. PBT provides lightweight mechanical construction. The spacer supports reliable sensor alignment. It helps simplify actuator installation. The compact form integrates easily with compatible mounting arrangements.
Install the spacer at the designated mounting location. Confirm the 5 mm offset is appropriate for the assembly. Align the target puck and sensor correctly. Secure all mounting hardware before commissioning. Inspect the spacer for mechanical damage during maintenance.
| Specification | E10585 |
|---|---|
| Product type | Spacer |
| Order number | E10585 |
| Model | MOUNTING BRACKET 5MM/IND |
| Sensor technology | Inductive |
| Compatible sensor | IND dual sensor |
| Target component | Target puck |
| Height compensation | 5 mm |
| Material | PBT |
| Dimensions | 40 × 26 × 5 mm |
| Weight | 5.7 g |
| Ambient temperature | -20…60 °C |
| Mounting function | Height compensation |
| Mechanical function | Sensor alignment |
| Application equipment | Valve actuators |
| Installation | Sensor mounting |
| Construction | Spacer plate |
| Sensor positioning | Height-adjusted |
| Accessory category | Sensor mounting |
| Industrial use | Automation |
| Target puck compatibility | Yes |
| Dual sensor compatibility | Yes |
| Mechanical support | Yes |
| Installation purpose | Height compensation |
| Actuator application | Yes |
| Pack quantity | 1 |
| Primary function | Sensor positioning |
| Material type | Thermoplastic |
| Product family | IFM accessories |
| Component type | Spacer |
