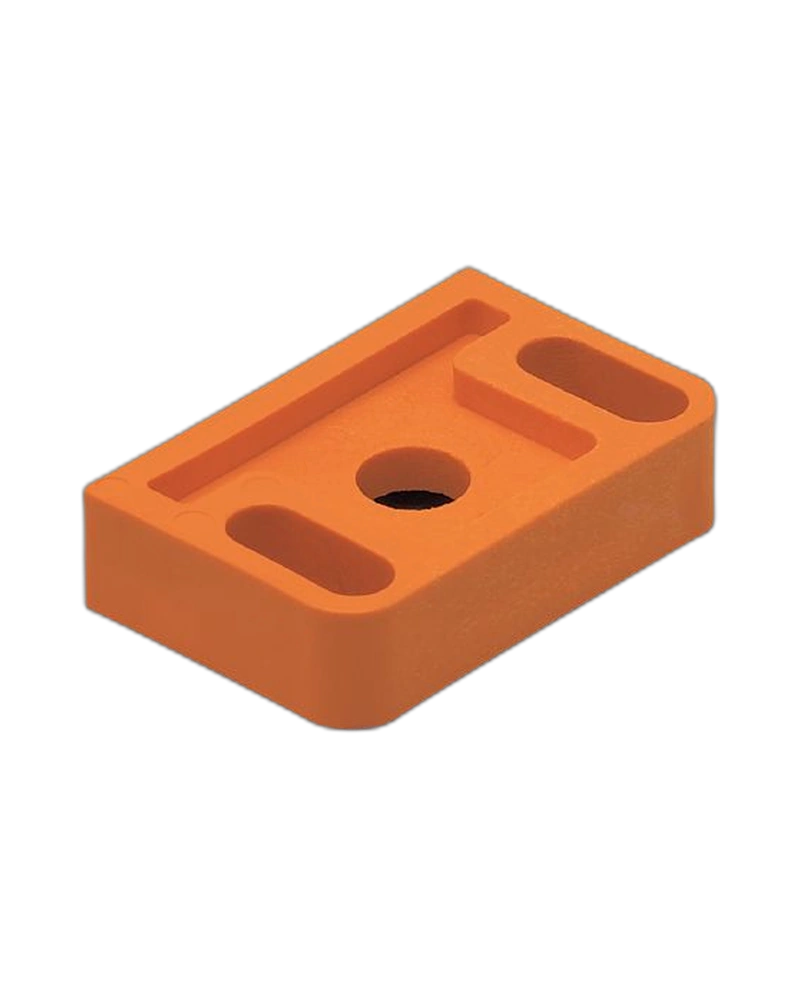

The IFM E10579 is a 10 mm spacer designed for inductive sensors used with target pucks and dual-sensor arrangements. It compensates height differences between the target puck and the IND dual sensor. The spacer is manufactured from PBT for a lightweight and robust structure. Its dimensions are 40 × 26 × 10 mm and its weight is approximately 10.5–10.7 g. The component operates from -20 to 60 °C and is supplied as one piece.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10579 is designed to compensate for a 10 mm height difference. This helps establish the correct mechanical relationship between target pucks and IND dual sensors. Proper height compensation supports reliable valve-actuator operation. The spacer provides a defined mechanical offset. Its dedicated geometry makes installation straightforward. It is intended for compatible inductive sensor assemblies.
The spacer uses PBT material. Its dimensions are approximately 40 × 26 × 10 mm. The weight is approximately 10.5–10.7 g depending on catalogue measurement. The compact design provides the required 10 mm height compensation. The component operates from -20 to 60 °C. One spacer is supplied per package.
The spacer is intended for arrangements involving target pucks and IND dual sensors. It helps establish reliable sensor positioning on valve actuators. The 10 mm offset compensates for differences in installation height. The PBT construction provides a practical mechanical interface. The spacer can simplify alignment during assembly. It is suitable for industrial valve-position applications.
E10579 order number
MOUNTING BRACKET 10MM/IND
10 mm height compensation
For IND dual sensors
For target pucks
PBT construction
40 × 26 × 10 mm
Approx. 10.5–10.7 g
-20…60 °C
Defined mechanical offset
Sensor alignment support
Valve actuator accessory
Compact construction
One-piece pack
IND dual sensors
Target puck assemblies
Valve actuators
Rotary actuators
Industrial automation
Process automation
Valve-position monitoring
Sensor alignment
Machine automation
Industrial control systems
The 10 mm offset provides controlled height compensation. PBT provides lightweight mechanical construction. The spacer supports reliable sensor positioning. It helps simplify valve actuator installation. Its compact geometry provides a dedicated mounting solution.
Position the spacer between the target puck and compatible sensor arrangement. Ensure the 10 mm compensation is correctly oriented. Align the sensor according to the actuator installation requirements. Check mechanical fixation before commissioning. Inspect the spacer for cracks or deformation during maintenance.
| Specification | E10579 |
|---|---|
| Product type | Spacer |
| Order number | E10579 |
| Model | MOUNTING BRACKET 10MM/IND |
| Application | Inductive sensor mounting |
| Compatible sensor | IND dual sensor |
| Target interface | Target puck |
| Height compensation | 10 mm |
| Material | PBT |
| Dimensions | 40 × 26 × 10 mm |
| Weight | Approx. 10.5–10.7 g |
| Ambient temperature | -20…60 °C |
| Mounting function | Height compensation |
| Mechanical function | Sensor alignment |
| Application equipment | Valve actuators |
| Installation | Sensor mounting |
| Construction | Spacer plate |
| Sensor positioning | Height-adjusted |
| Material type | Thermoplastic |
| Accessory category | Sensor mounting |
| Industrial use | Automation |
| Mechanical support | Yes |
| Target puck compatibility | Yes |
| Dual sensor compatibility | Yes |
| Installation purpose | Height compensation |
| Actuator application | Yes |
| Pack quantity | 1 |
| Primary function | Sensor height compensation |
| Product family | IFM mounting accessories |
| Component type | Spacer |
