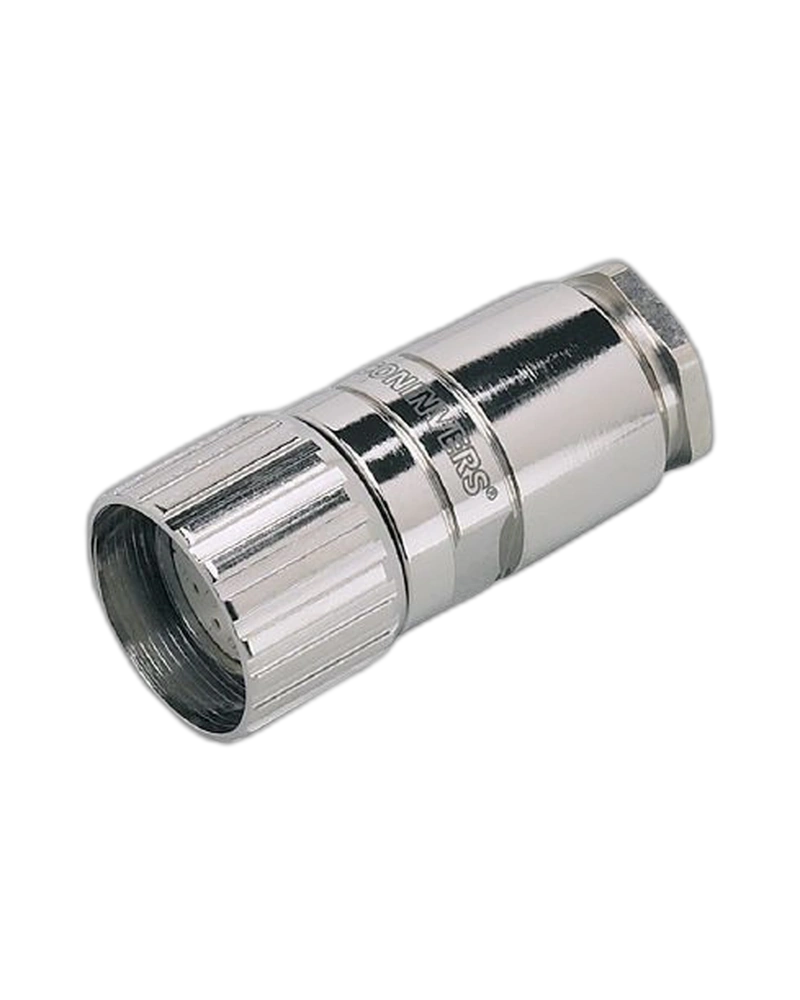

The IFM E10448 is a straight 12-contact wireable socket designed for splitter boxes with an M23 connector. It operates from 10 to 30 V DC and supports a maximum total current of 7.5 A. The connector uses a robust nickel-plated brass housing and nut for industrial durability. Soldering connections support conductors up to 1 mm² and cable sheaths from 10 to 14 mm. IP65 protection and a -25…90 °C operating range make it suitable for harsh industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10448 uses a straight M23 connector with 12 contacts. The straight design supports direct cable routing from the connector. It is intended for splitter boxes using M23 interfaces. The metal housing provides robust mechanical protection. Nickel plating improves the surface finish and durability. The connector is designed for field-wirable industrial applications.
The socket operates from 10 to 30 V DC. Maximum total current load is 7.5 A. Soldering connections support conductors up to 1 mm². The cable sheath diameter range is 10–14 mm. The 12-contact configuration supports multiple electrical circuits. IP65 protection provides useful environmental protection.
The housing and nut are made from nickel-plated brass. The overall dimensions are approximately 26 × 26 × 49 mm. The weight is approximately 77 g. The straight M23 connector provides a compact connection arrangement. The metal construction is intended for harsh industrial environments. One socket is supplied individually.
E10448 order number
SDOGM120MSSFKPG
Wirable socket
M23 connector
12 contacts
Straight design
10…30 V DC
7.5 A maximum total current
Soldering connection
≤1 mm² conductor
10–14 mm cable sheath
Nickel-plated brass body
Nickel-plated brass nut
IP65
-25…90 °C
Approx. 77 g
26 × 26 × 49 mm
M23 splitter boxes
Industrial automation
Sensor distribution
Factory automation
Machine control
Control cabinets
Production machinery
Industrial connection systems
Field wiring
Automation equipment
The 12-contact M23 interface supports multiple circuits. The straight configuration simplifies cable routing. Nickel-plated brass provides strong mechanical construction. Soldering supports secure field wiring. IP65 protection helps support industrial installations.
Prepare the cable according to the soldering requirements. Maintain the specified cable sheath diameter. Solder each conductor to the correct contact. Secure the M23 connection correctly. Inspect the solder joints during scheduled maintenance.
| Specification | E10448 |
|---|---|
| Product type | Wirable socket |
| Order number | E10448 |
| Model | SDOGM120MSSFKPG |
| Connector | M23 |
| Connector orientation | Straight |
| Contacts | 12 |
| Operating voltage | 10…30 V DC |
| Maximum total current | 7.5 A |
| Connection method | Soldering |
| Conductor size | ≤1 mm² |
| Cable sheath diameter | 10–14 mm |
| Housing material | Brass |
| Housing finish | Nickel-plated |
| Nut material | Brass |
| Nut finish | Nickel-plated |
| Protection | IP65 |
| Temperature | -25…90 °C |
| Weight | 77 g |
| Dimensions | 26 × 26 × 49 mm |
| Housing type | Metal |
| Application | Splitter boxes |
| Industrial use | Automation |
| Field wiring | Yes |
| Mounting | Cable connection |
| Connector function | M23 interface |
| Environmental use | Harsh industrial |
| Pack quantity | 1 |
| Primary function | M23 sensor connection |
| Product family | IFM wireable sockets |
