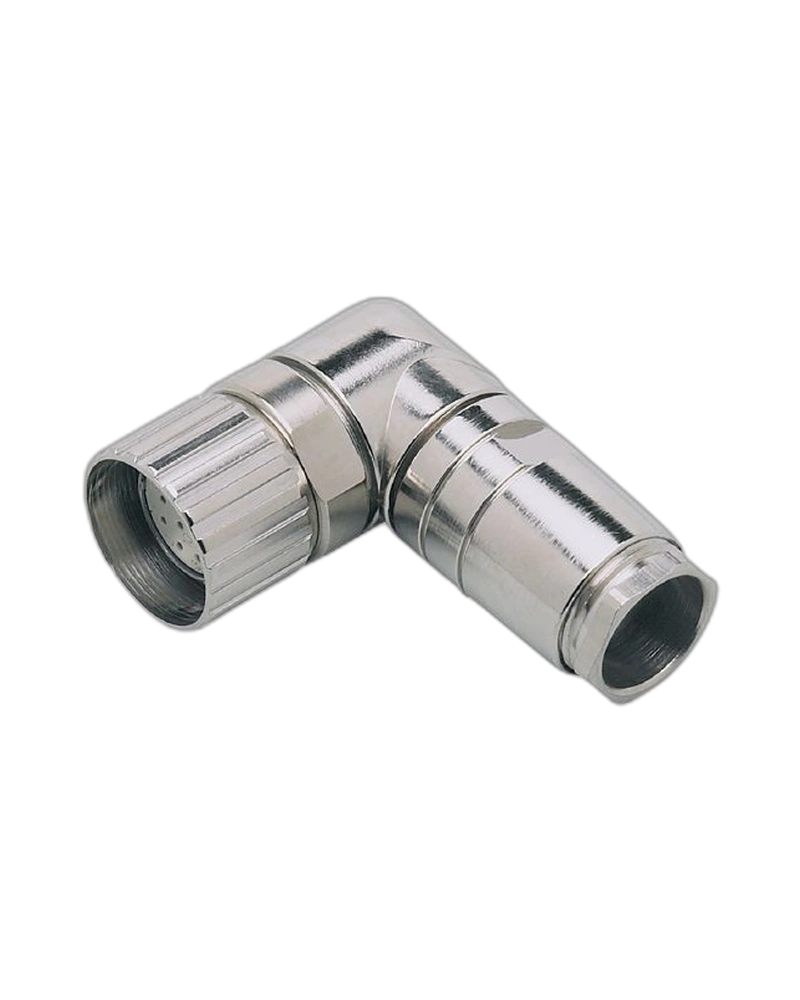

The IFM E10447 is a 12-contact wireable socket designed for splitter boxes using an M23 connector. It uses a robust nickel-plated brass housing for demanding industrial environments. The connector operates from 10 to 30 V DC and supports a maximum total current of 7.5 A. Its M23 angled connector and soldering connection provide a secure field-wiring arrangement. IP65 protection and a -25…90 °C temperature range support industrial automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10447 is designed for splitter boxes equipped with an M23 connector. Its 12-contact configuration provides a larger electrical interface than standard sensor connectors. The angled M23 arrangement can help with cable routing in restricted areas. The nickel-plated brass housing provides robust mechanical construction. Soldering allows direct field cable termination. The connector is intended for industrial connection systems.
The socket operates from 10 to 30 V DC. Maximum total current load is 7.5 A. The electrical connection uses soldering with conductor sizes up to 1 mm². The 12-contact M23 connector provides the mating interface. IP65 protection supports industrial environmental exposure. The connector is designed for splitter-box and automation applications.
The housing and nut use nickel-plated brass. The dimensions are approximately 51 × 26 × 58 mm. The weight is approximately 144.5 g. The M23 connector is angled. The robust metal construction is suitable for harsh industrial environments. One socket is supplied per package.
E10447 order number
SDOAM120MSSFKPG
Wirable socket
M23 connector
12 contacts
Angled M23 design
10…30 V DC
7.5 A maximum total current
Soldering connection
≤1 mm² conductors
10–14 mm cable sheath
Nickel-plated brass body
Nickel-plated brass nut
IP65
-25…90 °C
Approx. 144.5 g
51 × 26 × 58 mm
Splitter boxes
M23 connection systems
Industrial automation
Factory automation
Control cabinets
Machine wiring
Sensor distribution
Production equipment
Industrial networking
Field connection systems
The 12-contact design supports complex splitter-box wiring. The metal construction provides high mechanical durability. The angled connector supports practical cable routing. Soldering provides a secure electrical termination. IP65 protection supports industrial environments.
Prepare the cable according to the soldering connection requirements. Maintain the 10–14 mm cable sheath range. Ensure all contacts are correctly soldered. Secure the M23 connector properly. Inspect solder joints and housing condition during maintenance.
| Specification | E10447 |
|---|---|
| Product type | Wirable socket |
| Order number | E10447 |
| Model | SDOAM120MSSFKPG |
| Application | Industrial automation |
| Connector | M23 |
| Connector orientation | Angled |
| Contacts | 12 |
| Operating voltage | 10…30 V DC |
| Maximum current | 7.5 A |
| Connection method | Soldering |
| Maximum conductor size | 1 mm² |
| Cable sheath diameter | 10–14 mm |
| Body material | Brass |
| Body finish | Nickel-plated |
| Nut material | Brass |
| Nut finish | Nickel-plated |
| Protection | IP65 |
| Temperature | -25…90 °C |
| Weight | 144.5 g |
| Dimensions | 51 × 26 × 58 mm |
| Housing type | Metal |
| Connector function | Splitter-box interface |
| Mounting | Cable connection |
| Field wiring | Yes |
| Industrial environment | Harsh environments |
| Pack quantity | 1 |
| Primary function | M23 connection |
| Product family | IFM connection accessories |
