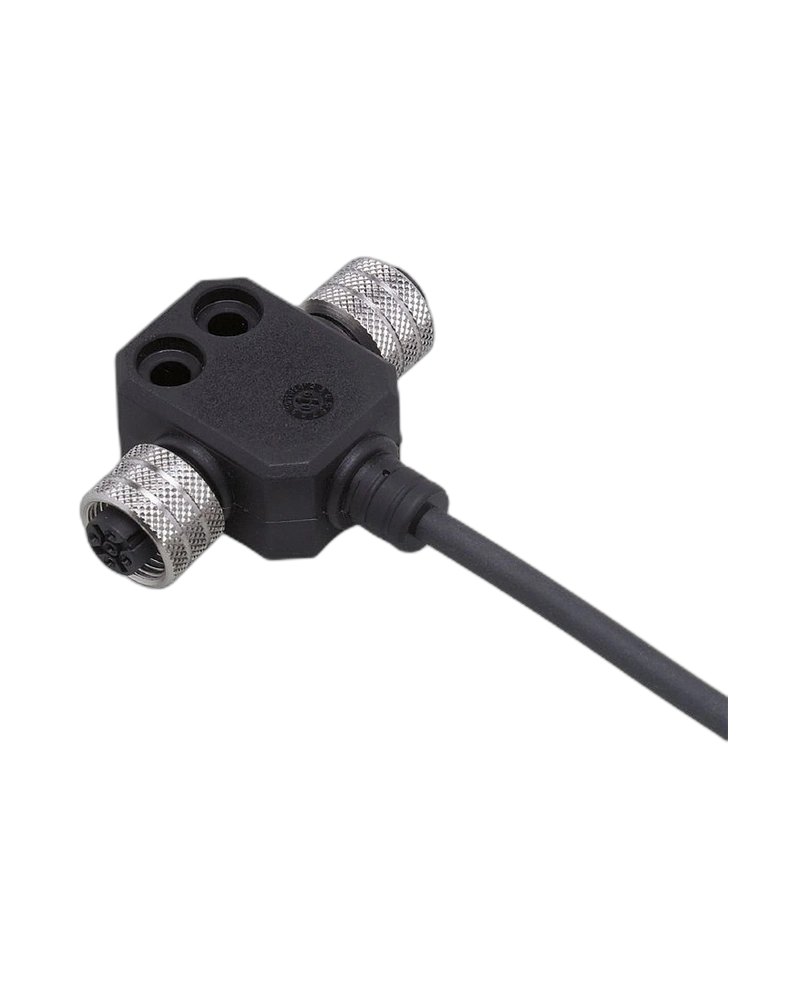

The IFM E10437 is a two-way wiring block designed for industrial DC sensor and automation connections. It supports 10…55 V DC and a maximum total current of 4 A. The unit uses a 5 m halogen-free PUR cable with four 0.25 mm² conductors. Gold-plated contacts provide durable electrical connection, while the TPU body and nickel-plated brass nut provide robust mechanical construction. IP67 protection and a -25…80 °C operating range support demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10437 provides a two-way wiring arrangement for compatible industrial sensors. The splitter design allows two connection locations to be integrated into one wiring assembly. Its DC electrical design supports industrial automation equipment. The 4 A maximum current rating provides useful capacity for compatible circuits. The compact wiring block simplifies distributed sensor connection. It is designed for structured industrial connection technology.
The cable is 5 m long and uses PUR insulation. Four 0.25 mm² conductors are provided. The cable diameter is approximately 5 mm. The cable is halogen-free. Gold-plated contacts provide reliable electrical connection. The body uses TPU and the nut uses nickel-plated brass.
The wiring block operates from -25 to 80 °C. IP67 protection helps protect the connection from dust and water exposure. The cable is free from halogens and silicone. The knurled nut tightening torque is 0.5 Nm. The construction is suitable for industrial automation environments. It is intended for reliable sensor connection and distribution.
E10437 order number
ZDO2H040MSS0005H05
Two-way wiring block
DC electrical design
10…55 V DC
4 A total current
4 A per location
5 m PUR cable
4 × 0.25 mm² conductors
Approx. Ø5 mm cable
Halogen-free
Silicone-free
TPU body
Nickel-plated brass nut
Gold-plated contacts
IP67
-25…80 °C
0.5 Nm nut torque
Industrial sensor distribution
DC automation systems
Factory automation
Machine control
Sensor connection
Production machinery
Packaging equipment
Industrial control systems
Field wiring
Automation equipment
The two-way arrangement simplifies distributed sensor wiring. The 5 m cable provides flexible routing. Gold-plated contacts support reliable electrical connection. Halogen-free cable construction provides a modern industrial cable solution. IP67 protection supports demanding factory environments.
Route the cable without sharp bends or mechanical tension. Use the specified tightening torque for the knurled nut. Ensure all connections are correctly seated. Keep the connector interfaces clean. Inspect the cable and housing during maintenance.
| Specification | E10437 |
|---|---|
| Product type | Wiring block / Y-splitter |
| Order number | E10437 |
| Model | ZDO2H040MSS0005H05 |
| Electrical design | DC |
| Number of ways | 2 |
| Operating voltage | 10…55 V DC |
| Maximum total current | 4 A |
| Maximum current/location | 4 A |
| Cable length | 5 m |
| Cable material | PUR |
| Cable colour | Black |
| Conductors | 4 |
| Conductor size | 0.25 mm² |
| Strand construction | 32 × Ø0.1 mm |
| Cable diameter | 5 mm |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Body material | TPU |
| Nut material | Brass |
| Nut finish | Nickel-plated |
| Contact finish | Gold-plated |
| Protection | IP67 |
| Temperature | -25…80 °C |
| Knurled nut torque | 0.5 Nm |
| Connection type | Wiring block |
| Application | Industrial automation |
| Pack quantity | 1 |
| Primary function | Sensor signal distribution |
