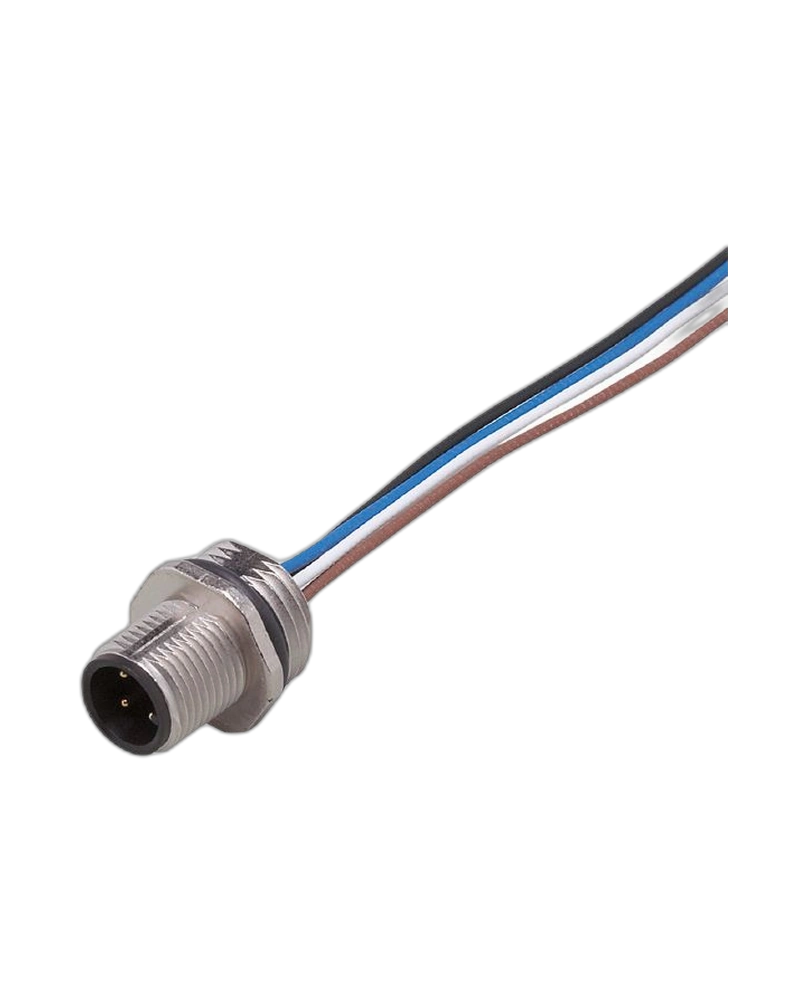

The IFM E10411 is a straight PG9-to-M12 bulkhead connector designed for industrial sensor connections. It provides an M12 interface with a PG9 mounting arrangement. The connector supports 250 V AC/DC and a 4 A current rating at up to 40 °C. Its die-cast zinc, nickel-plated housing provides a robust mechanical construction. The 0.5 m PVC cable and IP67 protection make it suitable for industrial connection systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10411 provides a transition between a PG9 mounting interface and an M12 connector. Its straight configuration supports direct cable routing. The M12 connector provides the sensor-side electrical interface. The PG9 mounting arrangement supports installation into compatible equipment. The die-cast zinc construction provides mechanical strength. An O-ring is used in the bulkhead arrangement for sealing.
The adapter supports 250 V AC/DC. Its current rating is 4 A under the specified temperature condition. The four-contact M12 interface provides the electrical connection. A 0.5 m PVC cable provides the external cable connection. IP67 protection helps protect the connection against environmental exposure. The design is suitable for industrial automation wiring.
The connector uses nickel-plated die-cast zinc. Its weight is approximately 18 g. The straight design supports direct connection. The cable uses four 0.25 mm² conductors. The PG9 interface provides the mounting arrangement. The product is supplied individually.
E10411 order number
ESTGH040MSS00,5E04
PG9 to M12 adapter
M12 connector
Straight design
4 contacts
250 V AC/DC
4 A current rating
0.5 m PVC cable
4 × 0.25 mm²
Die-cast zinc body
Nickel-plated finish
IP67
-25…85 °C
Approx. 18 g
O-ring sealing
Bulkhead connector
M12 sensor connections
PG9 equipment connections
Industrial automation
Machine wiring
Control equipment
Sensor interfaces
Factory automation
Electrical cabinets
Industrial connection systems
Field devices
The adapter provides a convenient PG9-to-M12 connection. The metal housing provides robust mechanical construction. The 0.5 m cable simplifies installation. IP67 protection supports industrial environments. The bulkhead design allows structured equipment integration.
Install the adapter into a compatible PG9 opening. Ensure the O-ring is correctly positioned. Connect the M12 interface securely. Avoid excessive mechanical stress on the cable. Inspect the sealing arrangement during maintenance.
| Specification | E10411 |
|---|---|
| Product type | Adapter plug |
| Order number | E10411 |
| Model | ESTGH040MSS00,5E04 (PG9) |
| Connector type | M12 |
| Mounting interface | PG9 |
| Connector design | Straight |
| Contacts | 4 |
| Electrical design | AC/DC |
| Operating voltage | 250 V AC/DC |
| Current rating | 4 A |
| Current condition | Up to 40 °C |
| Protection | IP67 |
| Temperature range | -25…85 °C |
| Housing material | Die-cast zinc |
| Housing finish | Nickel-plated |
| Cable material | PVC |
| Cable length | 0.5 m |
| Conductors | 4 |
| Conductor size | 0.25 mm² |
| Sealing | O-ring |
| Connector function | Bulkhead |
| Sensor interface | M12 |
| Mounting interface | PG9 |
| Weight | 18 g |
| Cable connection | Preassembled |
| Application | Industrial automation |
| Pack quantity | 1 |
| Primary function | PG9/M12 connection |
