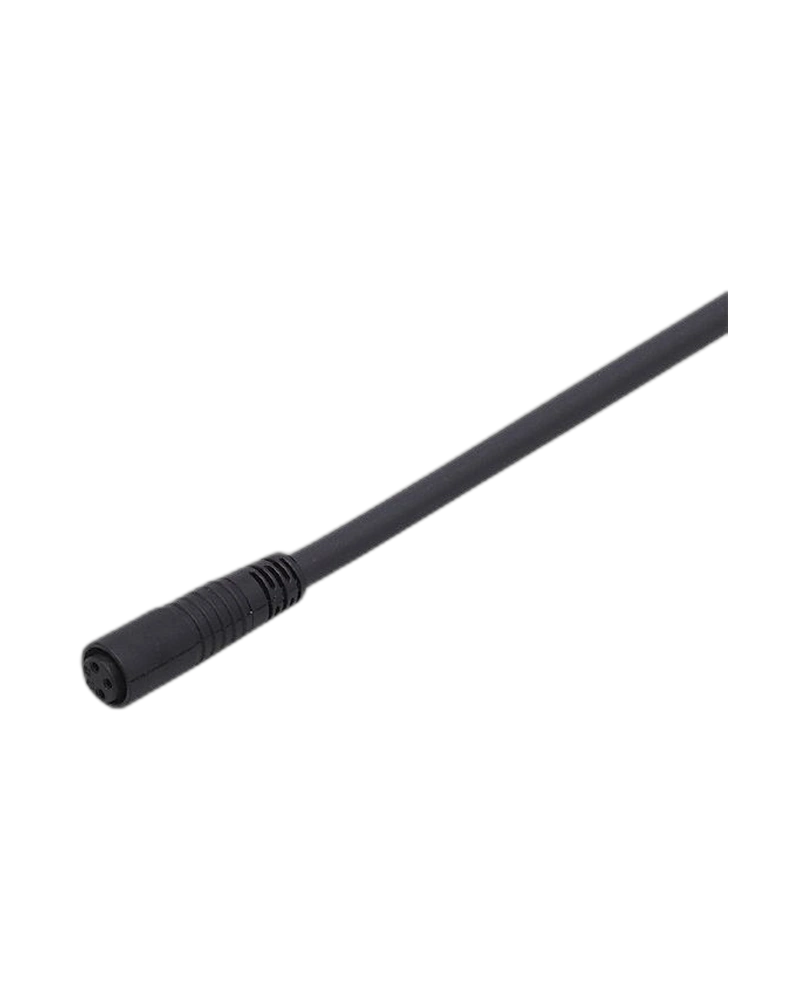

The IFM E10268 is a 5 m connecting cable with a socket for sensors using an M8 connector. It uses a black halogen-free PUR cable with three 0.25 mm² conductors. The cable diameter is approximately 4.5 mm and the cable assembly weighs approximately 146 g. It supports 60 V AC/DC and a current rating of 4 A at up to 40 °C. IP65 protection and a -25…85 °C operating range make it suitable for industrial sensor connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10268 is designed for compatible M8 sensor connections. The straight socket provides a direct interface to the sensor. The preassembled cable eliminates the need for field termination. The connector body uses TPU material for a robust connection structure. The cable is suitable for sensor wiring in industrial automation systems. Its compact M8 interface supports small sensor installations.
The cable is 5 m long and uses black PUR insulation. It contains three 0.25 mm² conductors. The conductor construction is 32 × 0.1 mm. The outside cable diameter is approximately 4.5 mm. The cable is halogen-free, supporting cleaner industrial cable construction. The overall cable assembly weight is approximately 146 g.
The connector supports 60 V AC/DC. The maximum total current is 4 A at up to 40 °C. IP65 protection provides protection against dust and water exposure. The operating temperature range is -25…85 °C. The PUR cable provides flexible industrial cable construction. The assembly is suitable for sensor connections in automation equipment.
E10268 order number
ADOGG030--S0005A03
5 m cable
M8 sensor connector
Straight socket
Black PUR cable
Halogen-free cable
3 × 0.25 mm²
32 × 0.1 mm conductor construction
Approx. Ø4.5 mm cable
TPU housing
60 V AC/DC
4 A current rating
IP65
-25…85 °C
Approx. 146 g
M8 sensor connections
Proximity sensors
Position sensors
Industrial automation
Machine control
Factory equipment
Packaging machinery
Assembly systems
Sensor wiring
Production equipment
The 5 m length provides flexible machine routing. PUR construction provides a robust industrial cable jacket. Halogen-free construction is suitable for modern industrial installations. The M8 connector provides a compact sensor interface. IP65 protection supports industrial environmental conditions.
Use the cable with compatible M8 sensors. Route the cable without excessive bending or tension. Keep the connector clean before mating. Tighten the sensor connection correctly. Inspect the PUR jacket periodically for abrasion or damage.
| Specification | E10268 |
|---|---|
| Product type | Connecting cable with socket |
| Order number | E10268 |
| Model | ADOGG030--S0005A03 |
| Sensor connector | M8 |
| Connector design | Straight |
| Cable length | 5 m |
| Cable material | PUR |
| Cable colour | Black |
| Halogen-free | Yes |
| Conductors | 3 |
| Conductor size | 0.25 mm² |
| Strand construction | 32 × Ø0.1 mm |
| Cable diameter | 4.5 mm |
| Housing material | TPU |
| Electrical design | AC/DC |
| Operating voltage | 60 V AC/DC |
| Current rating | 4 A |
| Current condition | At 40 °C |
| Protection | IP65 |
| Temperature range | -25…85 °C |
| Weight | 146 g |
| Sensor interface | M8 |
| Cable assembly | Preassembled |
| Installation | Sensor connection |
| Application | Industrial automation |
| Field termination | Not required |
| Pack quantity | 1 |
| Primary function | M8 sensor connection |
