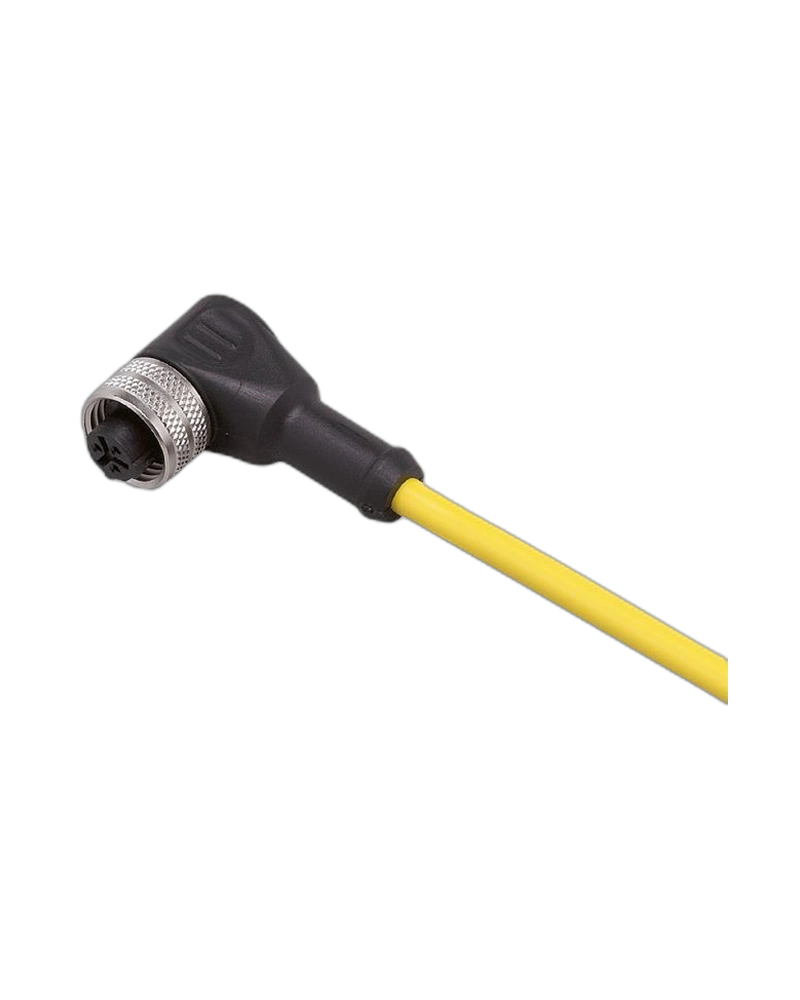

The IFM E10261 is a 10 m connecting cable with a 1/2-inch sensor connector for industrial automation applications. It uses a yellow PVC cable with three AWG22 conductors and approximately 5.2 mm cable diameter. The connector construction combines a TPU body with a brass locking element. It supports 250 V AC and 300 V DC with IP67 protection. The extended 10 m cable length is suitable for distributed sensors and machines requiring longer cable routing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 10 m length provides extended routing capability between the sensor and control equipment. The 1/2-inch connector is designed for compatible industrial sensor interfaces. The straight connection arrangement supports direct cable routing. The yellow PVC jacket provides clear cable identification. The cable can be routed through suitable machine cable-management systems. It provides a practical preassembled connection for longer machine layouts.
The E10261 uses three AWG22 conductors. The cable diameter is approximately 5.2 mm. The cable jacket is yellow PVC. The connector uses a TPU body and brass hardware. The assembly is designed for 250 V AC and 300 V DC operation. The cable is suitable for industrial AC/DC sensor connection systems.
The cable has IP67 protection at the connection assembly. Its operating temperature range is -25…90 °C. The PVC cable construction is suitable for standard industrial installations. The 10 m length provides flexibility for large machine layouts. The preassembled construction reduces field termination work. The cable is suitable for factory automation, machine control and sensor wiring.
E10261 order number
ADOAA030MSS0010E03
10 m cable
1/2-inch sensor connector
Yellow PVC cable
3 × AWG22 conductors
Approx. Ø5.2 mm cable
TPU connector body
Brass locking component
250 V AC
300 V DC
IP67
-25…90 °C
Preassembled connection
Industrial sensor cable
Long-distance routing
Industrial sensors
Machine automation
Factory automation
Long-distance sensor wiring
Production machinery
Packaging equipment
Control systems
Machine tools
Distributed sensors
Industrial field connections
The 10 m cable provides substantial routing flexibility. The yellow jacket makes the cable easy to identify. Preassembled connectors reduce installation time. IP67 protection supports industrial environments. The cable is suitable for distributed machine sensor layouts.
Route the cable away from sharp edges and moving machine parts. Maintain suitable bending conditions during installation. Secure the cable to prevent excessive mechanical tension. Ensure the 1/2-inch connector is properly tightened. Inspect the jacket and connector periodically.
| Specification | E10261 |
|---|---|
| Product type | Connecting cable with socket |
| Order number | E10261 |
| Model | ADOAA030MSS0010E03 |
| Cable length | 10 m |
| Connector type | 1/2 inch |
| Connector arrangement | Straight |
| Cable material | PVC |
| Cable colour | Yellow |
| Conductors | 3 |
| Conductor size | AWG22 |
| Cable diameter | 5.2 mm |
| Connector body | TPU |
| Locking material | Brass |
| AC voltage | 250 V |
| DC voltage | 300 V |
| Protection rating | IP67 |
| Temperature range | -25…90 °C |
| Cable construction | Preassembled |
| Sensor interface | 1/2 inch |
| Electrical system | AC/DC |
| Mounting | Cable connection |
| Application | Sensor wiring |
| Industrial use | Automation |
| Cable routing | Machine installation |
| Installation | Prewired |
| Field termination | Not required |
| Pack quantity | 1 |
| Primary function | Sensor connection |
| Product family | IFM connection cables |
