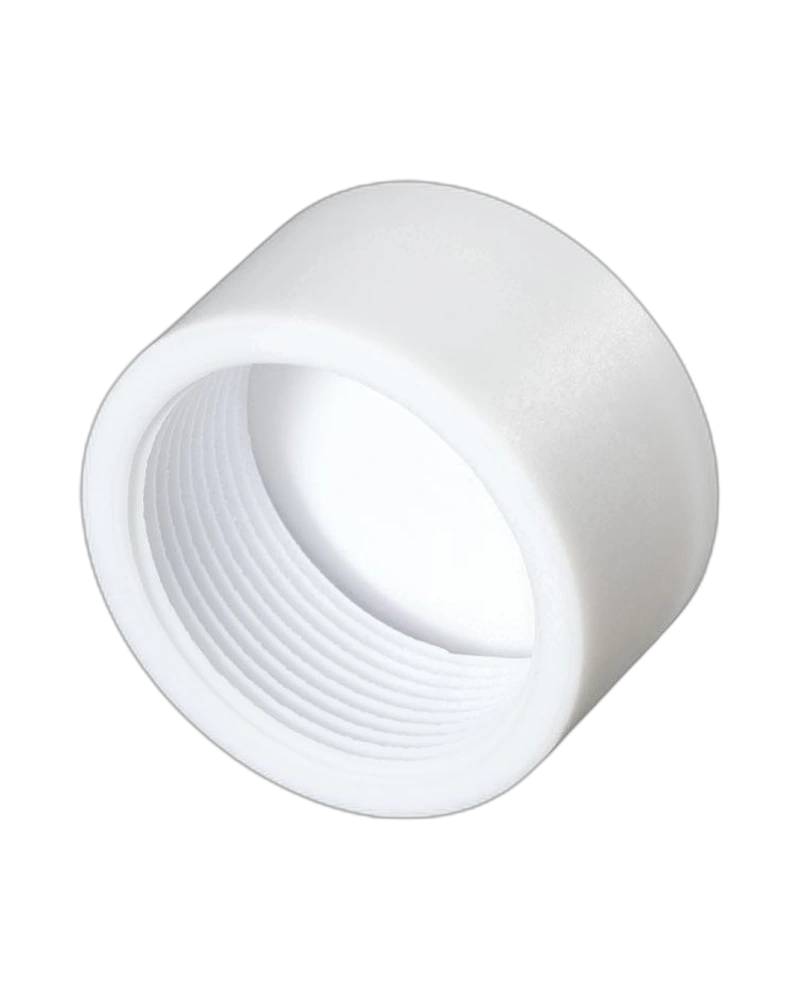

The IFM E10244 is a PTFE protective cover designed for compatible M30 sensor interfaces. It uses an M30 × 1.5 internal thread for secure installation. The PTFE construction provides a lightweight protective component with good chemical resistance. The external diameter is approximately 36 mm and the weight is approximately 18.2 g. The cover is supplied individually for industrial sensor protection applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10244 is designed around the M30 sensor format. Its M30 × 1.5 internal thread provides the mechanical connection to the compatible sensor interface. The threaded arrangement allows straightforward installation and removal. The PTFE material supports applications where chemical resistance is important. Its 36 mm external diameter provides coverage around the M30 interface. The design provides a dedicated protective solution for larger cylindrical sensors.
The cover is manufactured from PTFE. Its external diameter is approximately 36 mm. The internal thread is M30 × 1.5. The weight is approximately 18.2 g. The construction provides a balance between low weight and mechanical protection. One protective cover is supplied per package.
The cover helps shield compatible sensor interfaces from contamination. PTFE provides useful resistance to many industrial chemicals. The threaded connection provides secure positioning during operation. Its compact structure supports machine installations around M30 sensors. The cover can be removed when sensor inspection is required. It is suitable for industrial automation and sensor protection applications.
E10244 order number
PROTECTIVE COVER M30 PTFE
PTFE construction
M30 × 1.5 internal thread
Approx. 36 mm external diameter
Approx. 18.2 g weight
Threaded mounting
Chemical-resistant material
Sensor interface protection
Mechanical protection
Contamination protection
Compact design
Lightweight construction
One-piece pack
Industrial sensor accessory
M30 sensor protection
Proximity sensors
Industrial automation
Chemical-processing equipment
Machine automation
Process machinery
Factory equipment
Sensor interface protection
Contamination control
Industrial installations
PTFE provides useful chemical resistance. The M30 × 1.5 thread provides secure installation. The cover protects the sensor interface from external contamination. The lightweight construction reduces unnecessary mechanical load. The threaded design allows convenient servicing and replacement.
Clean the M30 × 1.5 mating interface before installation. Align the cover carefully with the sensor thread. Tighten only enough to obtain secure mechanical retention. Avoid damaging the PTFE thread with excessive torque. Inspect the cover for cracks or thread wear during service.
| Specification | E10244 |
|---|---|
| Product type | Protective cover |
| Order number | E10244 |
| Model | PROTECTIVE COVER M30 PTFE |
| Material | PTFE |
| Sensor connection | M30 |
| Thread | M30 × 1.5 |
| Thread type | Internal |
| External diameter | 36 mm |
| Weight | 18.2 g |
| Mounting method | Threaded |
| Construction | Protective cover |
| Chemical resistance | PTFE |
| Mechanical protection | Yes |
| Contamination protection | Yes |
| Compatible sensor size | M30 |
| Installation type | Screw-on |
| Component category | Sensor accessory |
| Application | Sensor protection |
| Industrial use | Automation |
| Sensor interface | M30 |
| Mechanical retention | Threaded |
| Housing construction | PTFE |
| Maintenance | Replaceable |
| Pack quantity | 1 piece |
| Primary function | Sensor interface protection |
| Accessory type | Protective cover |
| Product family | IFM accessories |
| Supply format | Individual piece |
