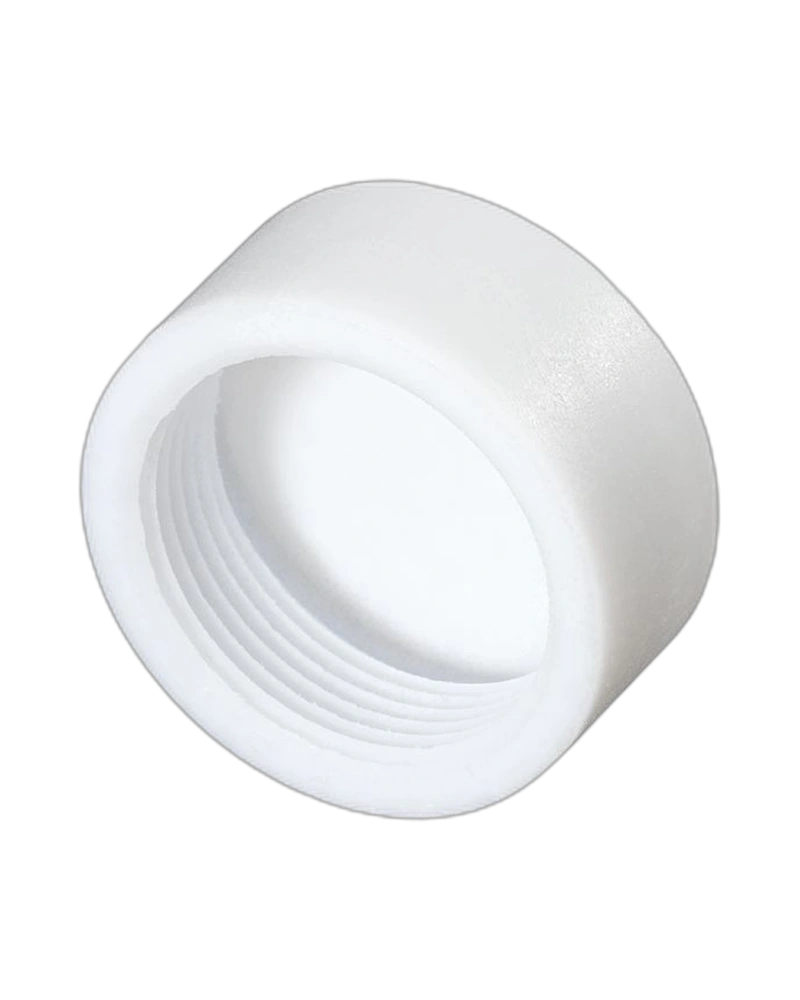

The IFM E10243 is a PTFE protective cover designed for M18 sensor interfaces. It incorporates an M18 × 1 internal thread for secure screw-on installation. The PTFE body provides chemical resistance and a lightweight protective structure. Its external diameter is approximately 22 mm and the product weighs approximately 5.15 g. The compact cover provides practical protection for compatible M18 sensor connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10243 is intended for cylindrical M18 sensor connections. Its internal M18 × 1 thread allows the cover to be mounted directly on the compatible interface. The threaded construction provides positive mechanical retention. PTFE offers useful chemical resistance in demanding industrial environments. The compact external diameter minimizes additional installation space. The cover provides an additional protective barrier around the sensor interface.
The cover is manufactured from PTFE. Its external diameter is approximately 22 mm. The internal thread is M18 × 1. The product weighs approximately 5.15 g. The lightweight design makes it suitable for sensor assemblies where component mass should be minimized. The cover is supplied individually.
The cover can help protect the sensor interface from contamination and mechanical contact. PTFE is suitable for applications requiring resistance to many chemicals. The screw-on design enables quick installation. It can also be removed when sensor servicing is required. Its compact construction supports machine installations with limited clearance. The accessory is intended for compatible M18 sensor systems.
E10243 order number
PROTECTIVE COVER M18 PTFE
PTFE material
M18 × 1 internal thread
22 mm external diameter
5.15 g weight
Threaded connection
Chemical resistance
Sensor interface protection
Compact construction
Mechanical protection
Contamination protection
Lightweight design
One-piece pack
Industrial accessory
M18 sensor protection
Proximity sensor assemblies
Factory automation
Process equipment
Chemical environments
Machine automation
Sensor interfaces
Industrial machinery
Contamination protection
Automation systems
PTFE provides useful resistance to industrial chemicals. The M18 × 1 thread enables direct installation. The lightweight construction minimizes additional sensor load. The compact diameter helps conserve installation space. The cover can be easily replaced during sensor servicing.
Clean the M18 × 1 interface before fitting the cover. Align the internal thread carefully before tightening. Avoid cross-threading the PTFE component. Do not apply excessive torque. Inspect the cover during scheduled sensor maintenance.
| Specification | E10243 |
|---|---|
| Product type | Protective cover |
| Order number | E10243 |
| Model | PROTECTIVE COVER M18 PTFE |
| Material | PTFE |
| Sensor connection | M18 |
| Thread | M18 × 1 |
| Thread type | Internal |
| External diameter | 22 mm |
| Weight | 5.15 g |
| Mounting method | Threaded |
| Construction | Protective cover |
| Material characteristic | Chemical resistance |
| Protection function | Sensor interface |
| Mechanical protection | Yes |
| Contamination protection | Yes |
| Compatible sensor size | M18 |
| Installation type | Screw-on |
| Component category | Sensor accessory |
| Application | Sensor protection |
| Industrial use | Automation |
| Sensor interface | M18 |
| Mechanical retention | Threaded |
| Housing construction | PTFE |
| Maintenance | Replaceable |
| Pack quantity | 1 piece |
| Primary function | Sensor protection |
| Accessory type | Protective cover |
| Product family | IFM accessories |
| Supply format | Individual piece |
