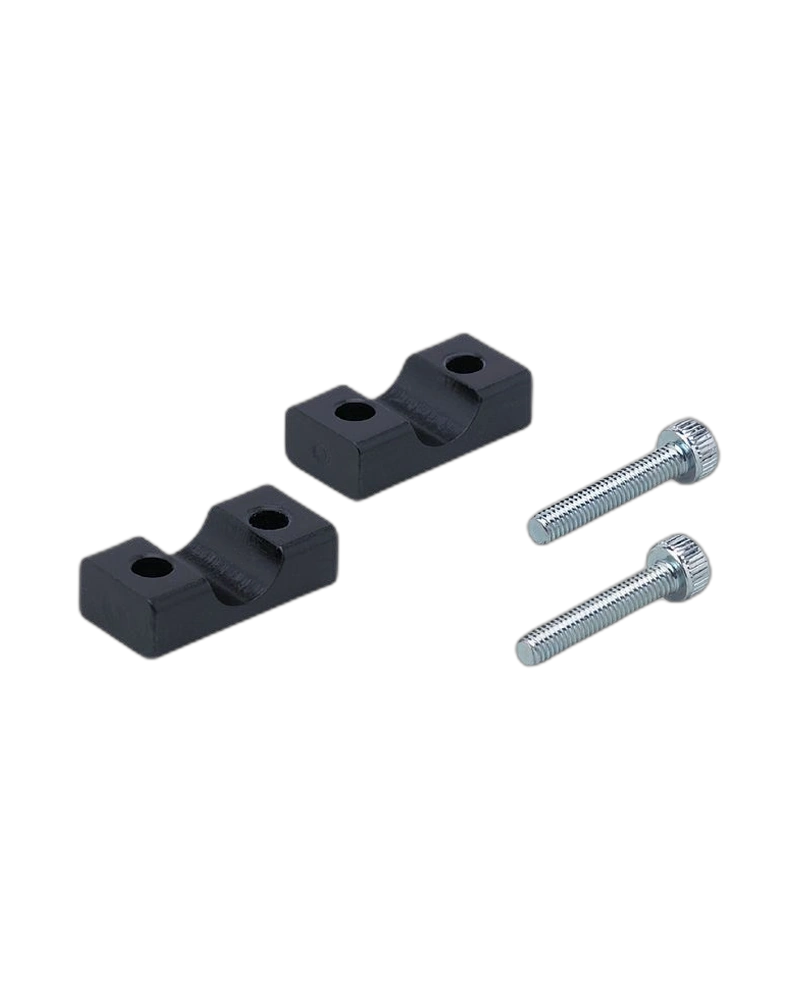

The IFM E10221 is a compact mounting clamp designed for cylindrical sensors with an 8 mm diameter. It provides a simple, fast and economical method of mechanically fixing compatible sensors. The clamp is manufactured from black anodized aluminium for a strong and durable construction. Two M3 × 16 mm socket-head screws are supplied for secure installation. Its compact 13 × 20 × 10 mm format makes it suitable for space-restricted industrial automation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10221 is designed specifically for sensors with an 8 mm cylindrical body. Its internal diameter of 8 mm provides a defined mechanical interface around the sensor. The compact clamp geometry allows the sensor to be positioned close to machine structures. The aluminium construction provides useful mechanical rigidity without excessive component weight. Black anodizing improves the surface finish and durability of the clamp. The supplied screws simplify installation without requiring separate fastening hardware.
The mounting clamp measures approximately 13 × 20 × 10 mm. Its weight is approximately 7.8 g, making it suitable for lightweight sensor assemblies. The body is manufactured from black anodized aluminium. Two M3 × 16 mm socket-head screws are included. The two fixing points provide secure mechanical retention of the sensor. The clamp is supplied as one complete piece for installation.
The clamp provides quick mechanical installation compared with more complex mounting arrangements. It allows compatible sensors to be installed and removed without modifying the sensor body. The compact dimensions help conserve valuable machine space. The two-screw arrangement provides stable fixation during machine operation. Aluminium construction provides a durable mounting interface for industrial equipment. It is suitable for repeatable sensor positioning in automation systems.
E10221 order number
MOUNTING CLAMP D8 MM
For cylindrical sensors
8 mm inside diameter
Black anodized aluminium
13 × 20 × 10 mm dimensions
Approx. 7.8 g weight
2 × M3 × 16 mm socket-head screws
Two-point fixing
Compact construction
Mechanical sensor retention
Quick installation
Industrial mounting accessory
Fixed sensor positioning
One-piece pack
8 mm cylindrical sensors
Proximity sensor mounting
Position sensor mounting
Factory automation
Machine building
Assembly equipment
Packaging machinery
Conveyor systems
Production equipment
Industrial sensor assemblies
The compact design is suitable for restricted installation spaces. Aluminium construction provides good mechanical strength. Black anodizing improves surface durability. The supplied screws simplify installation. The clamp allows easy sensor replacement and repositioning.
Position the clamp on a rigid machine surface before inserting the sensor. Insert the compatible 8 mm sensor through the clamp opening. Align the sensing face in the required direction. Tighten both M3 screws evenly to secure the sensor. Inspect the screws and aluminium body periodically for looseness or mechanical damage.
| Specification | E10221 |
|---|---|
| Product type | Mounting clamp |
| Order number | E10221 |
| Model | MOUNTING CLAMP D8 MM |
| Sensor type | Cylindrical |
| Compatible sensor diameter | 8 mm |
| Inside diameter | 8 mm |
| Material | Aluminium |
| Surface finish | Black anodized |
| Length | 13 mm |
| Width | 20 mm |
| Height | 10 mm |
| Weight | 7.8 g |
| Fixing screws | 2 |
| Screw size | M3 × 16 mm |
| Screw type | Socket-head |
| Fixing method | Clamp |
| Fixing points | 2 |
| Sensor retention | Mechanical |
| Sensor positioning | Fixed |
| Mounting type | Mechanical |
| Installation | Surface mounting |
| Construction | Compact clamp |
| Application | Cylindrical sensor mounting |
| Industrial use | Automation |
| Accessory category | Mounting accessory |
| Hardware included | Yes |
| Pack quantity | 1 piece |
| Primary function | Sensor fixation |
| Product family | IFM mounting accessories |
