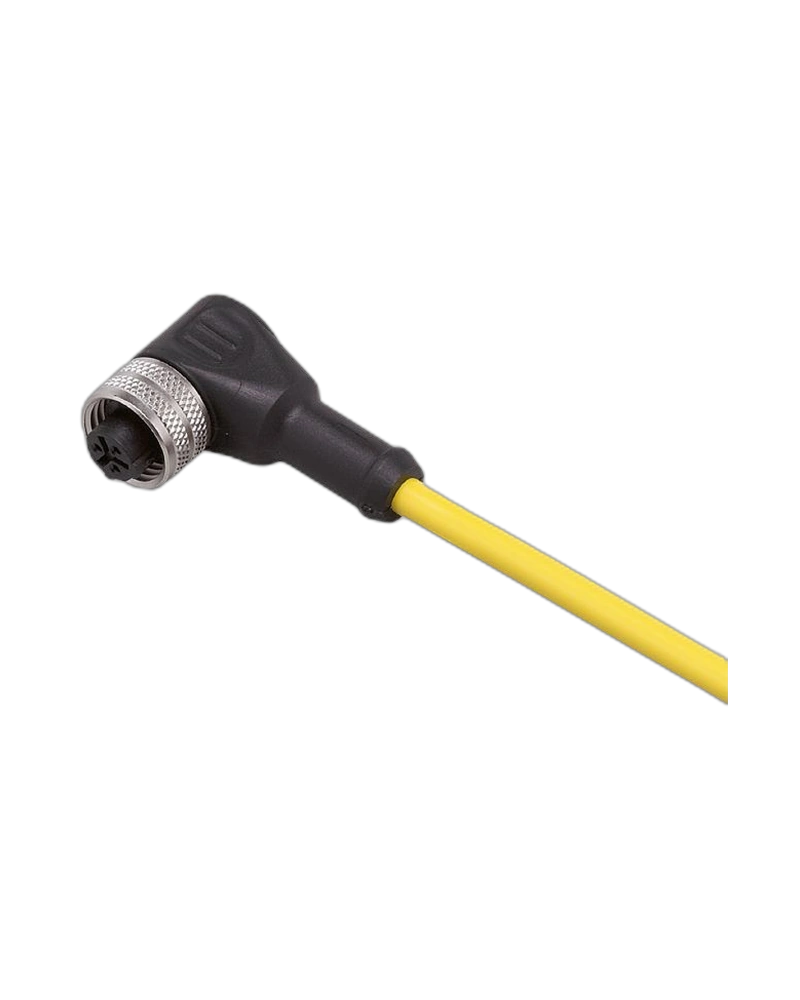

The IFM E10200 is a 5 m connecting cable with an angled socket for sensors using a 1/2-inch connector. It uses a yellow PVC cable containing three AWG22 conductors. The cable has an approximately 5.2 mm diameter and is designed for industrial drag-chain applications. It supports 250 V AC and 300 V DC with IP67 protection. The longer 5 m length provides extended routing capability for industrial machines.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The angled socket helps route the cable away from restricted sensor mounting areas. The connector uses a 1/2-inch interface. The cable contains three AWG22 conductors with approximately 42 × 0.1 mm strand construction. The yellow PVC jacket provides conventional industrial cable insulation. A nickel-plated brass nut provides secure mechanical connection.
The cable supports 250 V AC and 300 V DC. IP67 protection supports industrial environmental exposure. The cable operates from -25 to 90 °C. The three-wire construction provides the specified electrical interface. The 5 m length supports distributed sensor installations.
The cable is suitable for drag-chain applications. The minimum bending radius is 10 times cable diameter. Maximum travel speed is approximately 3.3 m/s under the specified conditions. The construction supports more than two million bending cycles. Torsional strain is specified at ±180°/m.
E10200
ADOAA030MSS0005E03
5 m cable
1/2-inch connector
Angled socket
Yellow PVC cable
3 × AWG22
42 × Ø0.1 mm
Ø5.2 mm cable
TPU body
Brass nickel-plated nut
250 V AC
300 V DC
IP67
-25…90 °C
Drag-chain suitable
2 million bending cycles
3.3 m/s travel speed
Industrial sensor wiring
Drag-chain applications
Factory automation
Machine control
Production machinery
Packaging equipment
Diagnostic systems
Control equipment
Distributed sensors
Industrial automation
The 5 m length provides extended routing. The angled connector improves cable management. Drag-chain suitability supports repeated movement. IP67 protection provides environmental protection. The cable is suitable for demanding machine wiring.
Maintain the minimum bending radius. Use proper cable-chain routing for moving applications. Avoid sharp bends and excessive torsion. Inspect the cable after repeated movement. Tighten the socket connection correctly.
| Specification | E10200 |
|---|---|
| Product type | Connecting cable with socket |
| Order number | E10200 |
| Model | ADOAA030MSS0005E03 |
| Cable length | 5 m |
| Sensor connector | 1/2 inch |
| Socket design | Angled |
| Cable material | PVC |
| Cable colour | Yellow |
| Conductors | 3 |
| Conductor size | AWG22 |
| Strand construction | 42 × Ø0.1 mm |
| Cable diameter | 5.2 mm |
| Body material | TPU |
| Nut material | Brass |
| Nut finish | Nickel-plated |
| AC voltage | 250 V |
| DC voltage | 300 V |
| Protection | IP67 |
| Temperature | -25…90 °C |
| Bending radius | ≥10 × cable diameter |
| Travel speed | ≤3.3 m/s |
| Horizontal travel | 5 m |
| Acceleration | ≤5 m/s² |
| Bending cycles | >2 million |
| Torsional strain | ±180°/m |
| Drag-chain use | Yes |
| Pack quantity | 1 |
| Primary application | Industrial automation |
| Connector interface | 1/2 inch |
