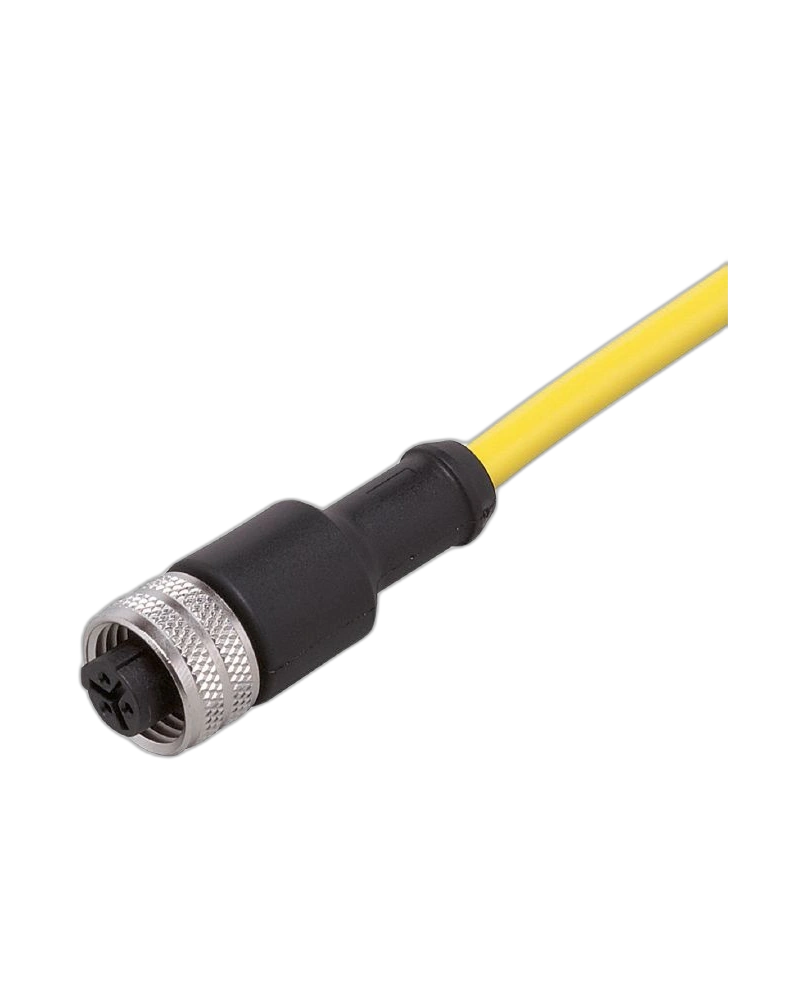

The IFM E10191 is a 5 m connecting cable with a straight socket for sensors using a 1/2-inch connector. It uses a yellow PVC cable with three AWG22 conductors. The cable has an approximately 5.2 mm diameter and is designed for drag-chain applications. It supports 250 V AC and 300 V DC with IP67 protection. The 5 m length provides extended routing distance for distributed machine installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10191 uses a 5 m yellow PVC cable. Three AWG22 conductors provide the electrical connection. The cable uses approximately 42 × 0.1 mm strand construction. The straight socket uses a 1/2-inch connector. The TPU body and nickel-plated brass nut provide mechanical connection stability.
The cable supports 250 V AC and 300 V DC. IP67 protection supports industrial environmental conditions. The cable is designed for AC/DC sensor connection systems. The three-wire arrangement provides the specified interface. The 5 m length is useful for equipment with distributed sensor positions.
The cable supports drag-chain applications. A minimum bending radius of 10 times cable diameter is specified. Maximum travel speed is 3.3 m/s under the stated conditions. More than two million bending cycles are supported. Torsional strain is specified at ±180°/m.
E10191
ADOGA030MSS0005E03
5 m cable
1/2-inch connector
Straight socket
Yellow PVC cable
3 × AWG22
Ø5.2 mm
TPU body
Brass nickel-plated nut
250 V AC
300 V DC
IP67
-25…90 °C
Drag-chain suitable
2 million bending cycles
3.3 m/s travel speed
10 × diameter bending radius
±180°/m torsional strain
Long-distance sensor wiring
Industrial automation
Diagnostic systems
Factory automation
Machine control
Drag-chain systems
Production machinery
Packaging machines
Control equipment
Field sensors
The 5 m length supports extended machine routing. Drag-chain capability allows repeated cable movement. The straight connector provides direct connection. IP67 protection improves environmental reliability. The yellow cable provides easy visual identification.
Maintain the specified bending radius. Install the cable correctly inside moving cable carriers. Avoid excessive torsion. Inspect the cable after repeated movement. Tighten the connector during servicing.
| Specification | E10191 |
|---|---|
| Product type | Connecting cable with socket |
| Order number | E10191 |
| Model | ADOGA030MSS0005E03 |
| Cable length | 5 m |
| Sensor connection | 1/2 inch |
| Socket design | Straight |
| Cable material | PVC |
| Cable colour | Yellow |
| Conductors | 3 |
| Conductor size | AWG22 |
| Strand construction | 42 × Ø0.1 mm |
| Cable diameter | 5.2 mm |
| Body material | TPU |
| Nut material | Brass |
| Nut finish | Nickel-plated |
| AC voltage | 250 V |
| DC voltage | 300 V |
| Protection | IP67 |
| Temperature | -25…90 °C |
| Bending radius | ≥10 × diameter |
| Travel speed | ≤3.3 m/s |
| Horizontal travel | 5 m |
| Acceleration | ≤5 m/s² |
| Bending cycles | >2 million |
| Torsional strain | ±180°/m |
| Drag-chain use | Yes |
| Pack quantity | 1 |
| Primary application | Industrial automation |
| Connector interface | 1/2 inch |
