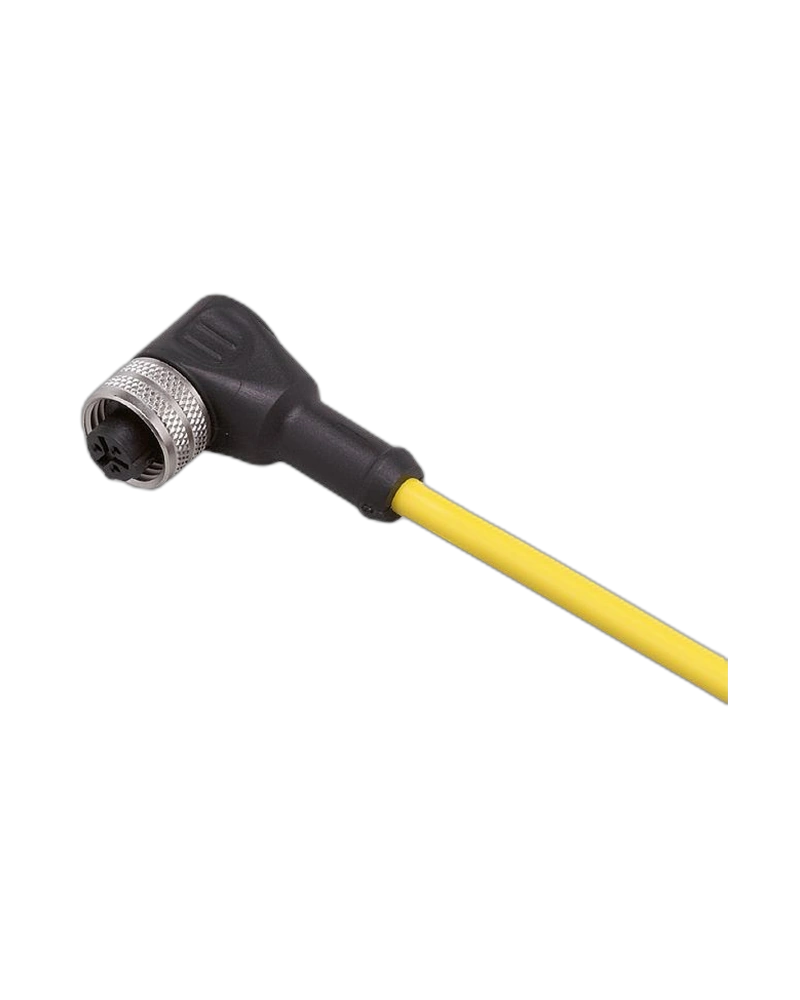

The IFM E10190 is a 2 m connecting cable with an angled socket for sensors using a 1/2-inch connector. It uses a yellow PVC cable with three AWG22 conductors and approximately 5.2 mm outside diameter. The connector body is black TPU with a nickel-plated brass locking nut. It supports 250 V AC and 300 V DC with IP67 protection. Its angled construction provides improved cable routing where installation space is restricted.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The angled socket reduces the amount of space required directly behind the sensor. The 1/2-inch connector provides the specified sensor interface. The black TPU body provides a flexible connection structure. A nickel-plated brass nut secures the connection. The arrangement is suitable for machine installations with restricted clearance.
The cable length is 2 m. It uses three AWG22 conductors with approximately 42 × 0.1 mm strand construction. The cable diameter is approximately 5.2 mm. The yellow PVC jacket provides conventional industrial cable insulation. The cable is suitable for drag-chain applications.
The cable supports 250 V AC and 300 V DC. IP67 protection provides protection against dust and water ingress. It operates from -25 to 90 °C. The cable supports more than two million bending cycles under specified drag-chain conditions. The design is suitable for industrial automation applications.
E10190
ADOAA030MSS0002E03
2 m cable
1/2-inch connector
Angled socket
Yellow PVC cable
3 × AWG22
Ø5.2 mm cable
TPU black body
Nickel-plated brass nut
250 V AC
300 V DC
IP67
-25…90 °C
Drag-chain suitable
2 million bending cycles
10 × cable diameter bending radius
3.3 m/s travel speed
±180°/m torsional strain
Industrial sensors
Machine automation
Drag-chain wiring
Factory automation
Diagnostic systems
Control equipment
Production machinery
Packaging equipment
Mobile machine wiring
Sensor interfaces
The angled body simplifies routing in restricted spaces. The 2 m length supports standard machine connections. Drag-chain capability supports repeated movement. IP67 protection improves environmental reliability. The robust TPU/brass construction supports repeated industrial connection.
Maintain the minimum bending radius. Route the cable through a suitable drag chain when required. Avoid twisting the cable excessively. Tighten the locking nut correctly. Inspect the cable for wear after repeated movement.
| Specification | E10190 |
|---|---|
| Product type | Connecting cable with socket |
| Order number | E10190 |
| Model | ADOAA030MSS0002E03 |
| Cable length | 2 m |
| Sensor connection | 1/2 inch |
| Socket design | Angled |
| Cable material | PVC |
| Cable colour | Yellow |
| Conductors | 3 |
| Conductor size | AWG22 |
| Strand construction | 42 × Ø0.1 mm |
| Cable diameter | 5.2 mm |
| Body material | TPU |
| Body colour | Black |
| Nut material | Brass |
| Nut finish | Nickel-plated |
| AC voltage | 250 V |
| DC voltage | 300 V |
| Protection | IP67 |
| Temperature | -25…90 °C |
| Bending radius | ≥10 × diameter |
| Travel speed | ≤3.3 m/s |
| Horizontal travel | 5 m |
| Maximum acceleration | 5 m/s² |
| Bending cycles | >2 million |
| Torsional strain | ±180°/m |
| Pack quantity | 1 |
| Primary application | Industrial automation |
