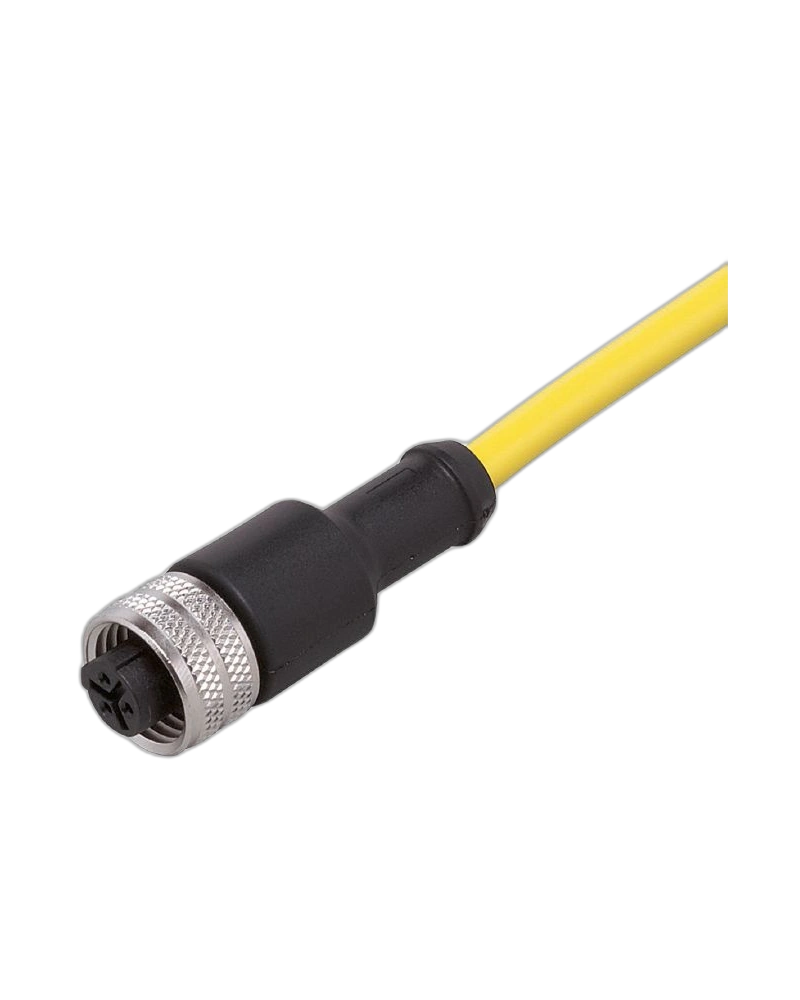

The IFM E10189 is a 2 m connecting cable with a socket designed for sensors using a 1/2-inch connector. It uses a straight socket configuration with a yellow PVC cable. The cable contains three AWG22 conductors and has an approximately 5.2 mm diameter. It supports 250 V AC and 300 V DC with IP67 protection. Its flexible construction is suitable for industrial automation and diagnostic equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10189 uses a 2 m yellow PVC cable. The cable contains three AWG22 conductors with approximately 42 × 0.1 mm strand construction. The outside diameter is approximately 5.2 mm. The straight socket uses a 1/2-inch connection. The TPU body and nickel-plated brass nut provide durable connection hardware.
The cable supports 250 V AC and 300 V DC. IP67 protection helps protect the connection from environmental exposure. The cable is designed for industrial AC/DC sensor connections. The three-wire arrangement provides the specified electrical interface. The connector is suitable for compatible 1/2-inch sensor systems.
The cable is designed for drag-chain applications. The minimum bending radius is 10 times the cable diameter. Maximum travel speed is approximately 3.3 m/s under the specified conditions. The cable supports more than 2 million bending cycles. Torsional strain capability is specified at ±180°/m.
E10189
ADOGA030MSS0002E03
2 m cable
1/2-inch sensor connector
Straight socket
Yellow PVC cable
3 × AWG22
42 × Ø0.1 mm strands
Approx. Ø5.2 mm cable
TPU body
Brass nickel-plated nut
250 V AC
300 V DC
IP67
Drag-chain suitable
2 million bending cycles
3.3 m/s travel speed
10 × cable diameter bending radius
±180°/m torsional strain
1/2-inch sensor connection
Diagnostic systems
Industrial automation
Factory automation
Machine control
Drag-chain wiring
Production machinery
Control cabinets
Sensor interfaces
Mobile machine wiring
The 2 m length provides practical machine routing. Drag-chain capability supports repeated movement. PVC insulation provides a conventional industrial cable construction. The straight connector simplifies direct routing. IP67 protection supports factory environments.
Maintain at least the specified bending radius. Avoid sharp cable routing. Use suitable cable-chain support for moving installations. Tighten the connector correctly. Inspect the cable after repeated movement cycles.
| Specification | E10189 |
|---|---|
| Product type | Connecting cable with socket |
| Order number | E10189 |
| Model | ADOGA030MSS0002E03 |
| Cable length | 2 m |
| Sensor connection | 1/2 inch |
| Socket design | Straight |
| Cable material | PVC |
| Cable colour | Yellow |
| Conductors | 3 |
| Conductor size | AWG22 |
| Strand construction | 42 × Ø0.1 mm |
| Cable diameter | 5.2 mm |
| Housing material | TPU |
| Nut material | Brass |
| Nut finish | Nickel-plated |
| AC voltage | 250 V |
| DC voltage | 300 V |
| Protection | IP67 |
| Bending radius | ≥10 × cable diameter |
| Travel speed | ≤3.3 m/s |
| Horizontal travel length | 5 m |
| Maximum acceleration | 5 m/s² |
| Bending cycles | >2 million |
| Torsional strain | ±180°/m |
| Cable application | Drag chain |
| Connector interface | 1/2 inch |
| Pack quantity | 1 |
| Application | Industrial automation |
| Primary function | Sensor connection |
