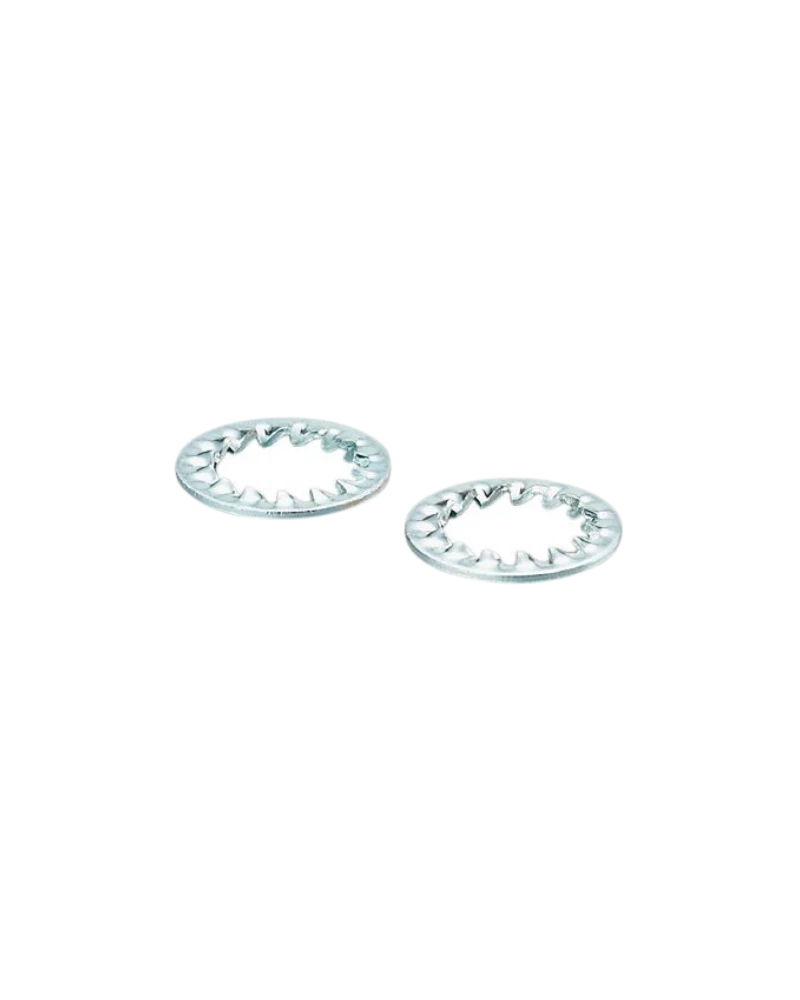

The IFM E10183 is a serrated lock washer designed for M18 sensor mounting applications. It uses a toothed washer construction to improve mechanical locking between mating surfaces. The washer has approximately 20 mm internal and 30 mm external diameter. It is manufactured from galvanized steel for mechanical strength and surface protection. The product is supplied as a two-piece pack.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The serrated design creates additional mechanical grip between the mating surfaces. This helps reduce unwanted movement of compatible M18 mounting components. The washer is designed for use with M18 sensor assemblies. Its toothed structure supports secure mechanical fixation. It is particularly useful where vibration may affect conventional flat washers.
The E10183 uses galvanized steel. Its internal diameter is approximately 20 mm. Its external diameter is approximately 30 mm. The total package contains two washers. The component weight is approximately 10 g per product listing.
The serrated washer provides additional resistance to loosening. Its simple construction makes installation straightforward. It can be used with compatible M18 mounting arrangements. The galvanized surface improves resistance to environmental exposure. It is a practical accessory for industrial sensor mounting.
E10183
LOCK WASHER M18
DIN 6798 style serrated washer
For M18 sensor types
20 mm internal diameter
30 mm external diameter
Galvanized steel
Serrated teeth
Mechanical locking
Vibration-resistant mounting support
2-piece pack
Compact construction
Industrial accessory
Sensor mounting component
M18 sensor mounting
Proximity sensors
Position sensors
Industrial automation
Machine tools
Factory machinery
Vibration-prone equipment
Conveyor systems
Assembly machines
Sensor brackets
The serrated teeth improve mechanical locking. Galvanized steel provides durable construction. The washer is simple to install. The two-piece package supports multiple mounting operations. It can improve mounting stability in vibrating equipment.
Place the washer correctly between the mating surfaces. Ensure the teeth engage the mounting surfaces. Tighten the associated mounting hardware correctly. Do not reuse damaged washers. Inspect the washer during sensor replacement.
| Specification | E10183 |
|---|---|
| Product type | Serrated lock washer |
| Order number | E10183 |
| Model | LOCK WASHER M18 |
| Standard style | DIN 6798 |
| Compatible sensor | M18 |
| Inner diameter | 20 mm |
| Outer diameter | 30 mm |
| Material | Steel |
| Surface finish | Galvanized |
| Washer type | Serrated |
| Locking mechanism | Teeth |
| Mechanical function | Anti-loosening |
| Vibration resistance | Mechanical locking |
| Pack quantity | 2 pieces |
| Installation | Between mating surfaces |
| Application | Sensor mounting |
| Industrial use | Automation |
| Accessory type | Lock washer |
| Mounting function | Mechanical retention |
| Construction | Toothed washer |
| Corrosion treatment | Galvanized |
| Compatible mounting | M18 |
| Sensor accessory | Yes |
| Installation purpose | Prevent loosening |
| Mechanical interface | Washer |
| Serviceability | Replaceable |
| Primary function | Locking |
| Product family | IFM mounting accessories |
| Supply format | 2 pieces |
| Application environment | Industrial |
