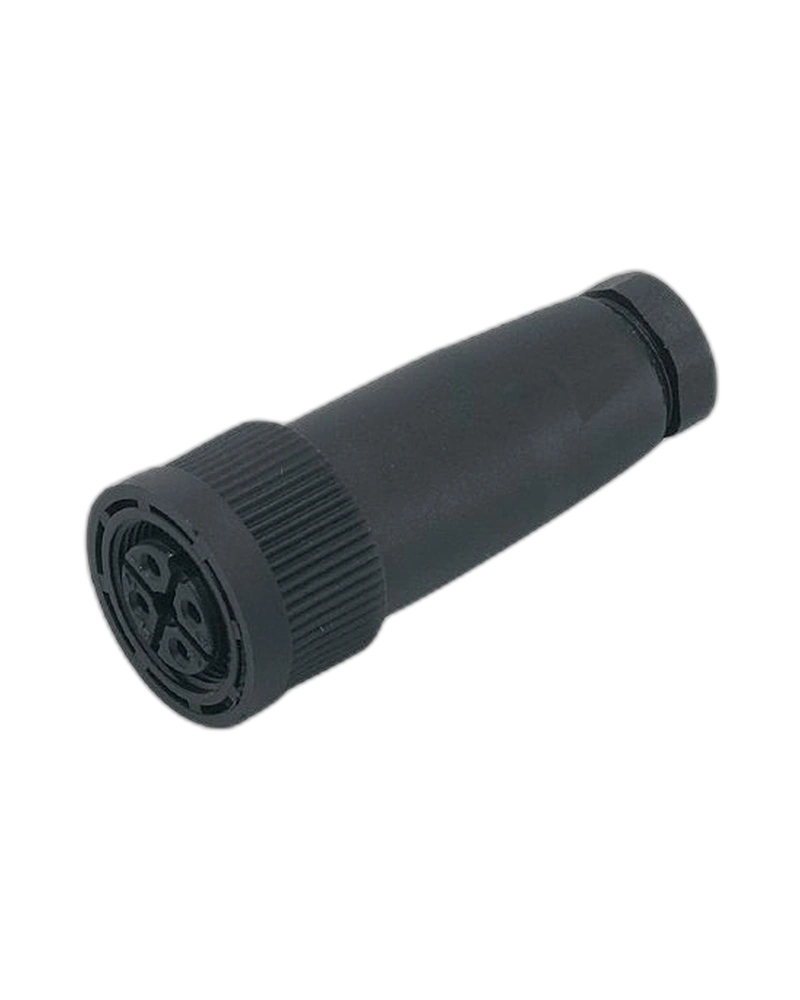

The IFM E10137 is a straight four-contact M18 wireable socket designed for industrial sensor connections. It supports up to 250 V AC/DC and a 4 A current rating. The connector uses an A-coded M18 interface and screw terminals for field wiring. It accepts conductors up to 0.75 mm² and cable diameters from 6 to 8 mm. Its IP65 construction is suitable for industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10137 uses a straight M18 female connector. The A-coded connection provides the specified mating orientation. Four contacts support compatible sensor circuits. The threaded connection provides secure mechanical retention. The screw-terminal arrangement allows field cable termination.
The connector supports up to 250 V AC/DC. Maximum current rating is 4 A. The terminal system accepts up to 0.75 mm² conductors. IP65 protection supports industrial field installations. The connector is designed for reliable sensor connection.
The connector weighs approximately 27.4 g. It supports 6–8 mm cable diameter. The straight configuration simplifies direct cable routing. The M18 threaded interface provides secure mechanical installation. The connector is suitable for industrial sensor assemblies.
E10137
SDOGJ040PLSFKPG
M18 female connector
Straight design
4 contacts
A coding
250 V AC/DC
4 A
IP65
Screw terminals
≤0.75 mm²
6–8 mm cable diameter
Threaded connection
Approx. 27.4 g
Industrial construction
M18 sensor wiring
Proximity sensors
Position sensors
Industrial automation
Machine control
Factory equipment
Production machinery
Control panels
Packaging systems
Field devices
The M18 interface supports larger sensor installations. The straight body simplifies cable routing. Screw terminals provide field-wiring flexibility. The 4 A rating supports compatible industrial circuits. IP65 protection helps protect the connection from dust and water exposure.
Use the specified M18 mating interface. Select cable within the 6–8 mm diameter range. Terminate conductors correctly. Tighten the threaded connection securely. Inspect the connector and cable entry during service.
| Specification | E10137 |
|---|---|
| Product type | Wirable socket |
| Order number | E10137 |
| Model | SDOGJ040PLSFKPG |
| Connector | M18 |
| Gender | Female |
| Contacts | 4 |
| Design | Straight |
| Coding | A |
| Operating voltage | 250 V AC/DC |
| Current rating | 4 A |
| Protection | IP65 |
| Terminal type | Screw terminals |
| Conductor size | ≤0.75 mm² |
| Cable diameter | 6–8 mm |
| Weight | Approx. 27.4 g |
| Locking system | Threaded |
| Mounting | Cable |
| Sensor interface | M18 |
| Field wiring | Yes |
| Contact arrangement | 4-pin |
| Connector orientation | Straight |
| Application | Industrial sensors |
| Housing construction | Wireable |
| Mechanical retention | Threaded |
| Cable entry | 6–8 mm |
| Industrial use | Automation |
| Pack quantity | 1 |
| Primary function | M18 sensor connection |
| Product family | IFM wireable sockets |
