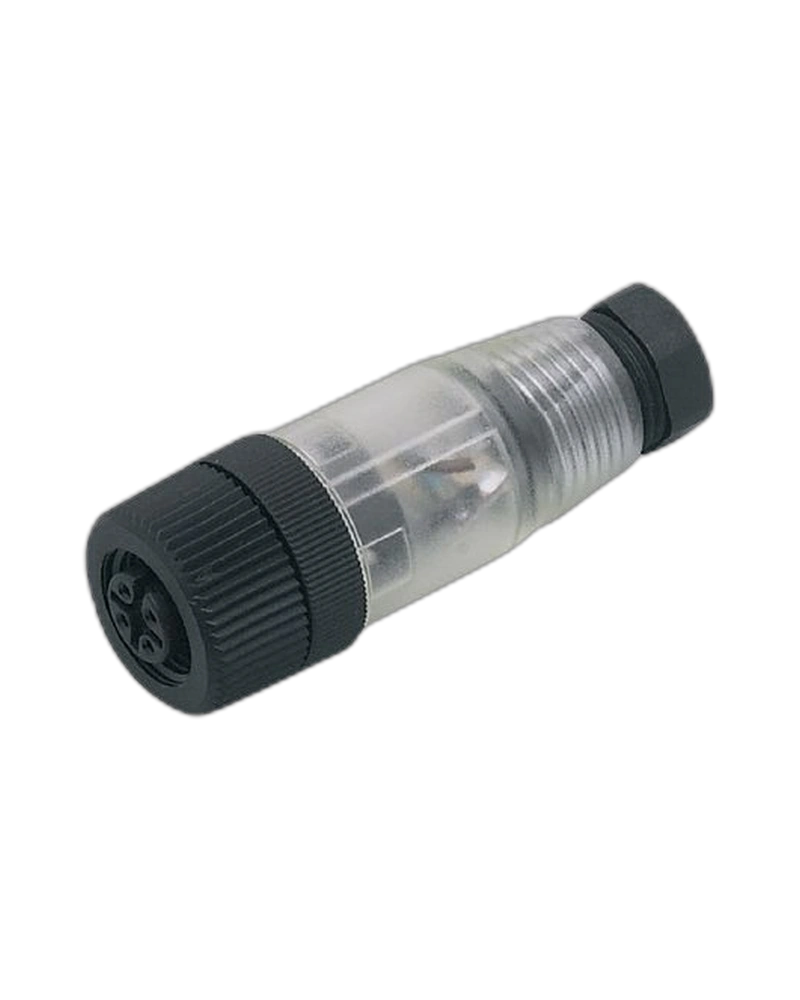

The IFM E10136 is a four-contact M12 wireable socket designed for DC PNP sensor connections. It operates from 10 to 30 V DC and provides green power and yellow output-status LEDs. The straight PA connector body is designed for practical industrial cable termination. Screw terminals accept conductors up to 0.75 mm² and cable diameters from 4 to 6 mm. IP67 protection and a -40 to 85 °C temperature range support industrial automation use.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10136 uses a DC PNP electrical configuration. It operates from 10 to 30 V DC. Green and yellow LEDs provide power and output-status indication. The four-contact interface supports compatible M12 sensors. The connector is designed for reliable sensor signal wiring.
The connector uses a straight M12 body with four contacts. Its PA body and PA nut provide lightweight mechanical construction. Screw terminals simplify field termination. The connector accepts 4–6 mm cable diameter. Its IP67 rating supports industrial installation.
The green LED indicates power status. The yellow LED indicates output status. These visual indicators can simplify commissioning and troubleshooting. The connector provides direct visibility of the sensor connection state. This makes it useful for machine-service applications.
E10136
SDOGH042PLSFKPG
M12 female socket
4 contacts
Straight design
DC PNP
10–30 V DC
Green power LED
Yellow output LED
IP67
-40…85 °C
PA body
PA nut
Screw terminals
≤0.75 mm²
4–6 mm cable diameter
Approx. 15 g
PNP sensor wiring
Proximity sensors
Position sensors
Machine automation
Factory automation
Control panels
Packaging machinery
Assembly equipment
Industrial sensor systems
Production machinery
Dual LED indication simplifies diagnostics. The PNP design is suitable for compatible DC sensor circuits. Straight construction provides direct cable routing. Field-wirable terminals offer cable flexibility. IP67 protection supports industrial use.
Connect the sensor according to the correct pin configuration. Use 10–30 V DC supply within the specified range. Check both LED indicators during commissioning. Secure screw terminals correctly. Inspect the cable sheath during maintenance.
| Specification | E10136 |
|---|---|
| Product type | Wirable socket |
| Order number | E10136 |
| Model | SDOGH042PLSFKPG |
| Connector | M12 |
| Gender | Female |
| Contacts | 4 |
| Design | Straight |
| Electrical design | DC PNP |
| Supply voltage | 10–30 V DC |
| Protection | IP67 |
| Temperature | -40…85 °C |
| Body material | PA |
| Nut material | PA |
| Weight | 15 g |
| Terminal connection | Screw terminals |
| Conductor size | ≤0.75 mm² |
| Cable diameter | 4–6 mm |
| Power indication | Green LED |
| Output indication | Yellow LED |
| Locking | Threaded |
| Sensor interface | M12 |
| Mounting | Cable |
| Field termination | Yes |
| Application | PNP sensor connection |
| Industrial use | Automation |
| Connector orientation | Straight |
| Contact arrangement | 4-pin |
| Pack quantity | 1 |
| Primary function | Sensor connection |
