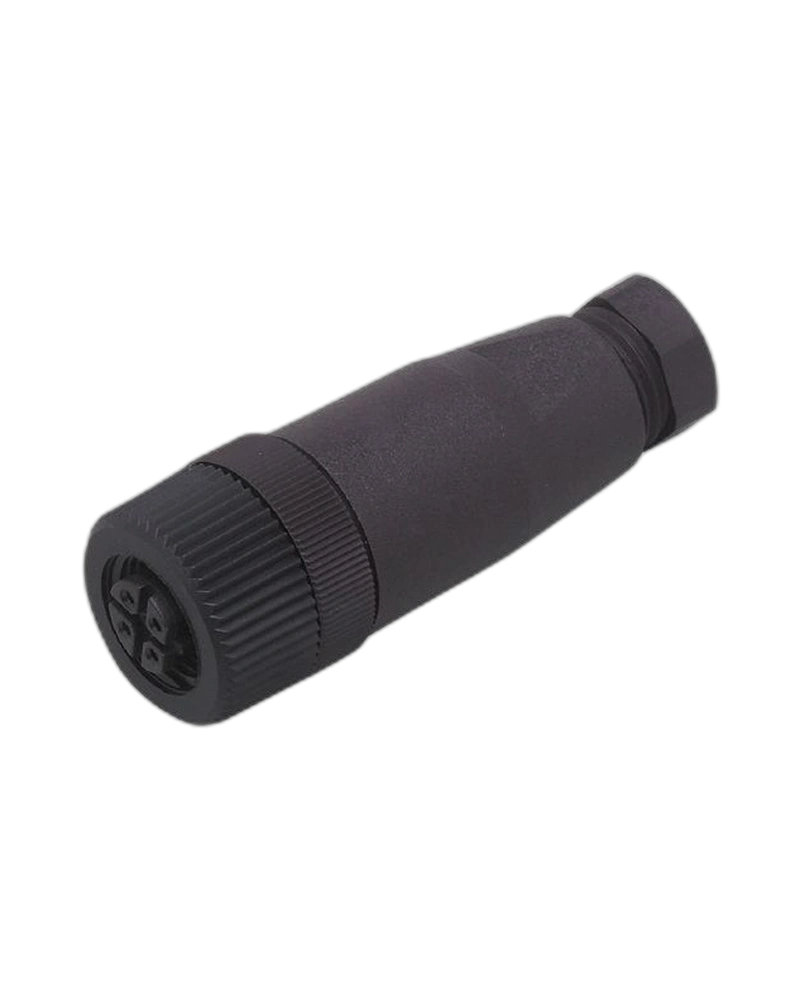

The IFM E10109 is a straight four-contact M12 wireable socket for industrial sensor connections. It supports AC/DC operation up to 250 V and a maximum current load of 4 A. The connector provides IP67 protection and operates from -40 to 85 °C. Its PA body and PA nut provide a compact construction. Screw terminals accommodate conductors up to 0.75 mm² and cable diameters from 4 to 6 mm.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10109 uses a straight M12 female connector. It has four contacts and B coding for compatible applications. The threaded interface provides secure mechanical connection. Screw terminals allow flexible field wiring. The connector is designed for cable installation.
The connector supports less than 250 V AC/DC and 4 A maximum current. Its terminals accept up to 0.75 mm² conductor cross-section. The connector has IP67 protection. The -40…85 °C operating range supports industrial installations. The design is suitable for sensor and automation wiring.
The body and nut are manufactured from PA. The connector weighs approximately 14.9–15.2 g depending on catalogue measurement. Its dimensions are approximately 18 × 18 × 46 mm. Cable diameters from 4 to 6 mm are supported. The connector is supplied as one piece.
E10109
SDOGH040PLSFKPG
M12 female socket
Straight design
4 contacts
B coding
250 V AC/DC
4 A current rating
IP67
-40…85 °C
PA body
PA nut
Screw terminals
≤0.75 mm²
4–6 mm cable diameter
Threaded locking
M12 sensor wiring
PROFIBUS-related connector applications
Industrial sensors
Factory automation
Machine control
Control panels
Automation equipment
Sensor interfaces
Production machinery
Field wiring
Straight geometry simplifies direct cable routing. The four-contact arrangement supports compatible M12 applications. Screw terminals simplify field termination. IP67 protection provides useful environmental protection. The broad temperature range supports industrial installations.
Use a compatible 4–6 mm cable. Terminate conductors securely in the screw terminals. Check the B-coded mating interface. Tighten the connector correctly. Inspect the cable entry seal periodically.
| Specification | E10109 |
|---|---|
| Product type | Wirable socket |
| Order number | E10109 |
| Model | SDOGH040PLSFKPG |
| Connector | M12 |
| Gender | Female |
| Contacts | 4 |
| Design | Straight |
| Coding | B |
| Electrical design | AC/DC |
| Operating voltage | <250 V AC/DC |
| Current rating | 4 A |
| Protection | IP67 |
| Temperature | -40…85 °C |
| Body material | PA |
| Nut material | PA |
| Weight | 14.9 g |
| Dimensions | 18 × 18 × 46 mm |
| Terminal type | Screw terminal |
| Conductor size | ≤0.75 mm² |
| Cable diameter | 4–6 mm |
| Cable mounting | Yes |
| Locking | Threaded |
| Sensor interface | M12 |
| Application | Industrial automation |
| Connector orientation | Straight |
| Contact coating | White-bronze coated |
| Field wiring | Yes |
| Pack quantity | 1 |
| Primary function | M12 cable connection |
