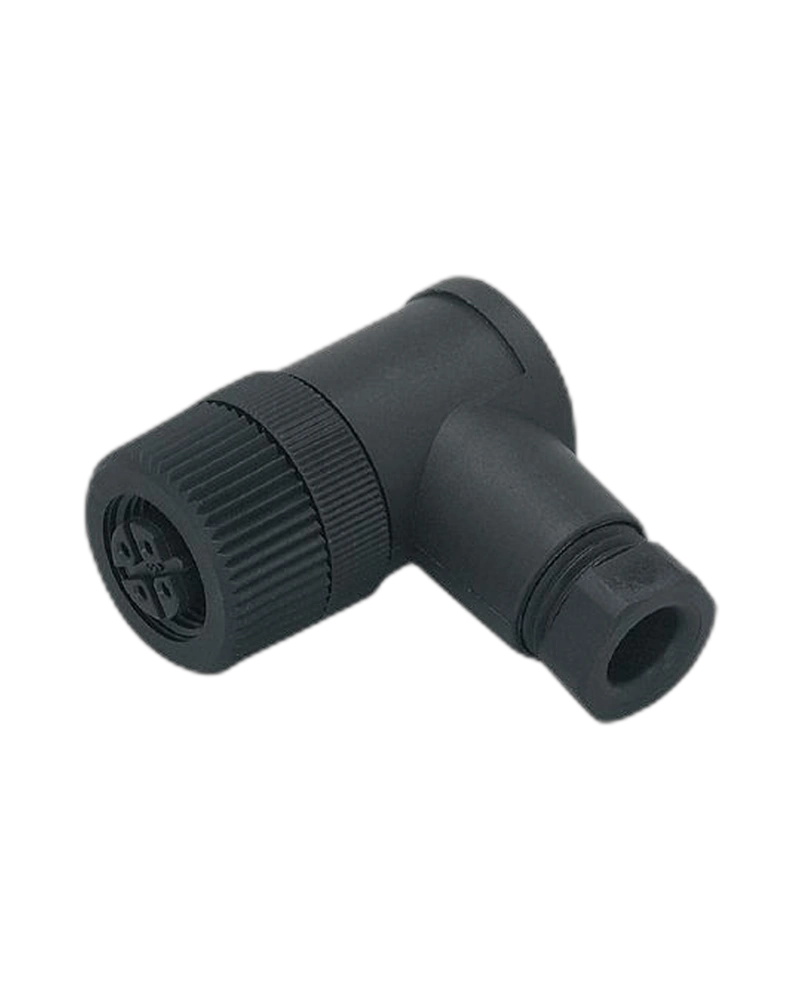

The IFM E10108 is an angled M12 wireable socket for industrial sensor connections. It is designed for sensors using M12 connectors and provides a field-wirable screw-terminal connection. The connector supports 250 V AC and has an IP67 protection rating. Its PBT body and PA nut provide a compact and robust construction. The -40 to 85 °C temperature range makes it suitable for industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10108 uses an angled M12 socket configuration. The angled body is useful where straight cable routing would require additional installation space. Screw terminals allow direct field termination. The connector is designed for compatible M12 sensor connections. Its PBT body provides a rigid and durable structure.
The connector supports up to 250 V AC. Its field-wirable design accepts conductors up to 0.5 mm². PG7 cable entry provides the intended cable interface. IP67 protection supports industrial environmental exposure. The connector is suitable for sensor wiring and machine automation.
The connector uses a PBT body and PA nut. Its weight is approximately 15 g. The angled design improves accessibility in restricted spaces. Screw terminals simplify field assembly. The connector is supplied as one piece.
E10108
SDOAH040PLSFKPG
M12 socket
Female connector
Angled design
4-contact arrangement
250 V AC
IP67
PBT body
PA nut
Wireable construction
Screw terminals
≤0.5 mm² conductors
PG7 cable entry
-40…85 °C
Approx. 15 g
Industrial sensor connector
M12 sensor connection
Proximity sensors
Position sensors
Factory automation
Machine control
Control cabinets
Industrial equipment
Sensor wiring
Packaging machinery
Production machines
The angled construction saves installation space. Field-wirable terminals provide flexible cable selection. PBT construction provides mechanical stability. IP67 protection improves environmental resistance. The connector is suitable for practical sensor installation and maintenance.
Use compatible M12 sensor interfaces. Prepare the cable according to the terminal requirements. Secure the conductors correctly. Ensure the sealing arrangement is properly installed. Check connector locking during maintenance.
| Specification | E10108 |
|---|---|
| Product type | Wirable socket |
| Order number | E10108 |
| Model | SDOAH040PLSFKPG |
| Connector | M12 |
| Gender | Female |
| Contacts | 4 |
| Design | Angled |
| Electrical design | AC |
| Operating voltage | 250 V AC |
| Protection | IP67 |
| Temperature | -40…85 °C |
| Body material | PBT |
| Nut material | PA |
| Weight | 15 g |
| Cable connection | Wireable |
| Terminal type | Screw terminals |
| Conductor size | ≤0.5 mm² |
| Cable entry | PG7 |
| Mounting style | Cable |
| Sensor interface | M12 |
| Connector orientation | Angled |
| Mechanical locking | Threaded |
| Application | Sensor connection |
| Industrial use | Automation |
| Housing construction | Moulded |
| Field termination | Yes |
| Pack quantity | 1 |
| Primary function | M12 sensor wiring |
| Product family | IFM wireable sockets |
