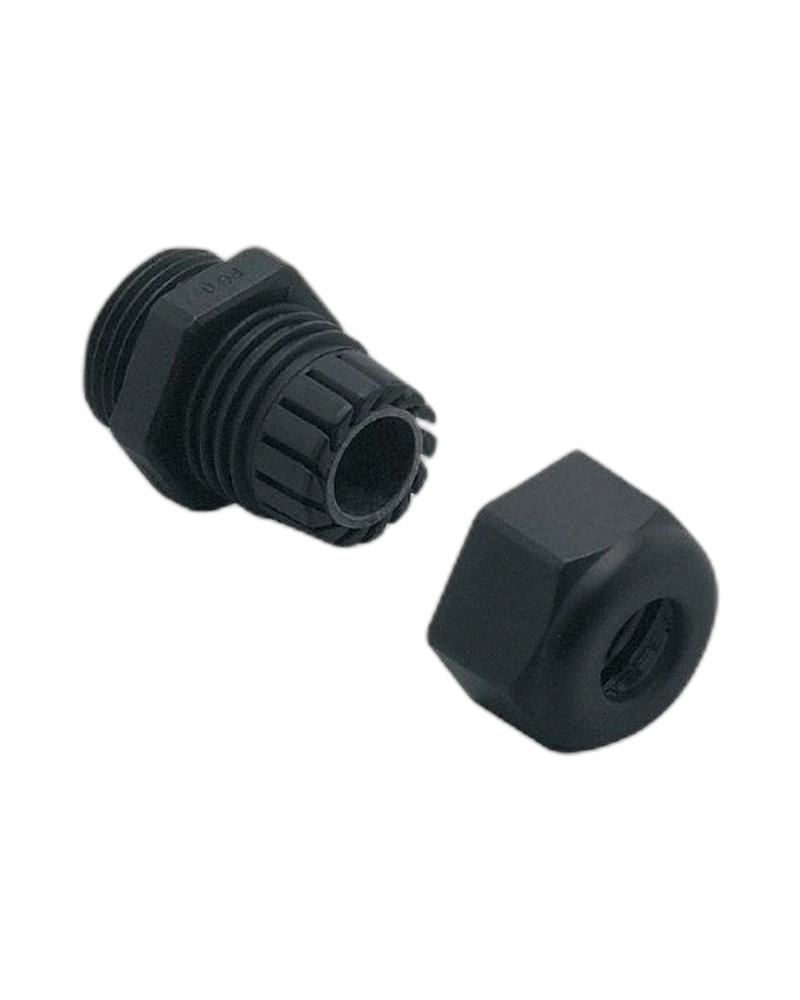

The IFM E10101 is a cable gland designed for secure sealing and strain relief of connection cables. It uses a 1/2-inch NPT thread for compatible mounting interfaces. The black PA housing and grey NBR seal provide reliable cable protection. The component helps prevent moisture and contamination from entering the connection area. Its -40 to 100 °C operating range supports demanding industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10101 provides permanent cable sealing at the equipment entry point. The NBR sealing element helps protect against moisture and dirt. The gland also provides mechanical strain relief for the connected cable. Its 1/2" NPT thread allows integration into compatible threaded housings. The design is intended for industrial cable-entry applications.
The gland uses a black PA housing with a grey NBR seal. Its length is approximately 40 mm. The component weighs approximately 17 g. The 1/2" NPT thread provides the mounting interface. One gland is supplied per package.
The operating temperature range is -40…100 °C. The sealing arrangement helps protect against moisture and soiling. The strain-relief design reduces mechanical loading on the cable termination. The compact construction is suitable for sensor and automation equipment. The gland is suitable for industrial connection technology.
E10101
CABLE GLAND 1/2" NPT
1/2" NPT thread
Black PA housing
Grey NBR seal
40 mm length
17 g weight
Cable sealing
Strain relief
Moisture protection
Soiling protection
-40…100 °C
Industrial construction
Threaded installation
One-piece pack
Sensor cable entry
Control cabinets
Industrial junction boxes
Automation equipment
Machine wiring
Field devices
Connection housings
Factory automation
Cable protection
Electrical equipment
The gland provides both sealing and strain relief. The NBR seal helps protect internal equipment from contamination. PA construction keeps the component lightweight. The wide temperature range supports industrial environments. The 1/2" NPT thread simplifies compatible equipment installation.
Select a cable compatible with the gland sealing range. Install the gland into a matching 1/2" NPT threaded opening. Tighten the gland securely without damaging the cable. Ensure the sealing element is correctly compressed. Inspect the seal during equipment maintenance.
| Specification | E10101 |
|---|---|
| Product type | Cable gland |
| Order number | E10101 |
| Model | CABLE GLAND 1/2" NPT |
| Thread | 1/2" NPT |
| Housing material | PA |
| Housing colour | Black |
| Seal material | NBR |
| Seal colour | Grey |
| Length | 40 mm |
| Weight | 17 g |
| Function | Cable sealing |
| Secondary function | Strain relief |
| Moisture protection | Yes |
| Soiling protection | Yes |
| Operating temperature | -40…100 °C |
| Installation type | Threaded |
| Cable entry | Threaded gland |
| Material type | Polyamide |
| Seal construction | NBR |
| Application | Industrial automation |
| Equipment use | Connection housings |
| Mechanical function | Cable retention |
| Environmental function | Sealing |
| Mounting thread system | NPT |
| Thread size | 1/2 inch |
| Accessory type | Cable-entry accessory |
| Supply quantity | 1 |
| Installation location | Cable entry |
| Primary function | Cable sealing |
| Product family | IFM cable glands |
