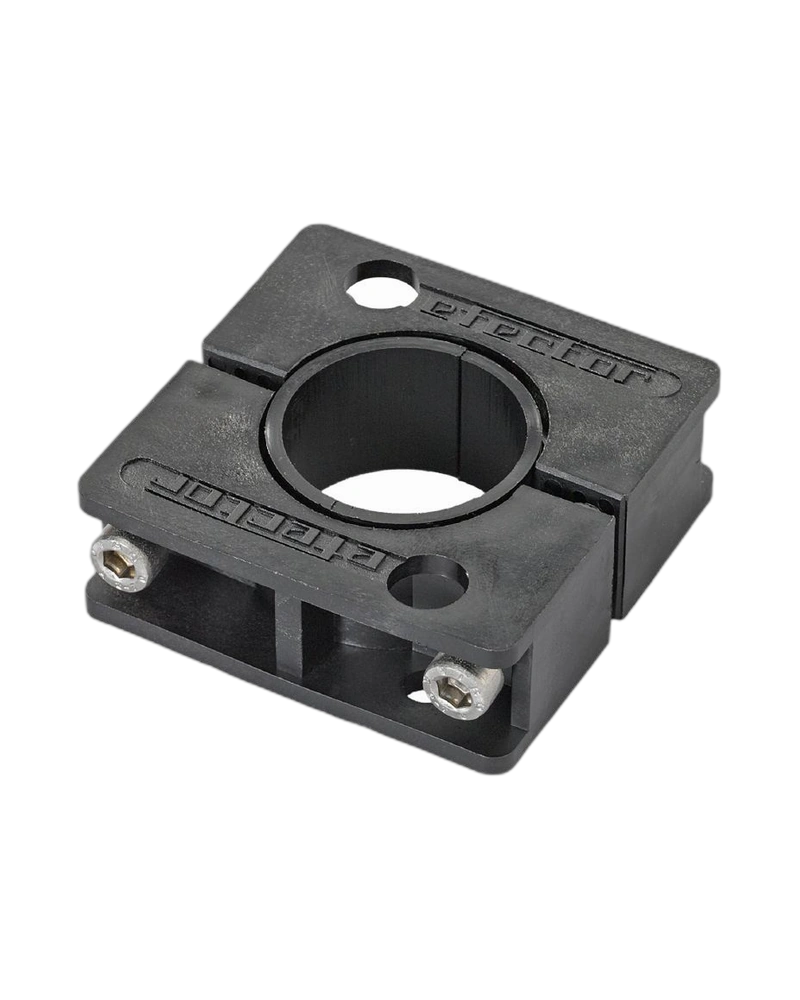

The IFM E10077 is a mounting clamp designed for cylindrical M30 sensor installation. It incorporates a reducing bush that adapts a 34 mm clamp opening to 30 mm sensor types. The clamp is manufactured from PBT for a robust and lightweight construction. Two M5 × 50 mm socket-head screws are supplied for secure fixing. Its 56 × 58 × 20 mm construction provides stable sensor mounting.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E10077 is designed around a 34 mm internal mounting diameter. A reducing bush provides compatibility with Ø30 mm sensor bodies. The PBT construction offers good mechanical stability. The clamp uses two fixing screws for secure retention. This design is useful where fast sensor mounting is required.
The mounting clamp weighs approximately 56.8 g. Its overall dimensions are 56 × 58 × 20 mm. The internal diameter is 34 mm before the reducing arrangement. Two M5 × 50 mm socket-head screws are supplied. Two spring washers are included with the mounting hardware.
The reducing bush provides a controlled interface for M30 sensors. The clamp allows quick mechanical fixing without modifying the sensor housing. The two-screw design provides stable retention. PBT construction offers a practical balance of strength and weight. It is suitable for industrial sensor mounting.
E10077
MOUNTING CLAMP II
For M30 sensor types
Ø34 mm clamp
Ø30 mm reducing arrangement
PBT material
56 × 58 × 20 mm
56.8 g weight
Two M5 × 50 screws
Two spring washers
Reducing bush
Quick sensor fixing
Mechanical retention
Industrial design
One-piece pack
M30 proximity sensors
Cylindrical sensors
Factory automation
Machine building
Conveyor equipment
Packaging machinery
Production lines
Sensor positioning
Industrial machines
Automation equipment
The reducing bush allows Ø30 mm sensors to be mounted securely. The PBT construction provides robust mechanical support. Supplied screws simplify installation. The clamp can be removed and repositioned easily. Its defined geometry helps maintain sensor alignment.
Install the clamp on a rigid surface. Insert the compatible sensor through the reducing section. Align the sensor correctly before tightening. Use the supplied screws and spring washers. Inspect the clamp for cracks or loose hardware during maintenance.
| Specification | E10077 |
|---|---|
| Product type | Mounting clamp |
| Order number | E10077 |
| Model | MOUNTING CLAMP II |
| Sensor type | Cylindrical |
| Compatible sensor | M30 |
| Clamp inside diameter | 34 mm |
| Reducing diameter | 30 mm |
| Housing material | PBT |
| Dimensions | 56 × 58 × 20 mm |
| Weight | 56.8 g |
| Fixing screws | 2 × M5 × 50 mm |
| Spring washers | 2 |
| Reducing bush | Yes |
| Mounting method | Clamp |
| Mechanical function | Sensor fixation |
| Sensor retention | Mechanical |
| Installation | Surface mounting |
| Application | Sensor mounting |
| Industrial use | Automation |
| Material type | PBT |
| Construction | Reducing clamp |
| Fixing points | 2 |
| Mounting accessory | Yes |
| Sensor positioning | Fixed |
| Installation benefit | Quick fixing |
| Replacement | Easy |
| Pack quantity | 1 |
| Primary function | M30 sensor mounting |
| Product family | IFM accessories |
