The IFM E1004A is a specialized wirable socket designed for connection to certified intrinsically safe circuits. It features gold-plated contacts and a PBT housing for robust industrial use. The connector has IP67 protection and operates in an ambient temperature range of -20…80 °C. Its terminals accept conductors up to 2.5 mm² with cable sheath diameters from 6–8 mm. The connector carries ATEX approval for specified hazardous-area applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E1004A is designed for connection to certified intrinsically safe circuits. Its ATEX marking includes II 1G Ex ia IIC T6 Ga and II 1D/II 1D Ex ia classifications shown in the product documentation. The connector is suitable for applications requiring approved intrinsically safe connection technology. Its gold-plated contacts provide dependable electrical connection. The design is intended for controlled hazardous-area installations.
The socket uses a PBT housing material. Its dimensions are approximately 59 × 29 × 38.5 mm. The connector weighs approximately 53.5 g. The PA nut provides mechanical fastening. The terminals accept conductors up to 2.5 mm².
The connector provides IP67 protection. The operating temperature range is -20…80 °C. The connector is designed for hazardous-area connection applications. Its PBT construction provides mechanical robustness. The certified design supports use where intrinsically safe circuits are required.

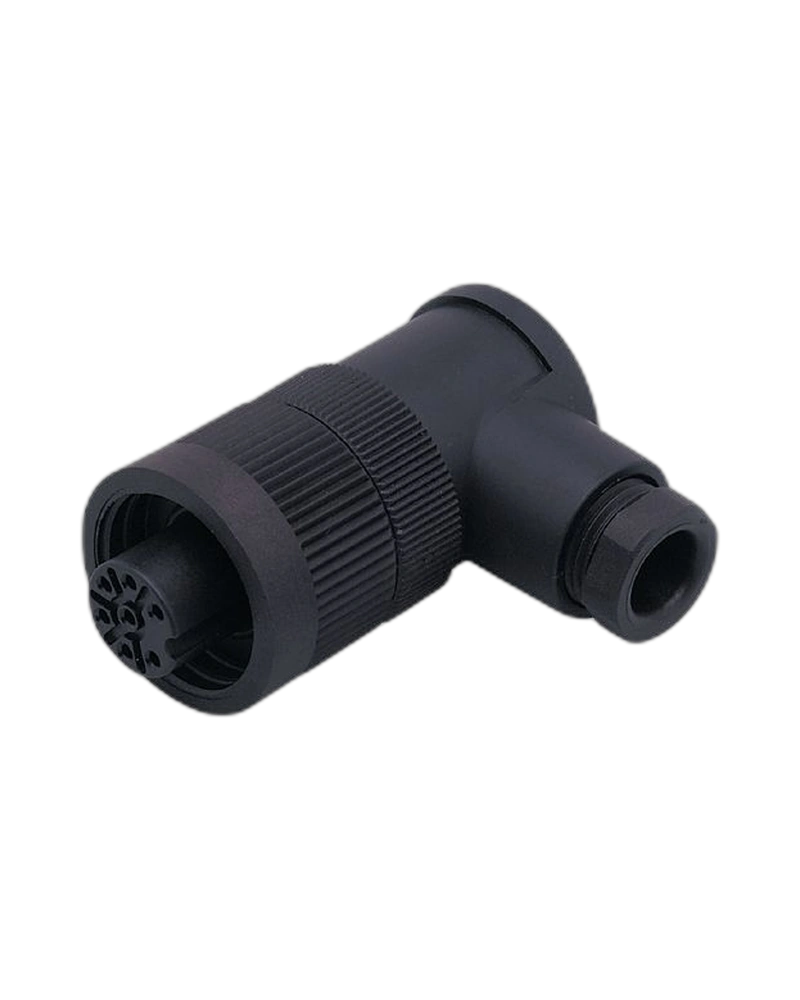

E1004A
SDOAL070PLNFKPG/1D/1G
Wirable socket
Gold-plated contacts
PBT housing
PA nut
IP67
-20…80 °C
59 × 29 × 38.5 mm
Approx. 53.5 g
Terminals
≤2.5 mm² conductor
6–8 mm cable sheath
Intrinsically safe circuit connection
ATEX approval
BVS 05 ATEX E106
II 1G Ex ia IIC T6 Ga
II 1D Ex ia IIIB T85°C Da
II 1D Ex ia IIIC T85°C Da
Industrial automation
Hazardous-area instrumentation
Intrinsically safe circuits
Process automation
Chemical plants
Oil and gas facilities
Industrial measurement systems
Hazardous production areas
Explosion-protected instrumentation
Process control panels
Sensor connection systems
The certified design supports intrinsically safe circuit connections. Gold-plated contacts provide reliable electrical contact. IP67 protection supports industrial environmental conditions. The PBT housing provides mechanical strength. The wireable terminals allow suitable field cable termination.
Use the connector only within its approved electrical and hazardous-area parameters. Follow the applicable ATEX installation requirements. Use suitable cable dimensions. Ensure terminals are correctly tightened. Maintain the required sealing and mechanical integrity.
| Specification | E1004A Details |
|---|---|
| Product type | Wirable socket |
| Order number | E1004A |
| Model | SDOAL070PLNFKPG/1D/1G |
| Connector type | Wirable socket |
| Housing material | PBT |
| Nut material | PA |
| Contact finish | Gold-plated |
| Protection rating | IP67 |
| Ambient temperature | -20…80 °C |
| Dimensions | 59 × 29 × 38.5 mm |
| Weight | 53.5 g |
| Terminal connection | Screw/terminal connection |
| Conductor capacity | ≤2.5 mm² |
| Cable sheath diameter | 6–8 mm |
| Application type | Intrinsically safe circuit |
| Hazardous-area use | Yes |
| Approval | BVS 05 ATEX E106 |
| ATEX marking 1 | II 1G Ex ia IIC T6 Ga |
| ATEX marking 2 | II 1D Ex ia IIIB T85°C Da |
| ATEX marking 3 | II 1D Ex ia IIIC T85°C Da |
| Maximum total voltage | 60 V peak |
| Contact arrangement | Product-specific circular connection |
| Mounting | Cable termination |
| Housing type | Moulded PBT |
| Electrical connection | Terminal |
| Industrial use | Process automation |
| Pack quantity | 1 |
| Primary function | Intrinsically safe connection |
| Installation category | Hazardous-area instrumentation |
| Connector family | IFM wireable socket |
